Troubleshooting

DTC P0120 THROTTLE/PEDAL POSITION SENSOR/SWITCH "A" CIRCUIT MALFUNCTION

CIRCUIT DESCRIPTION

DTC Detecting Condition:

Throttle position sensor is mounted on the throttle body and it has 2 sensors to detect the throttle opening angle and the malfunction of the throttle position sensor's own.

The voltage applied to terminals VTA1 and VTA2 of the ECM changes between 0 V and 5 V in proportion to the opening angle of the throttle valve.

The ECM judges the current opening angle of the throttle valve from these signals input from terminals VTA1 and VTA2, and the ECM controls the throttle motor to make the throttle valve angle properly in response to the driving condition.

If this DTC is stored, the ECM cuts the power down for the throttle motor, and the throttle valve is fully closed by the return spring.






HINT: After confirming DTC P0120, use the OBD II scan tool or hand-held tester to confirm the throttle valve opening percentage and closed throttle position switch condition.

Wiring Diagram:

INSPECTION PROCEDURE

HINT: Read freeze frame data using hand-held tester or OBD II scan tool, as freeze frame data records the engine conditions when a malfunction is detected. When troubleshooting, it is useful for determining whether the vehicle was running or stopped, the engine was warmed up or not, the air-fuel ratio was lean or rich, etc. at the time of the malfunction.

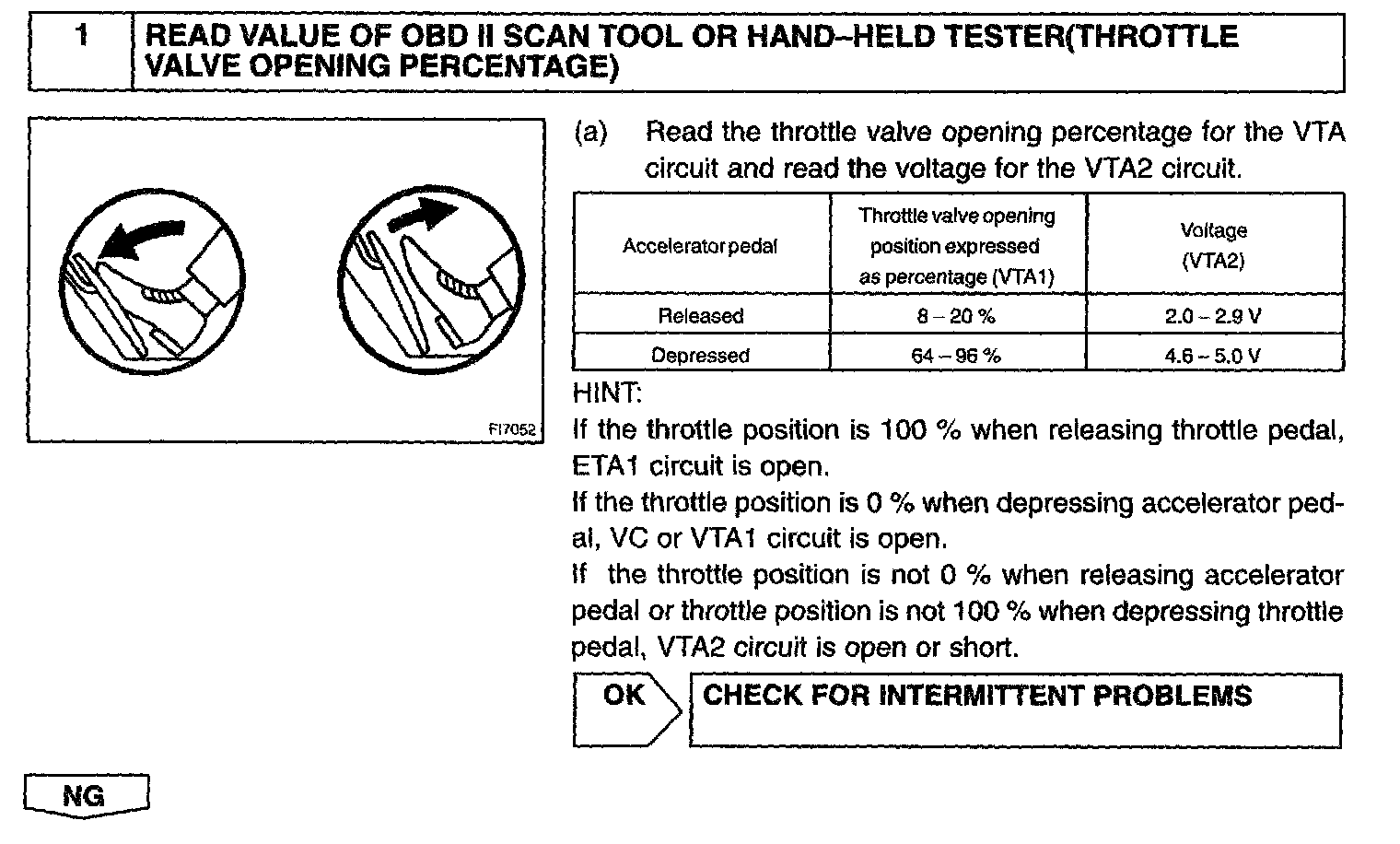

Step 1:

Step 2 - 4:

Step 5:

Hand-held tester

Step 1:

Step 2 - 3:

Step 4:

OBD II scan tool (excluding Hand-held Tester)

CHECK FOR INTERMITTENT PROBLEMS

Hand-held tester only:
By putting the vehicle's ECM in the check mode, 1 trip detection logic is possible instead of 2 trip detection logic and sensitivity to detect open circuits is increased. This makes it easier to detect intermittent problems.

1. Clear the DTC.
2. Set the check mode.
3. Perform a simulation test.
4. Check the connector and terminal.
5. Handle the connector.
