DTC 64 SEAT HEATER CIRCUIT (PASSENGER SIDE)
Detection Item:
CIRCUIT DESCRIPTION

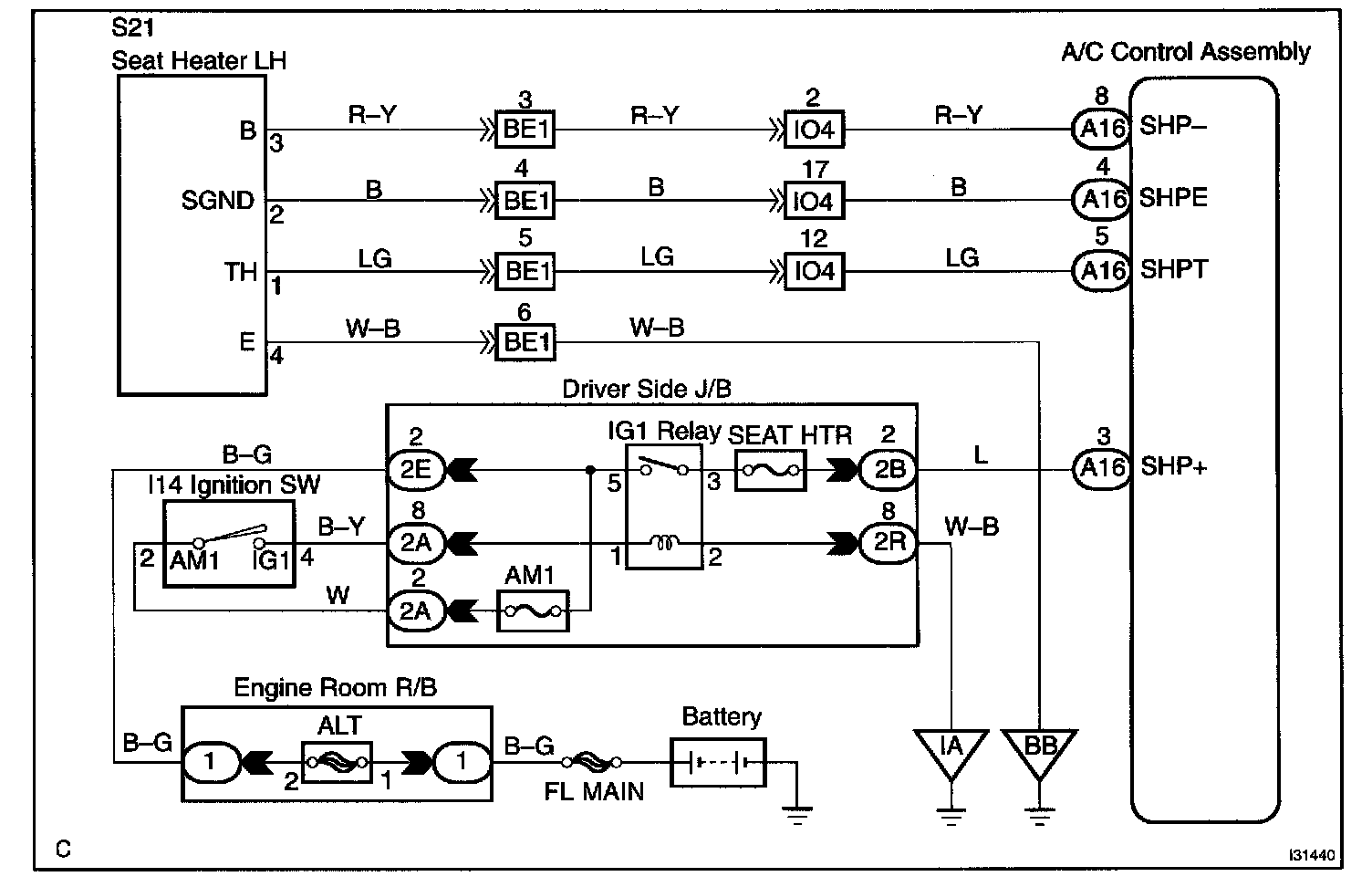

Wiring Diagram:

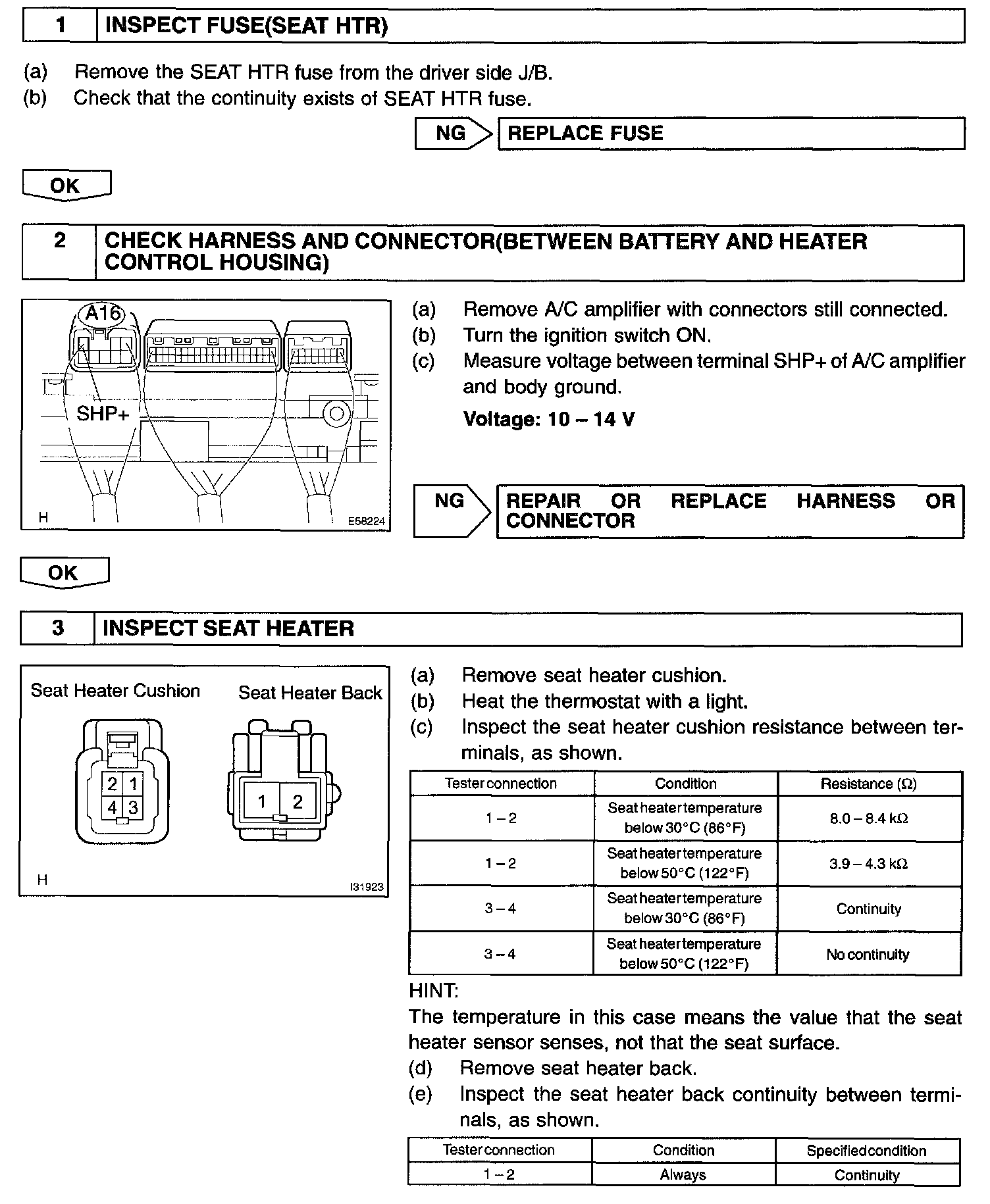

Step 1 - 3:
Step 3 (Continued) - 5:
INSPECTION PROCEDURE
