DTC 41

DTC 41 AIR MIX DAMPER CONTROL SERVOMOTOR CIRCUIT (PASSENGER SIDE)

CIRCUIT DESCRIPTION

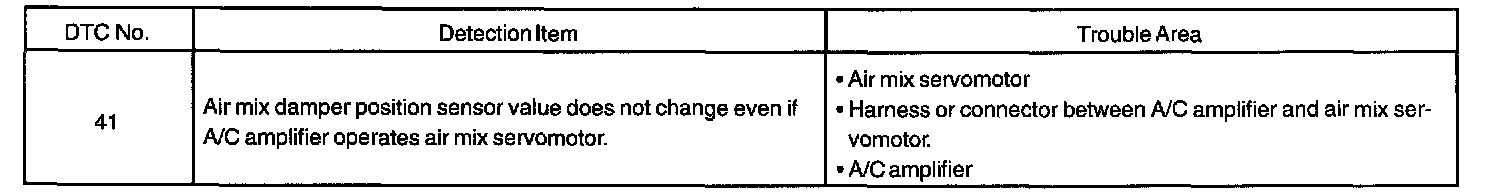

Detection Item:

This air mix servomotor is controlled by the A/C amplifier and moves the air mix damper to the desired position.

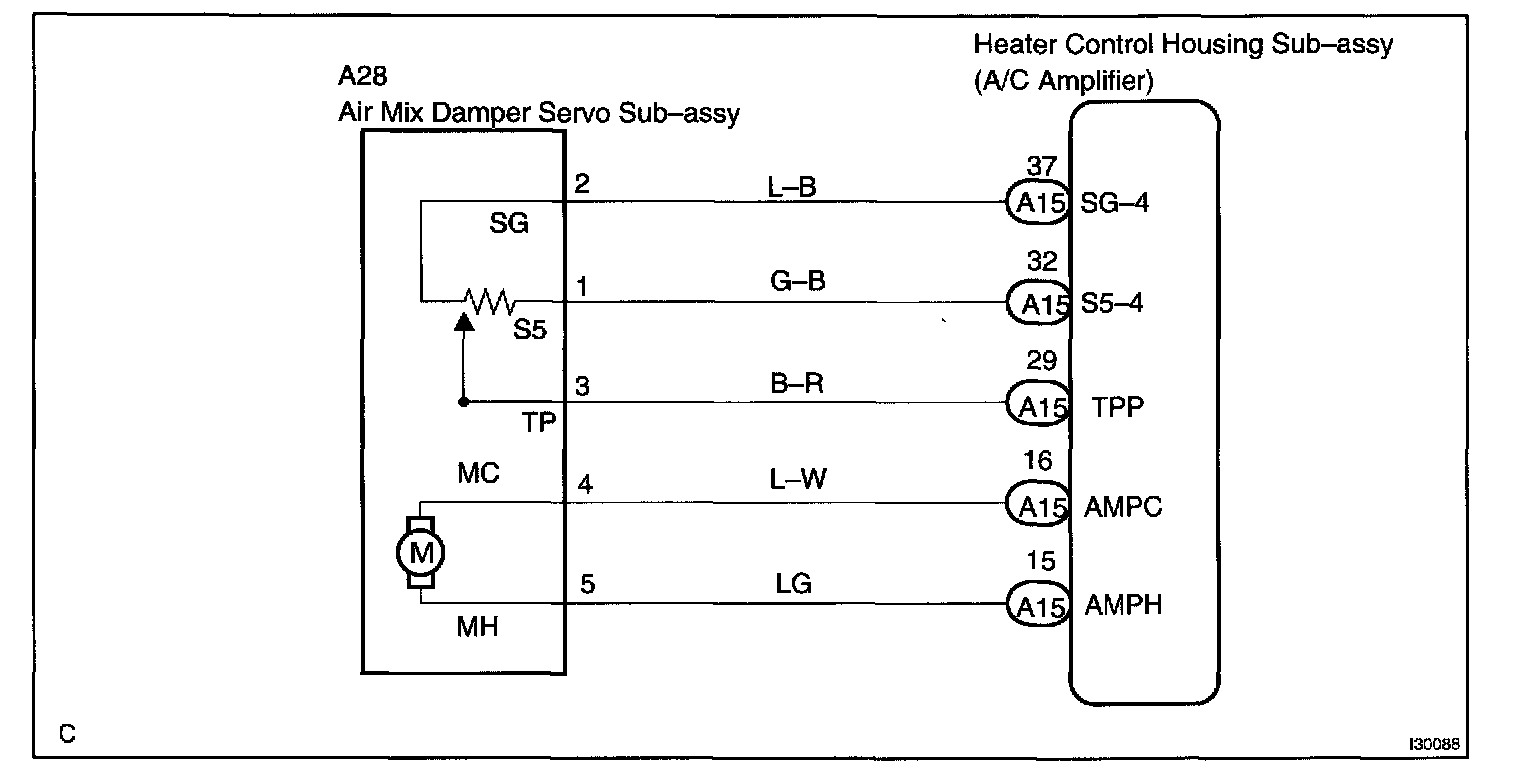

Wiring Diagram:

Step 1:

Step 2 - 3:

INSPECTION PROCEDURE
