DTC 32

DTC 32 AIR INLET DAMPER POSITION SENSOR CIRCUIT

CIRCUIT DESCRIPTION

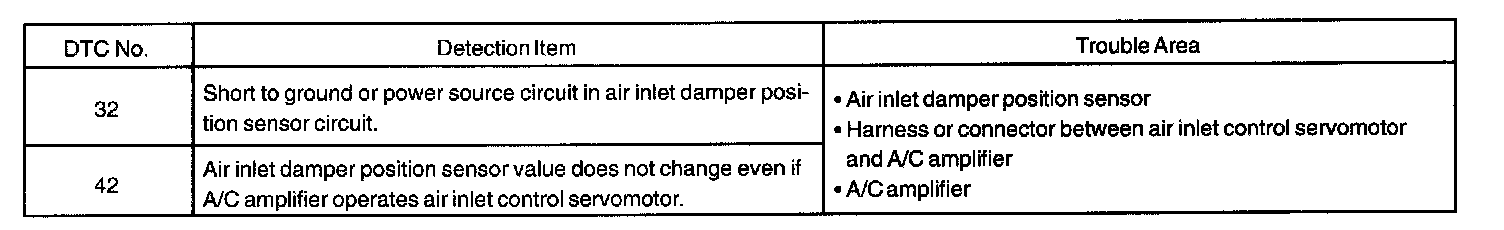

Detection Item:

This sensor detects the position of the air inlet damper and sends the appropriate signals to the A/C amplifier. The position sensor is built into the air inlet control servomotor.

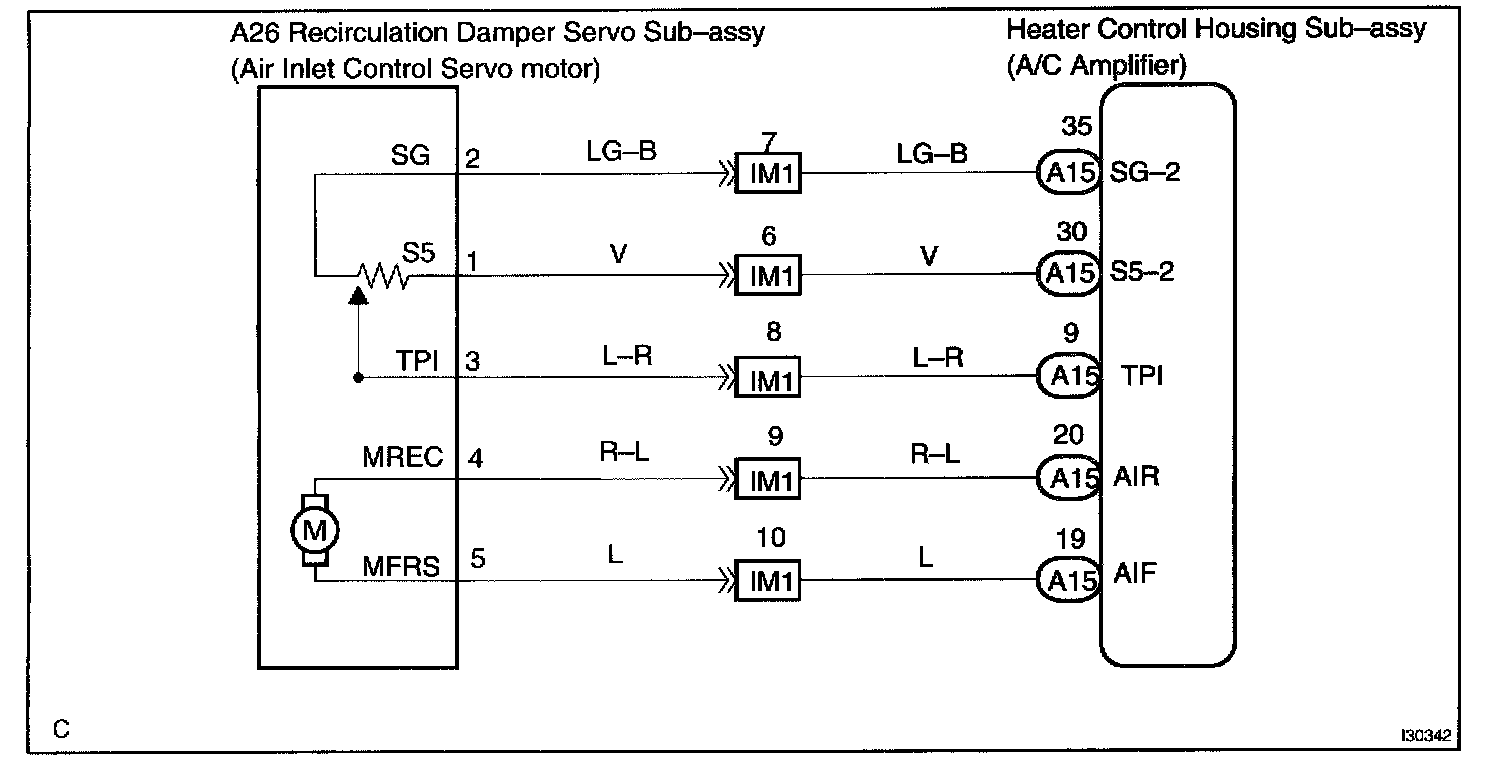

Wiring Diagram:

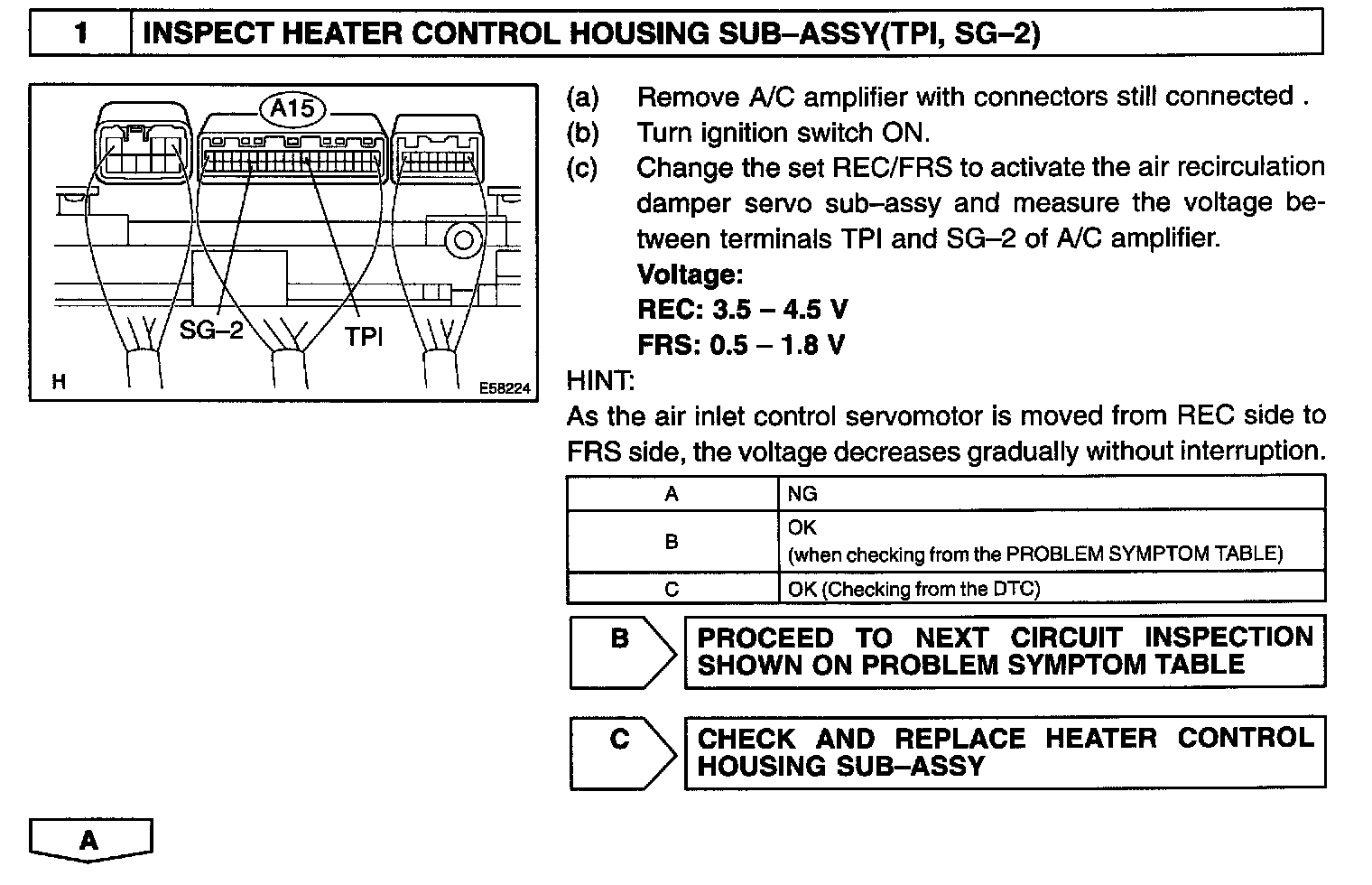

Step 1:

Step 2 - 3:

INSPECTION PROCEDURE
