DTC 21

DTC 21 SOLAR SENSOR CIRCUIT (PASSENGER SIDE)

CIRCUIT DESCRIPTION

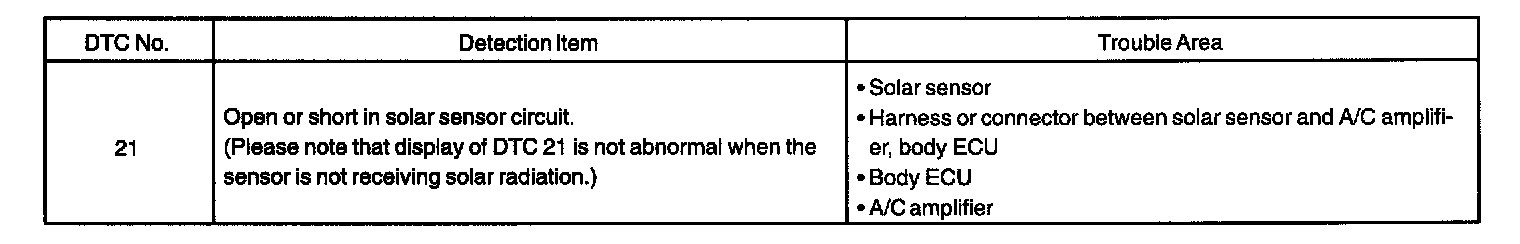

Detection Item:

A photo diode in the solar sensor detects solar radiation and sends signals to the A/C amplifier.

Wiring Diagram:

Step 1 - 2:

Step 3 - 4:

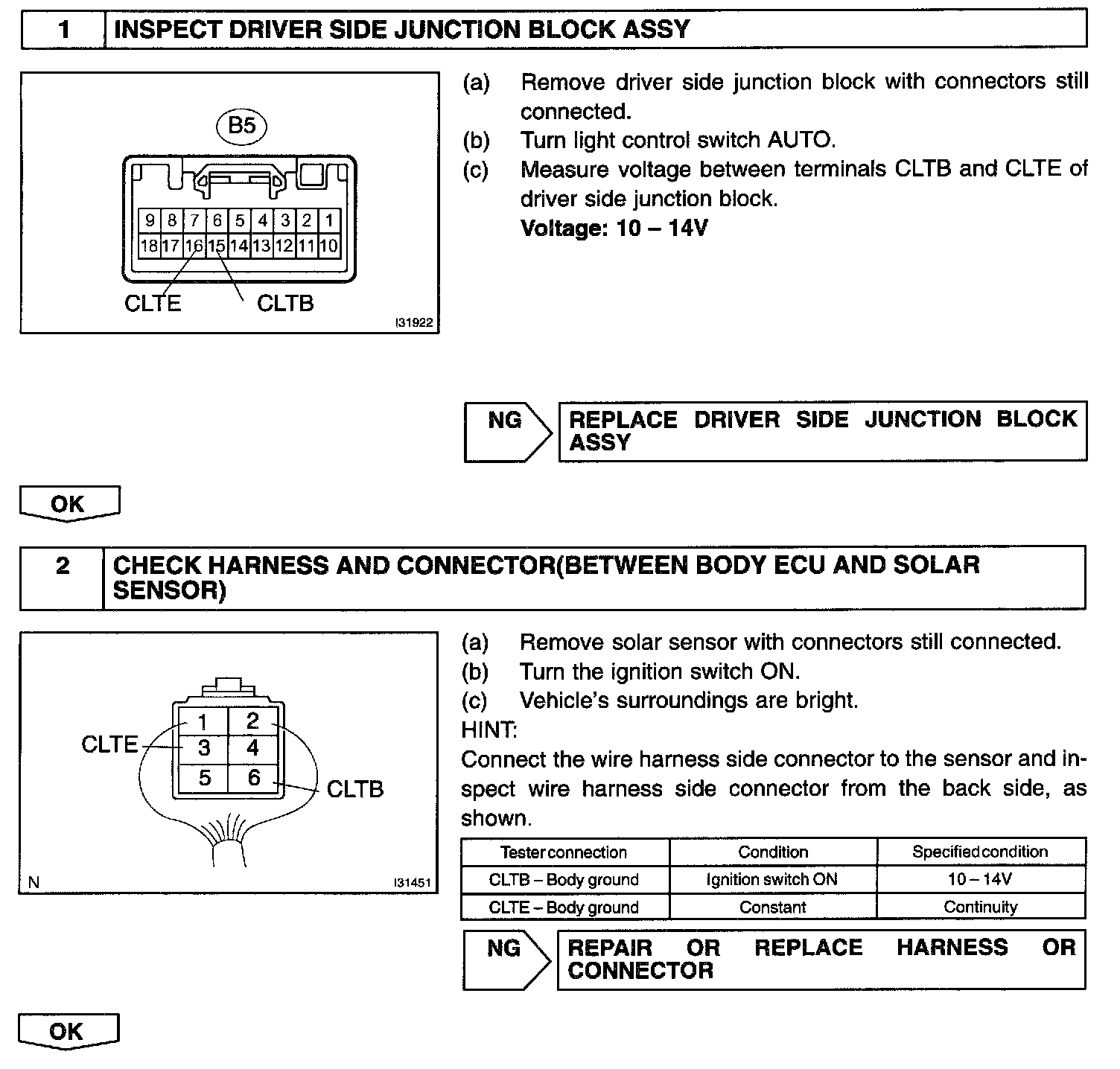

INSPECTION PROCEDURE
