DTC 13

DTC 13 EVAPORATOR TEMPERATURE SENSOR CIRCUIT

CIRCUIT DESCRIPTION

Detection Item:

This sensor detects the temperature inside the cooling unit and sends the appropriate signals to the A/C amplifier.

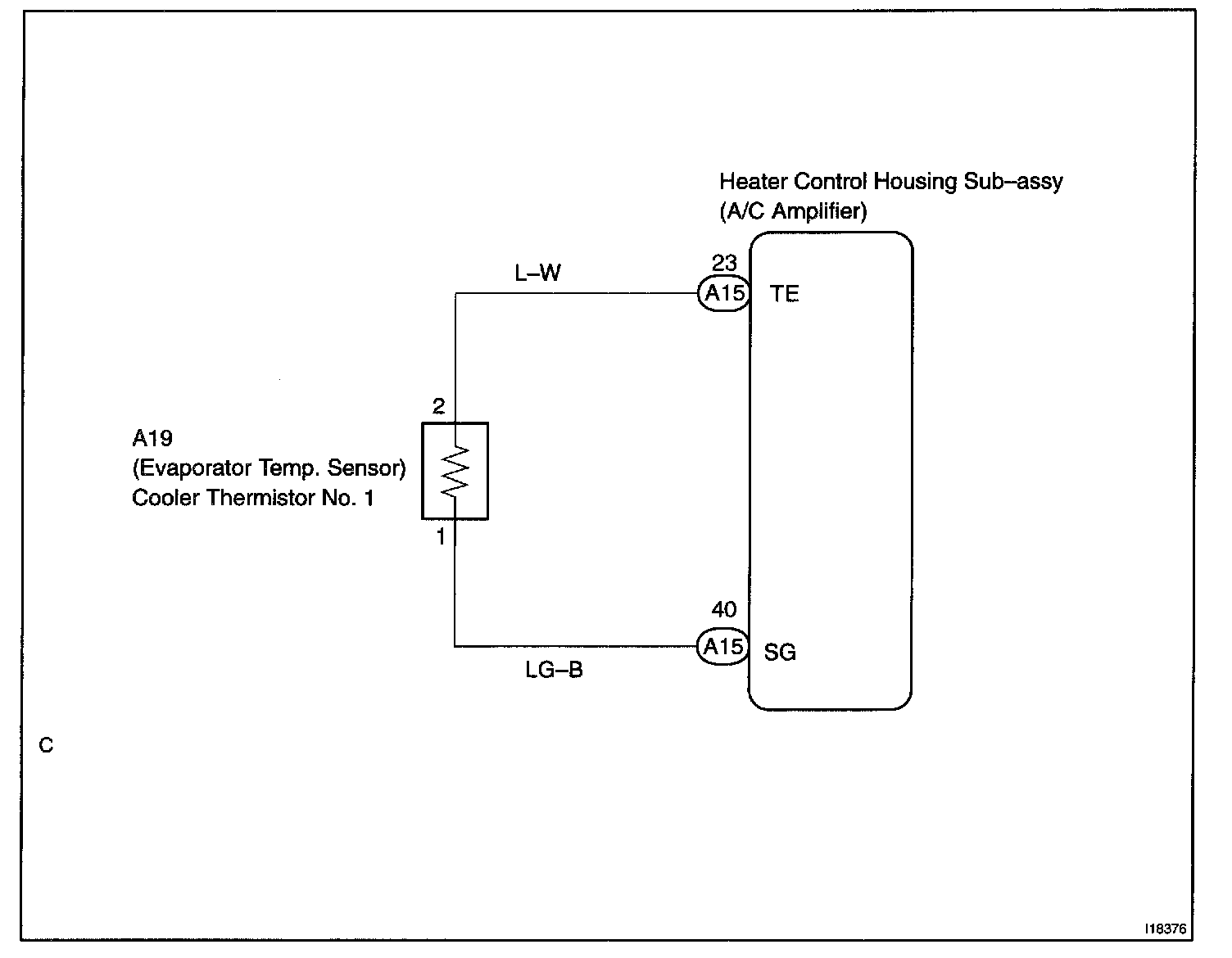

Wiring Diagram:

Step 1:

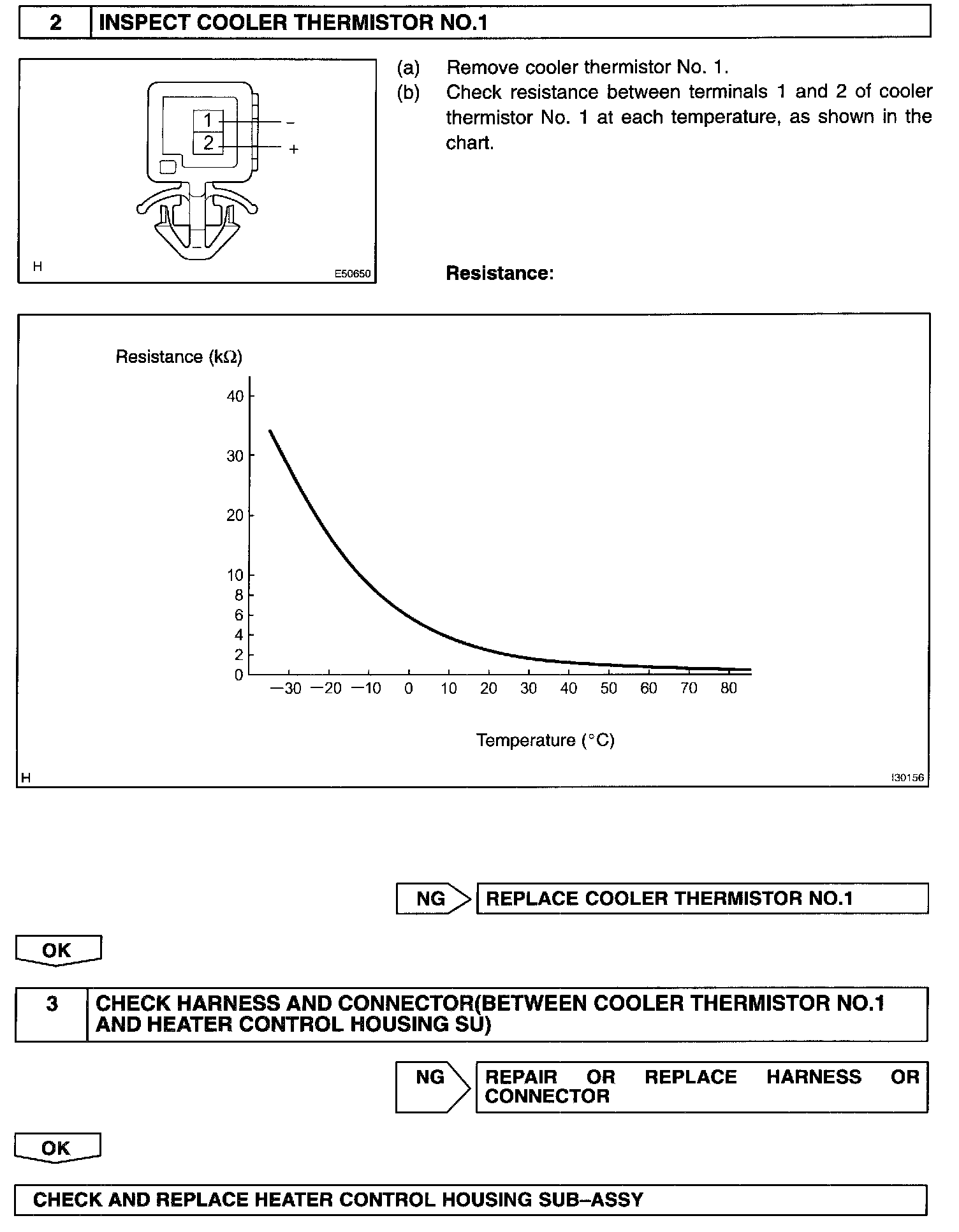

Step 2 - 3:

INSPECTION PROCEDURE
