Home >> Lexus >> 2002 >> ES 300 V6-3.0L (1MZ-FE) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Diagnostic Trouble Code Descriptions >> Power Windows

Power Windows

DIAGNOSTIC TROUBLE CODE CHART

B1231 - B1232:

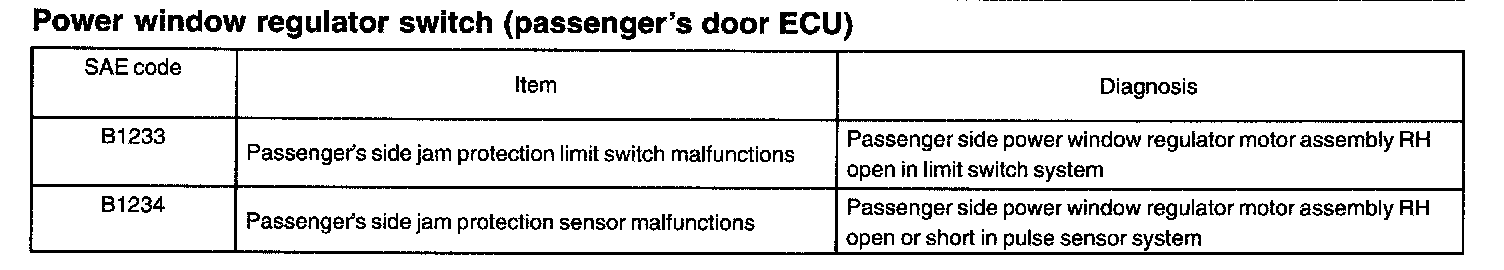

B1233 - B1234:




1. DOOR ECU




2. BODY ECU (Data monitor of switch signal by DTC check)
