ABS W/EBD System
ABS W/EBD System
DTC C1249/49 OPEN CIRCUIT IN STOP LIGHT SWITCH CIRCUIT
DTC Detection Condition:
CIRCUIT DESCRIPTION

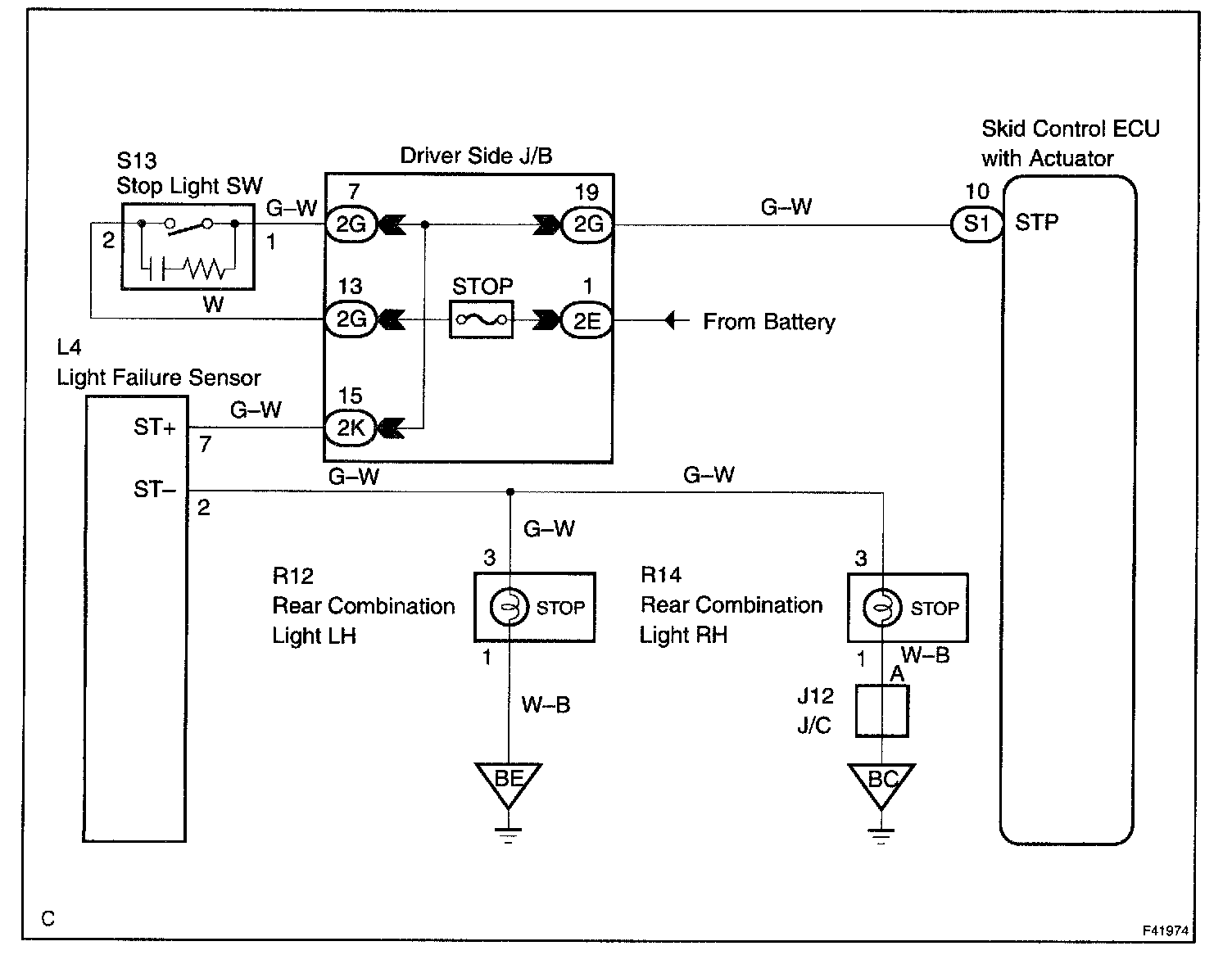

Wiring Diagram:

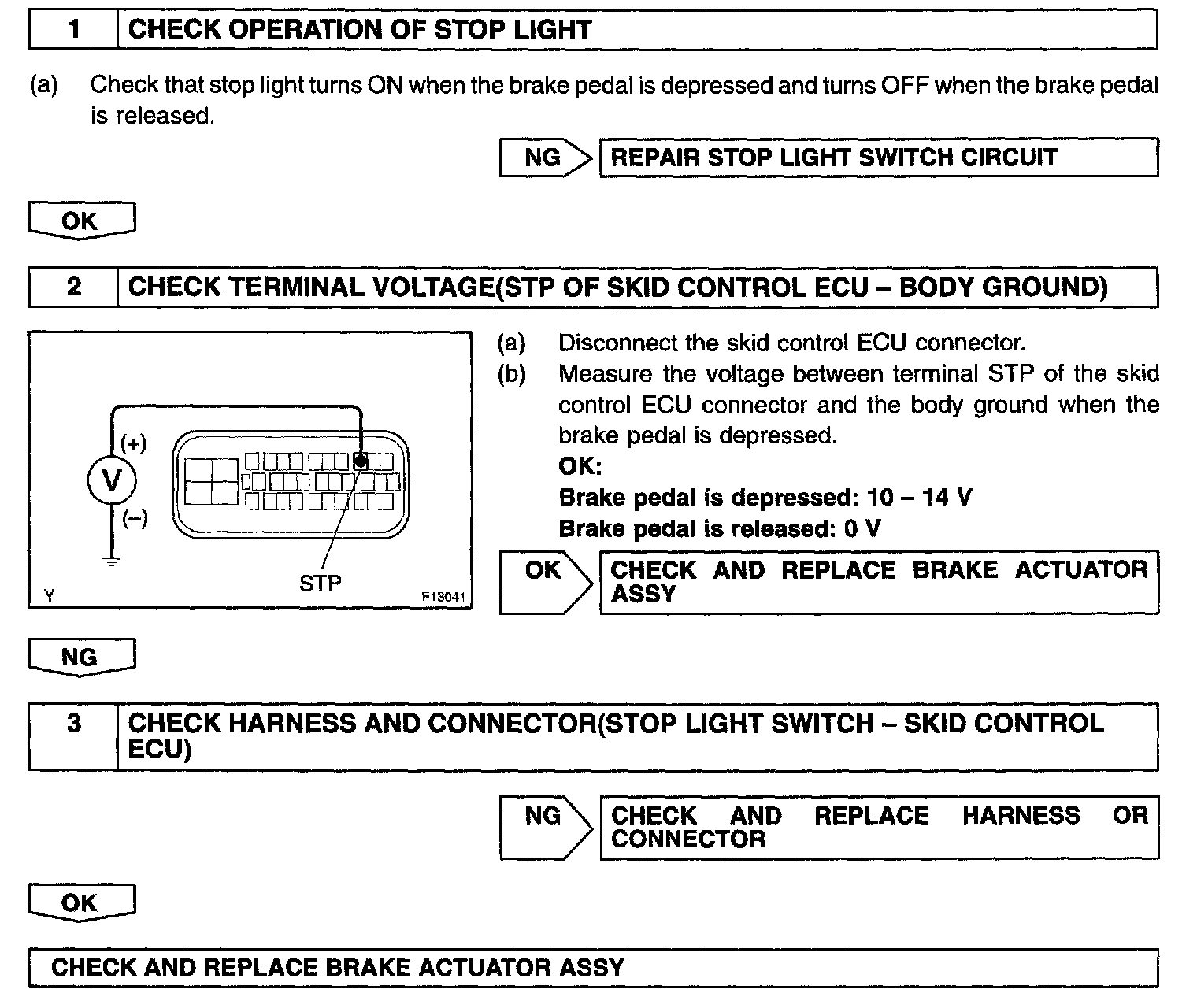

Step 1 - 3:
INSPECTION PROCEDURE
