ABS W/EBD & BA & TRAC & VSC System
ABS W/EBD & BA & TRAC & VSC System
DTC C1249 OPEN CIRCUIT IN STOP LIGHT SWITCH CIRCUIT

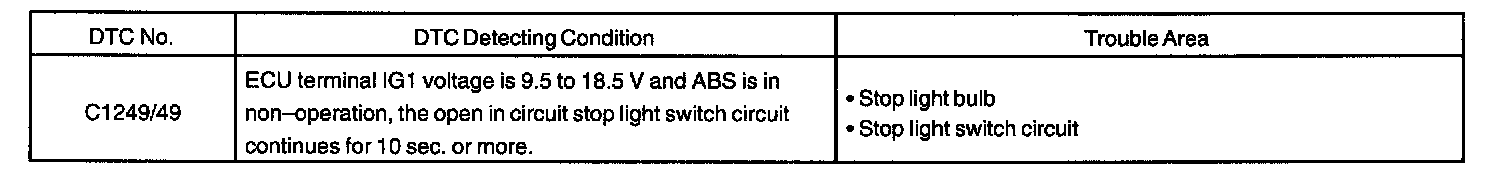

DTC Detecting Condition:
CIRCUIT DESCRIPTION

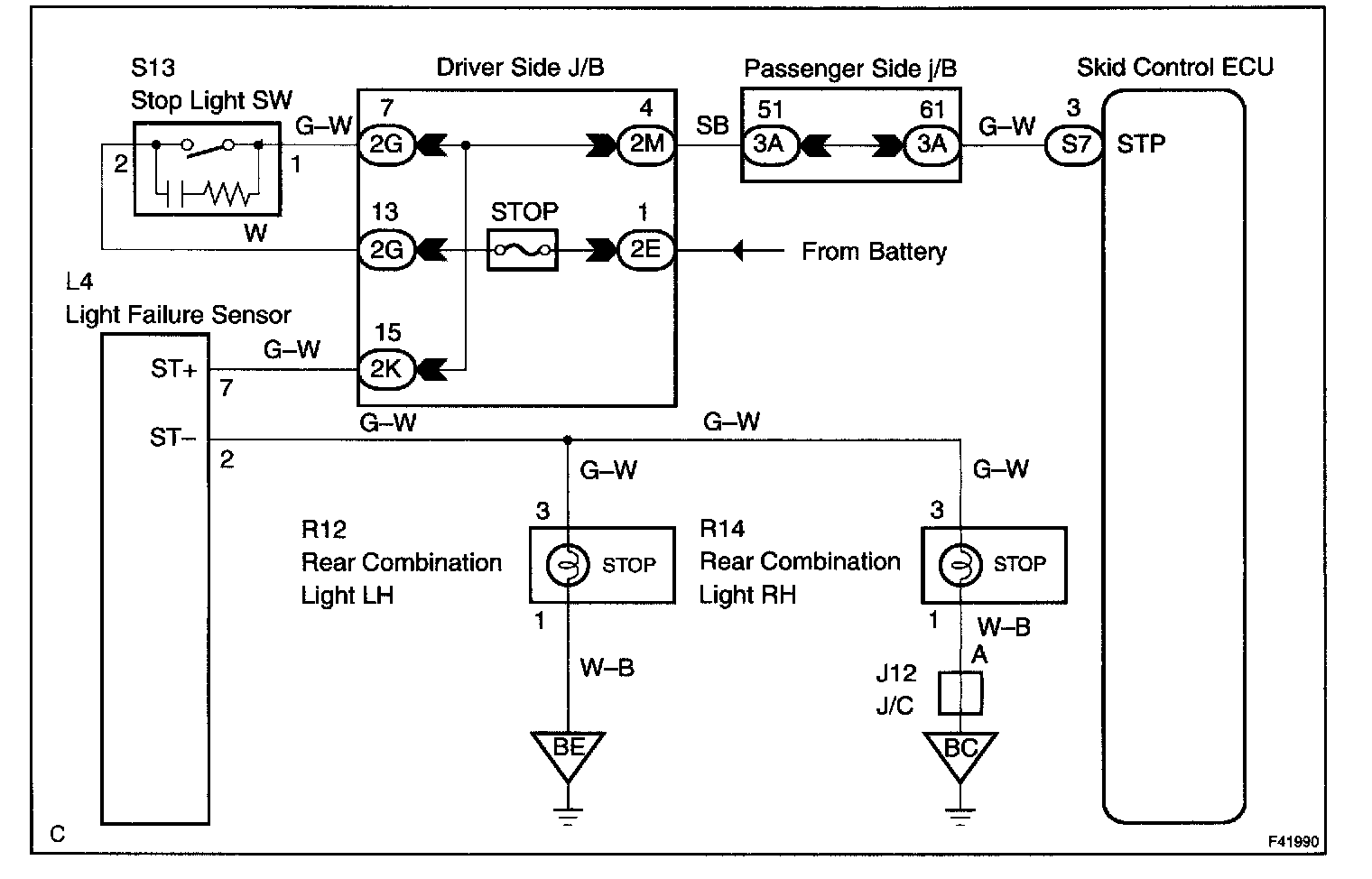

Wiring Diagram:
Step 1 - 4:
INSPECTION PROCEDURE
