ABS W/EBD & BA & TRAC & VSC System

DTC C1241 LOW BATTERY POSITIVE VOLTAGE OR ABNORMALLY HIGH BATTERY POSITIVE VOLTAGE

DTC Detection Condition:




CIRCUIT DESCRIPTION

Wiring Diagram:

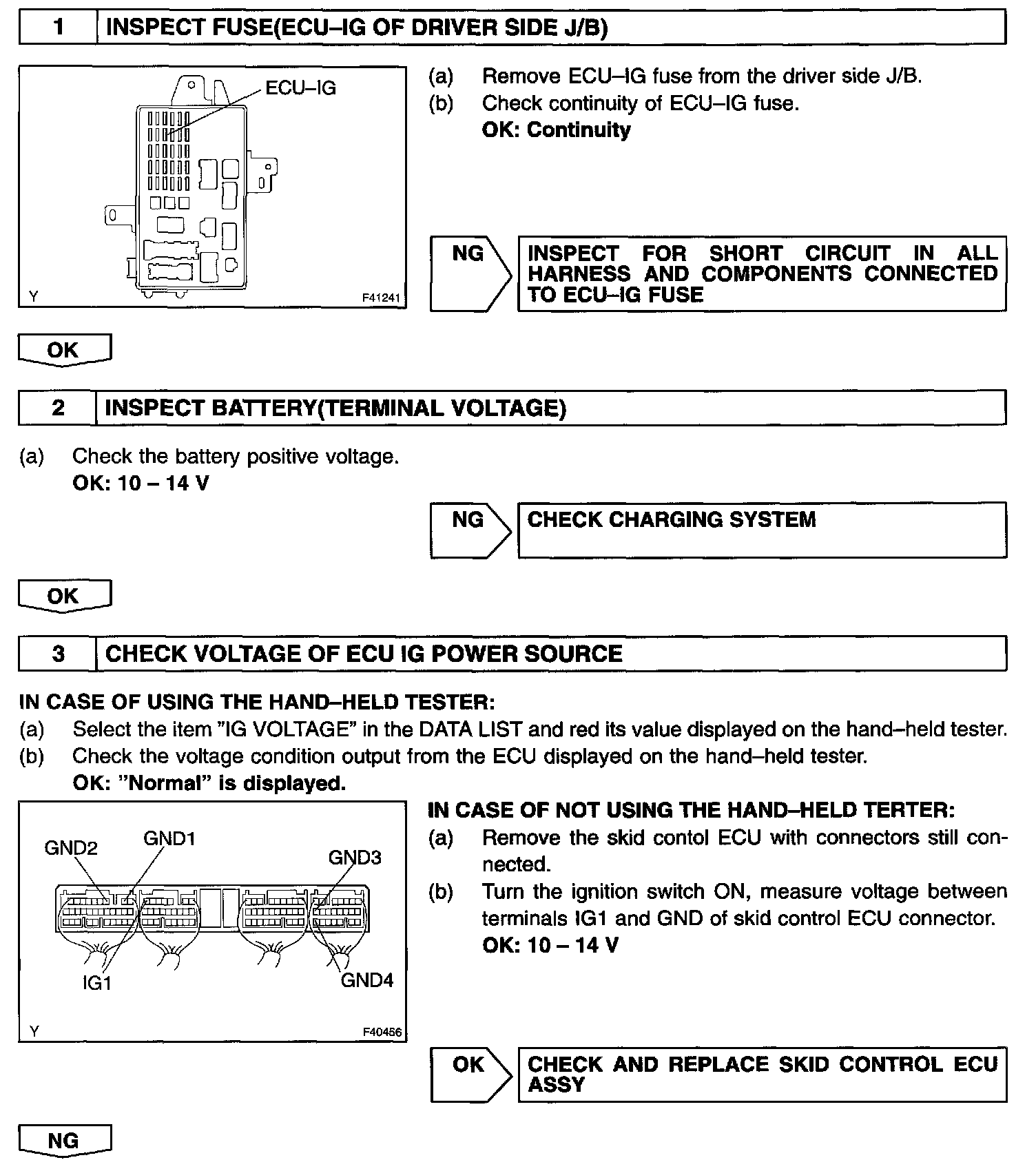

Step 1 - 3:

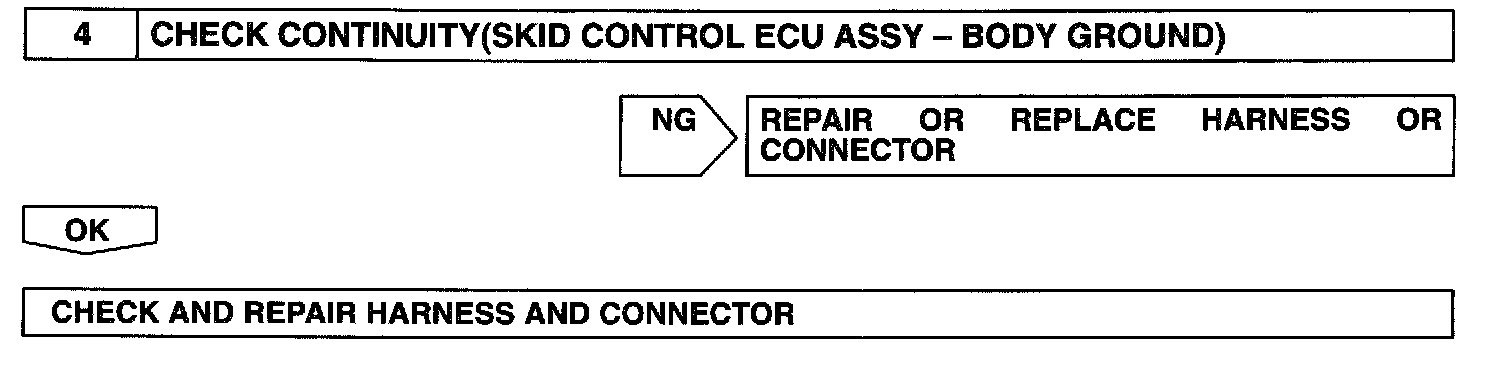

Step 4:




INSPECTION PROCEDURE
