ABS W/EBD & BA & TRAC & VSC System

DTC C0278 OPEN CIRCUIT IN ABS SOLENOID RELAY CIRCUIT

CIRCUIT DESCRIPTION

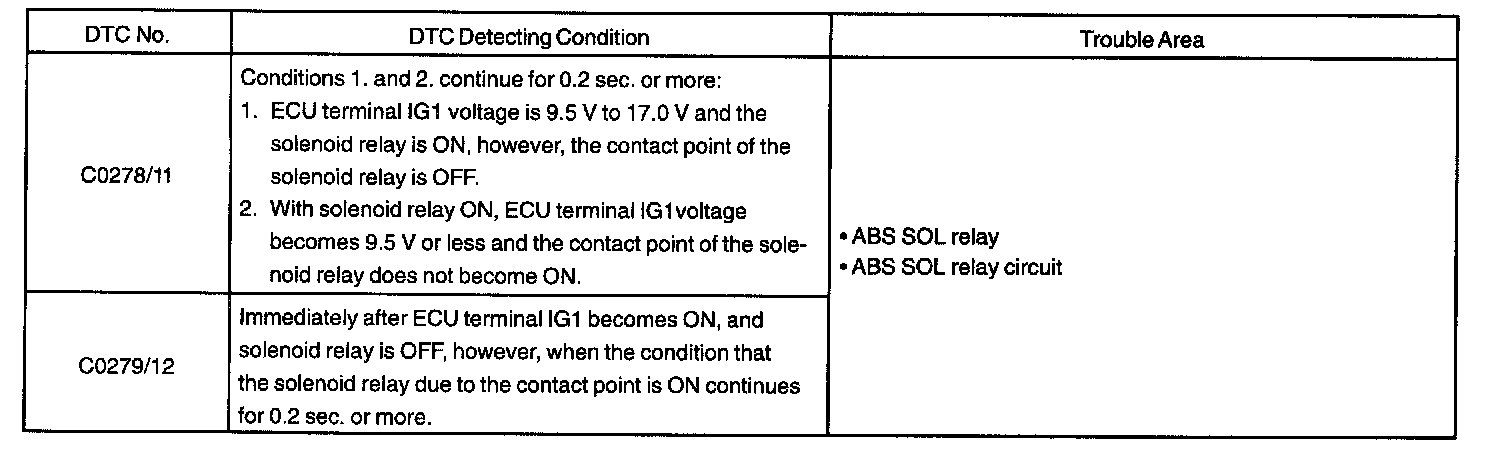

DTC Detecting Condition:

This relay supplies power to each ABS solenoid. After the ignition Switch is turned ON, if the initial check is OK, the relay goes on.

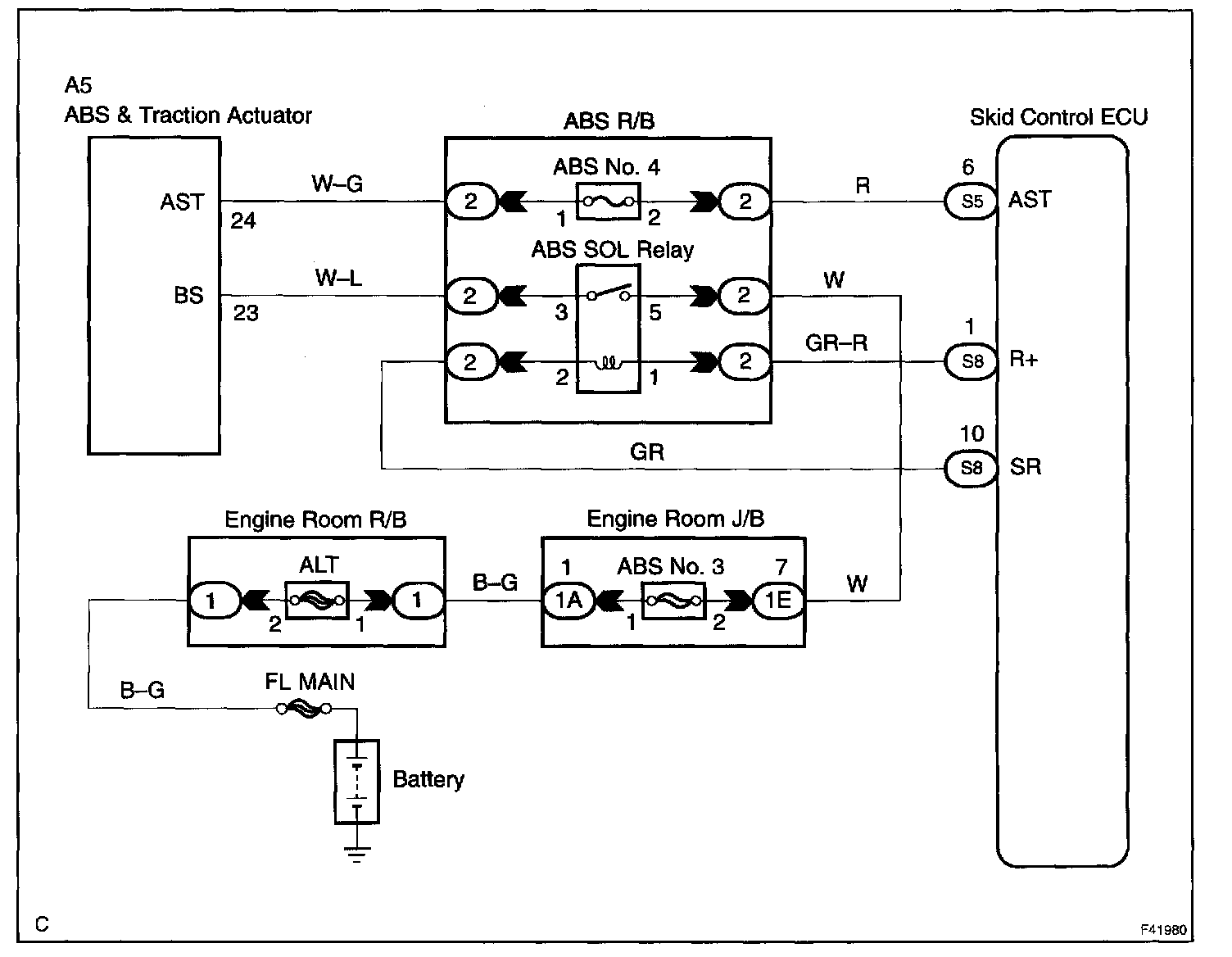

Wiring Diagram:

Step 1:

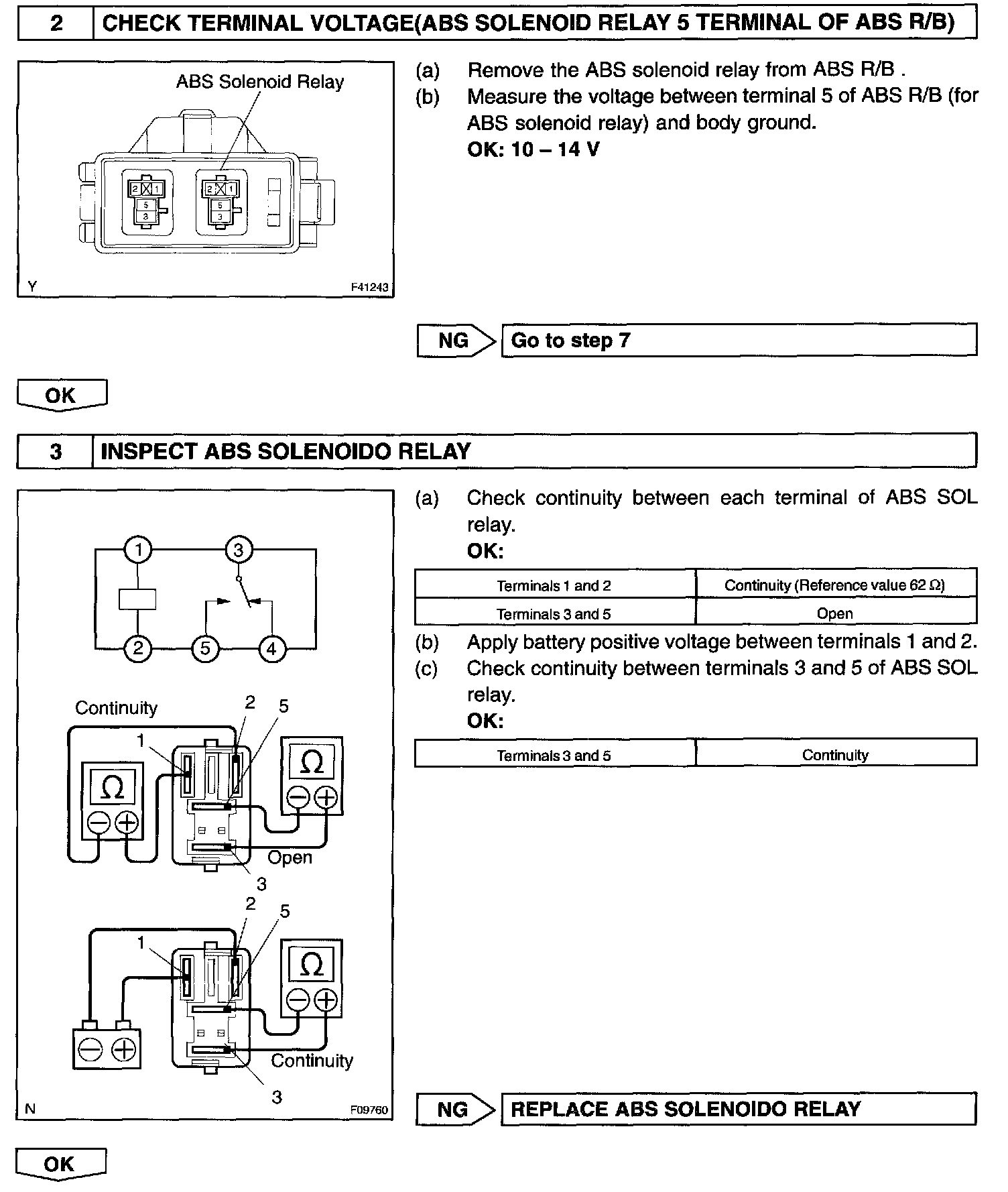

Step 2 - 3:

Step 4 - 6:

Step 7:

INSPECTION PROCEDURE

HINT: Start the inspection from step 1 in case of using hand-held tester and start from step 2 in case of not using the hand-held tester.
