B1244

DTC B1244 LIGHT SENSOR CIRCUIT MALFUNCTION

CIRCUIT DESCRIPTION

DTC Detecting Condition:

This DTC is output when failure in the light sensor circuit is detected.

Wiring Diagram:

Step 1 - 3:

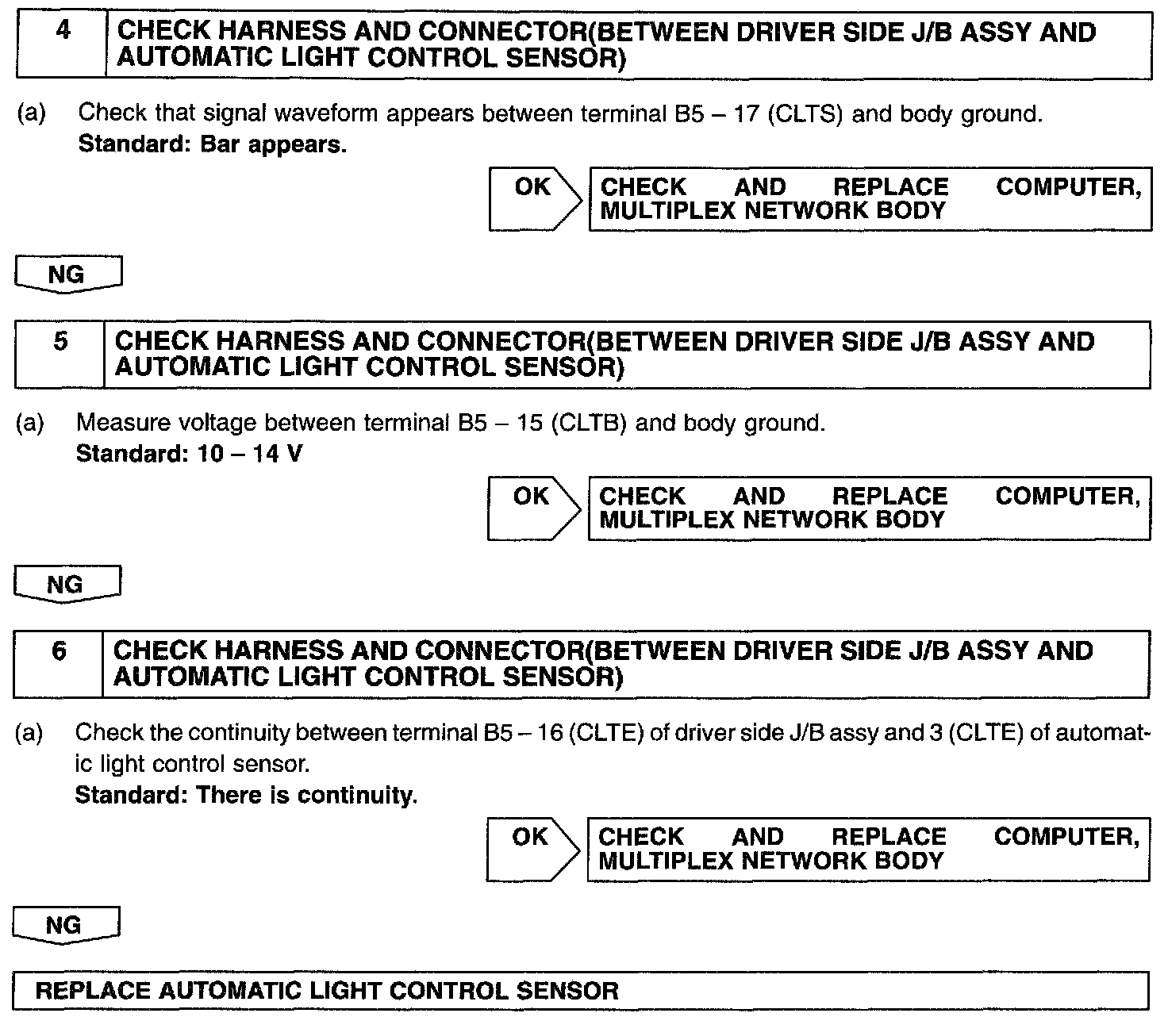

Step 4 - 6:

INSPECTION PROCEDURE
