B1242

DTC B1242 WIRELESS DOOR LOCK TUNER CIRCUIT MALFUNCTION

CIRCUIT DESCRIPTION

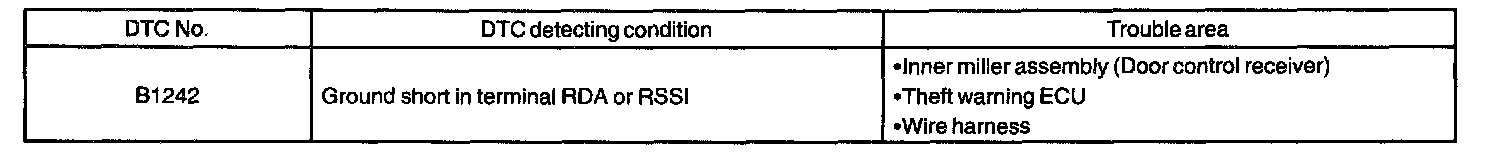

DTC Detecting Condition:

This DTC is output when the ground short is detected in terminal RDA or RSSI.

Wiring Diagram:

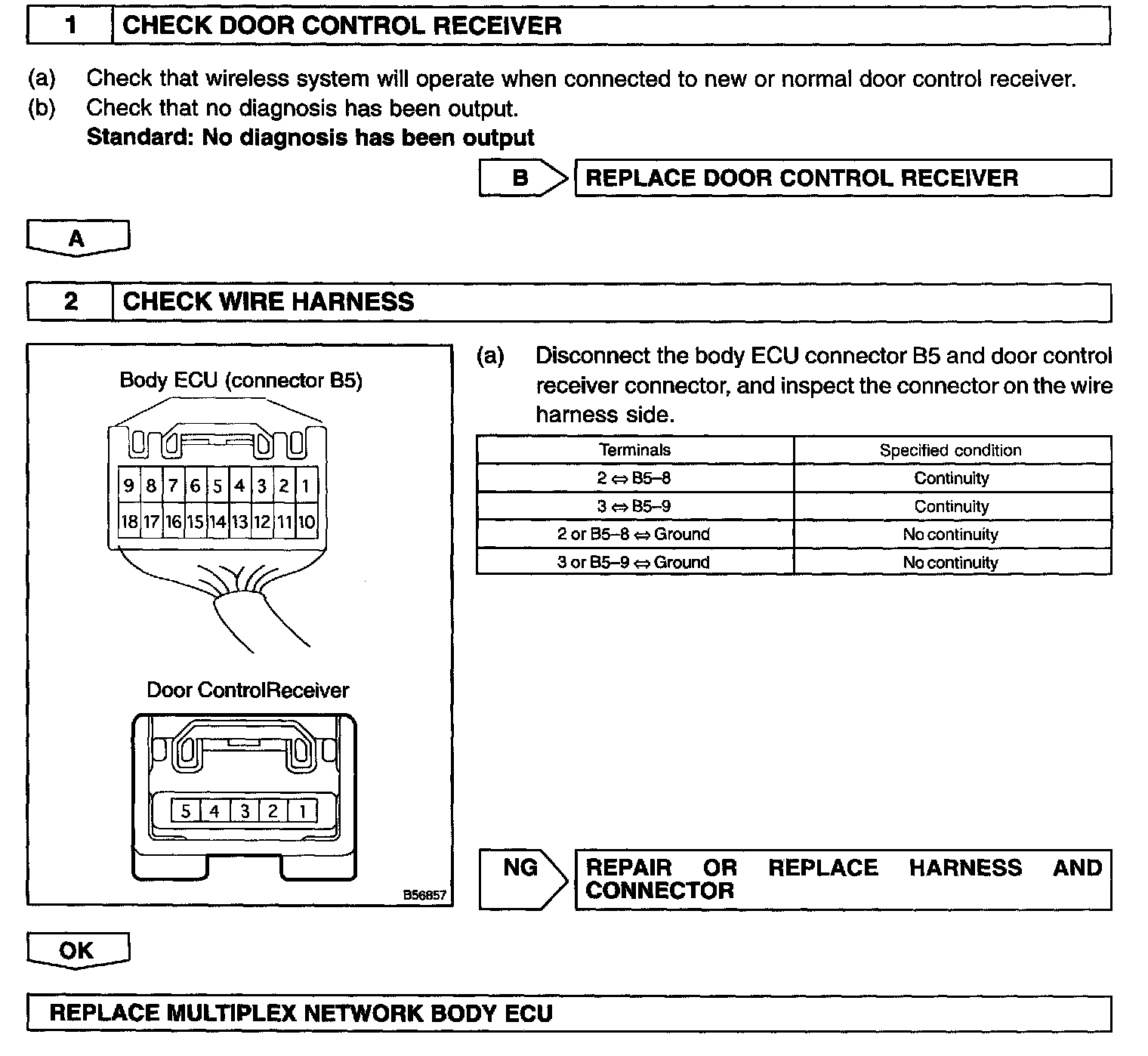

Step 1 - 2:

INSPECTION PROCEDURE
