B1211

DTC B1211 DRIVER DOOR ECU COMMUNICATION STOP

CIRCUIT DESCRIPTION

DTC Detecting Condition:

B1211 will be output when the communication between the driver door ECU and body ECU stops for more than 10 seconds.

Wiring Diagram:

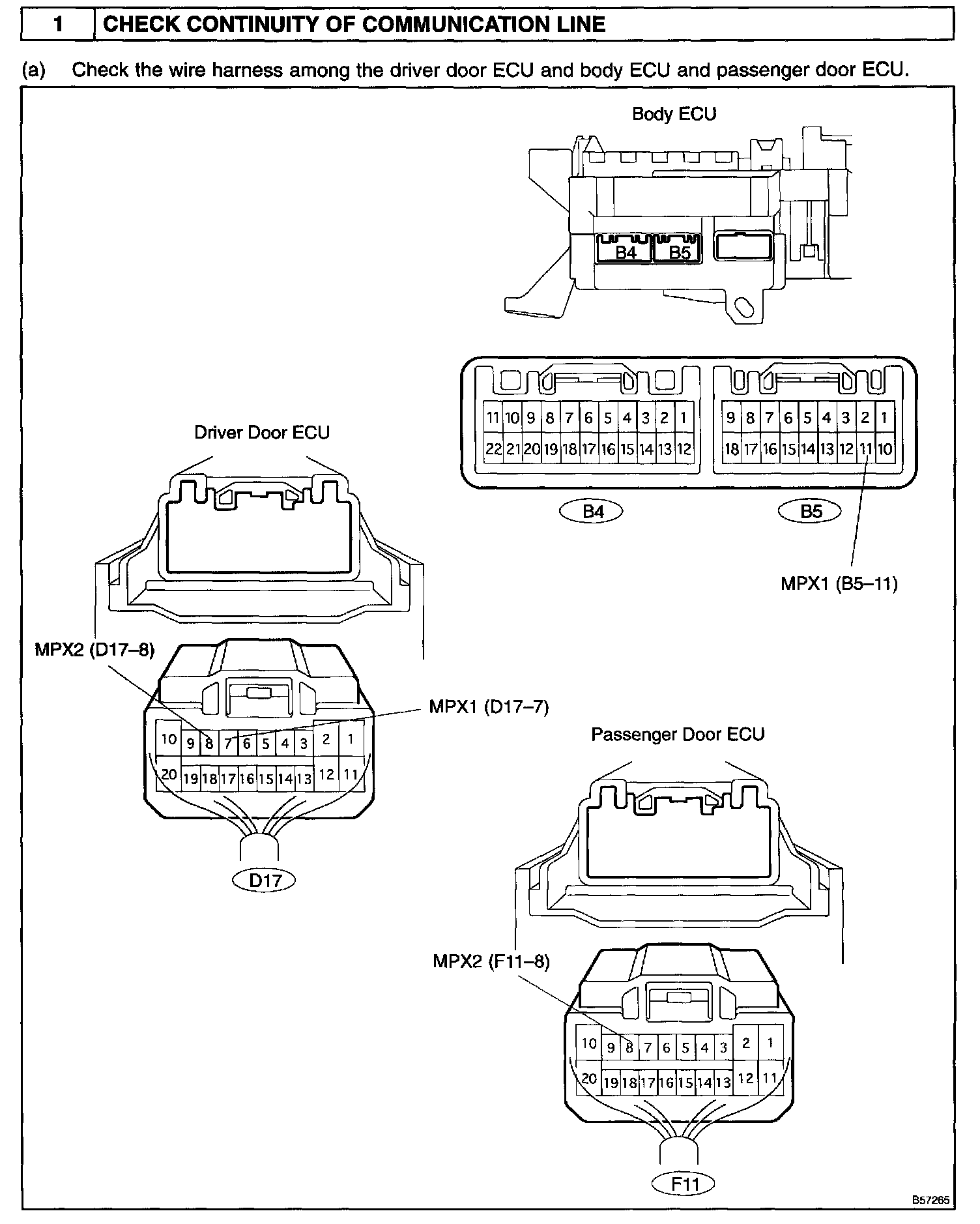

Step 1:

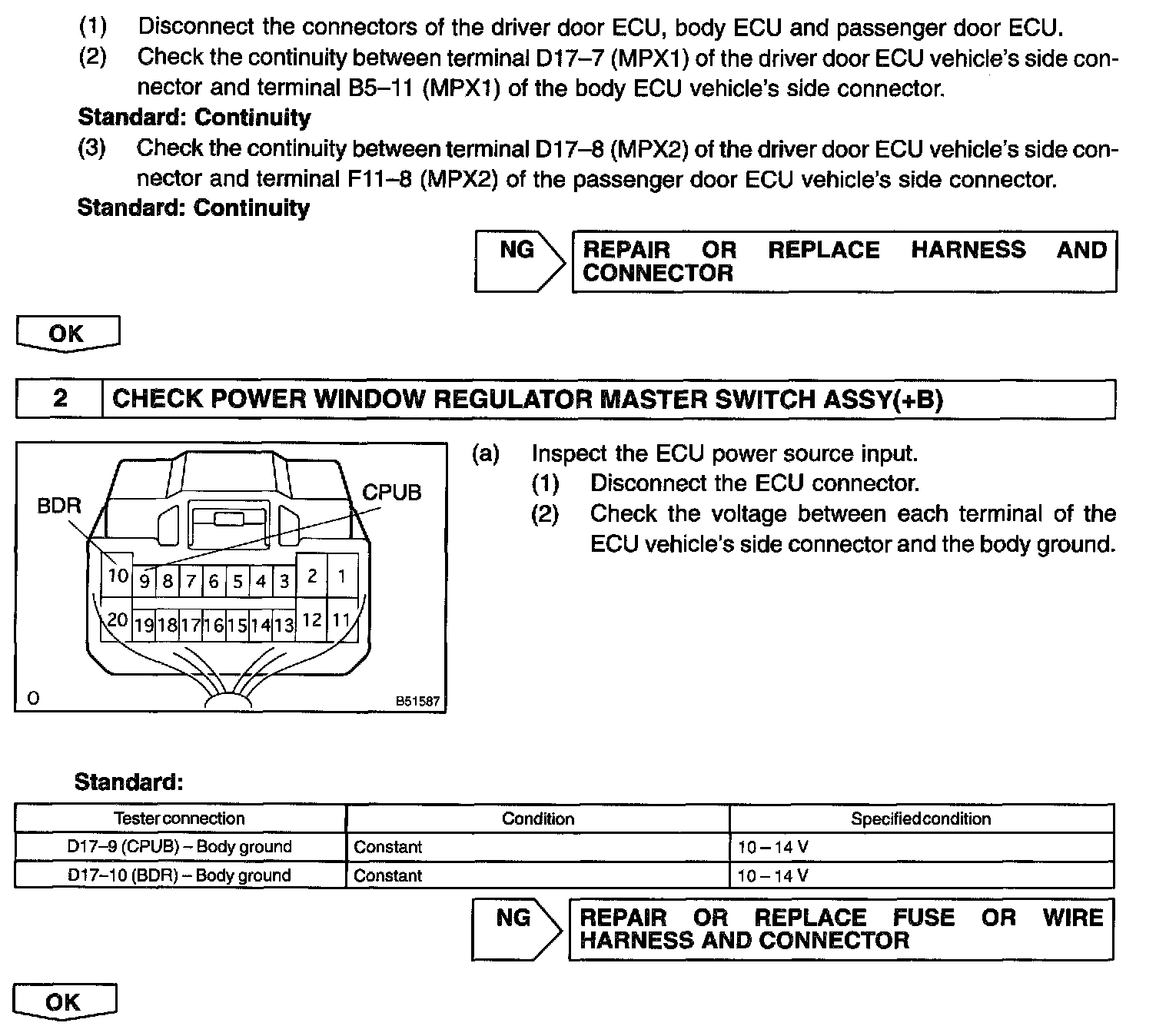

Step 1 (Continued) - 2:

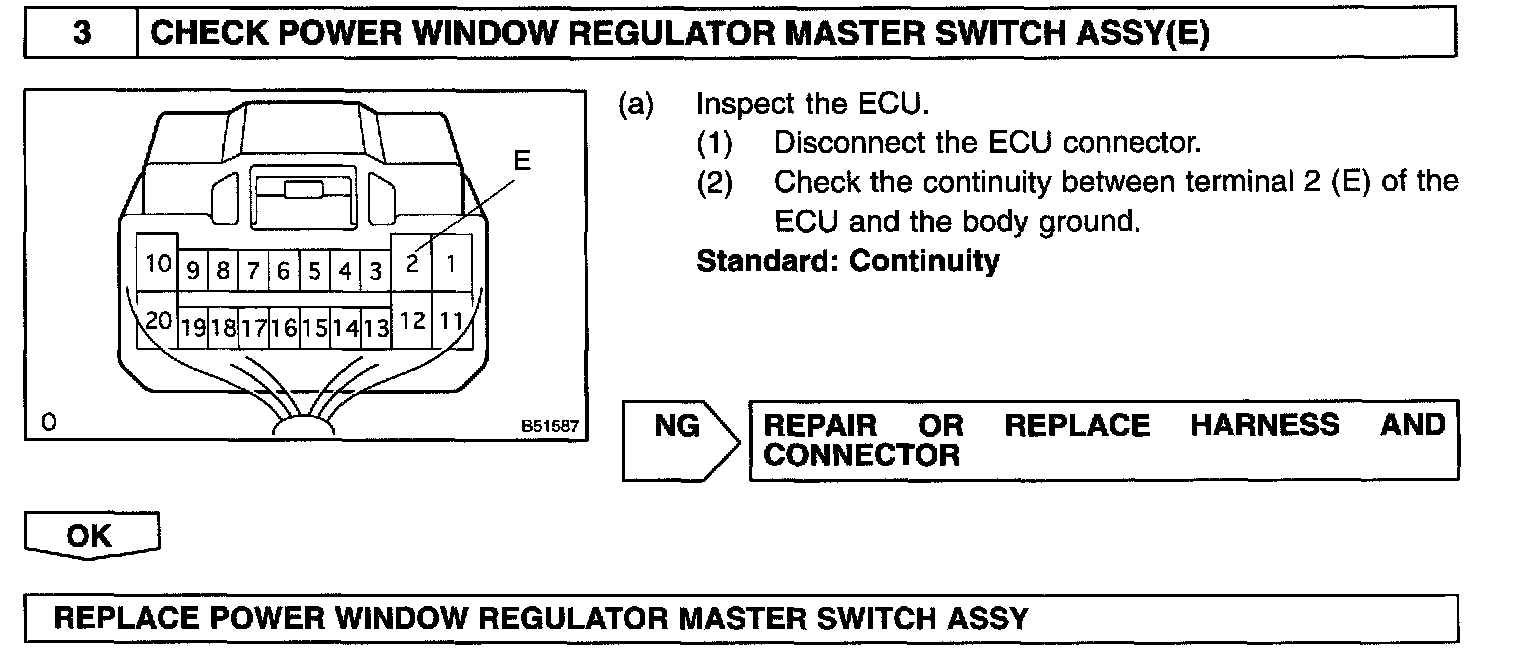

Step 3:

INSPECTION PROCEDURE
