B1186

CIRCUIT DESCRIPTION

DTC Detecting Condition:

The P squib (2nd step) circuit consists of the airbag sensor assy center and instr pnl pass l/door airbag assy.

It causes the SRS to deploy when the SRS deployment conditions are satisfied.

DTC B1186/58 is recorded when an open is detected in the P squib circuit.

Wiring Diagram:

Step 1:

Step 2:

Step 3:

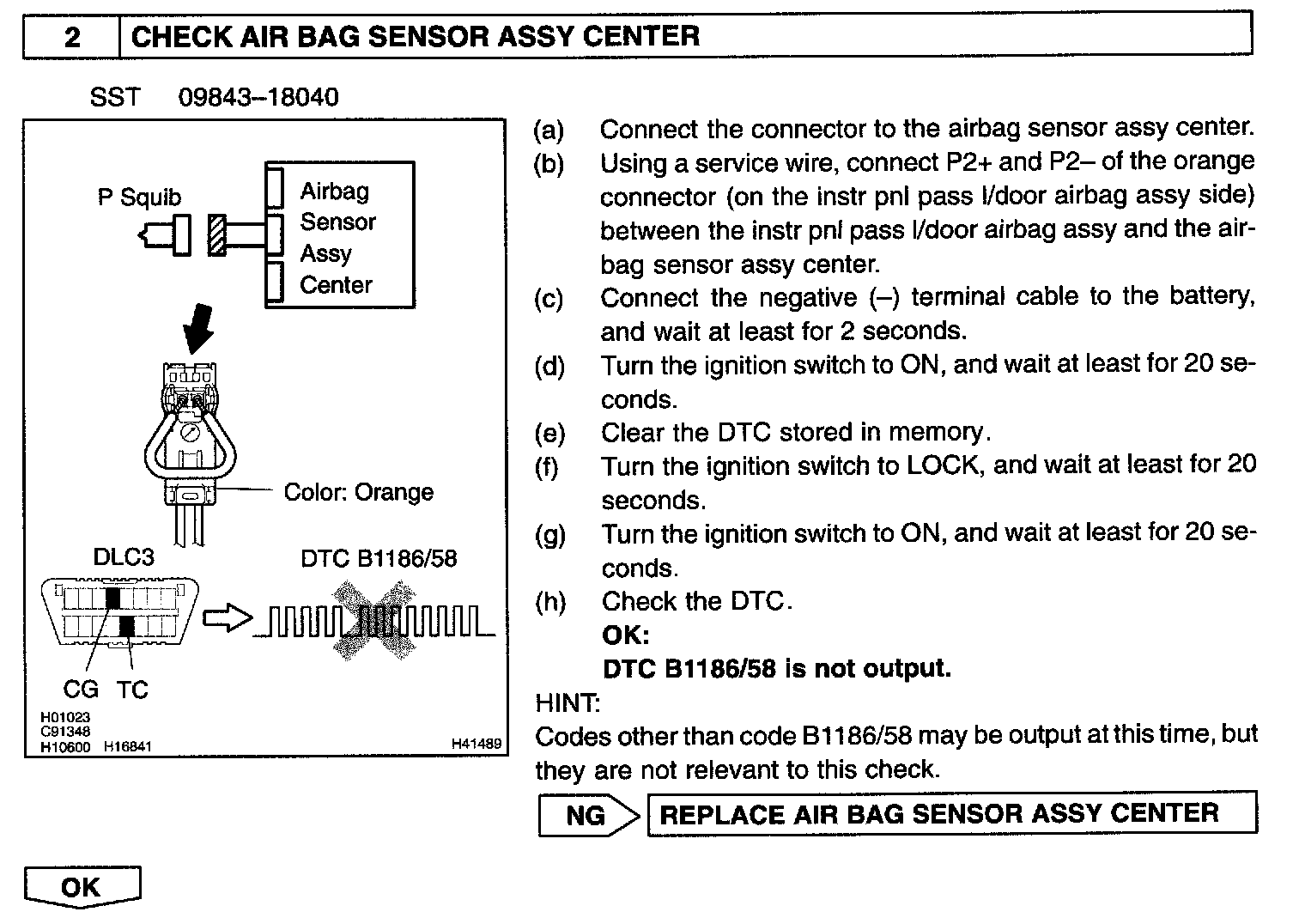

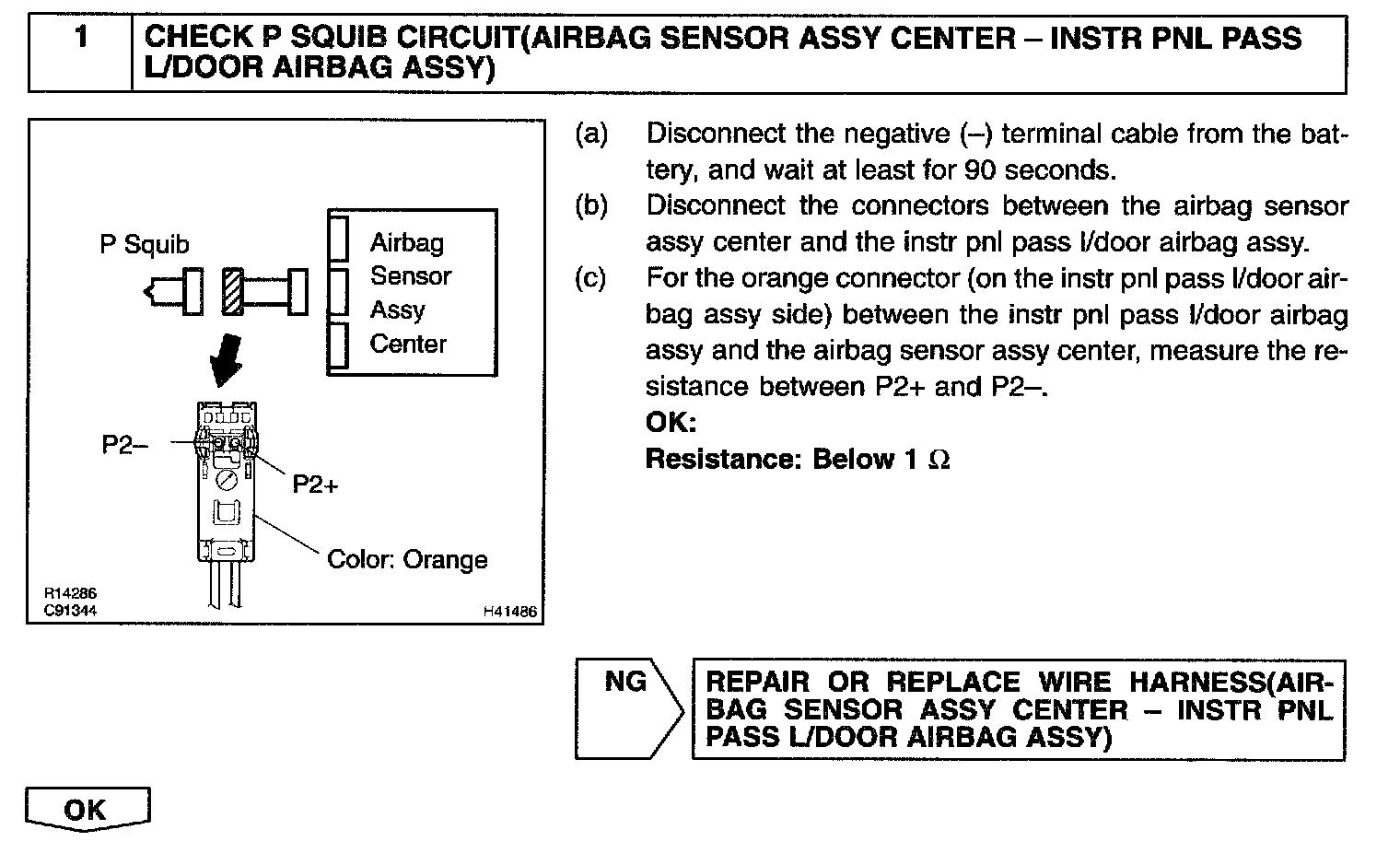

INSPECTION PROCEDURE
