B1183

CIRCUIT DESCRIPTION

DTC Detecting Condition:

The D squib (2nd step) circuit consists of the airbag sensor assy center, spiral cable sub-assy and horn button assy.

It causes the SRS to deploy when the SRS deployment conditions are satisfied.

DTC B1183/22 is recorded when a B+ short is detected in the D squib (2nd step) circuit.

Wiring Diagram:

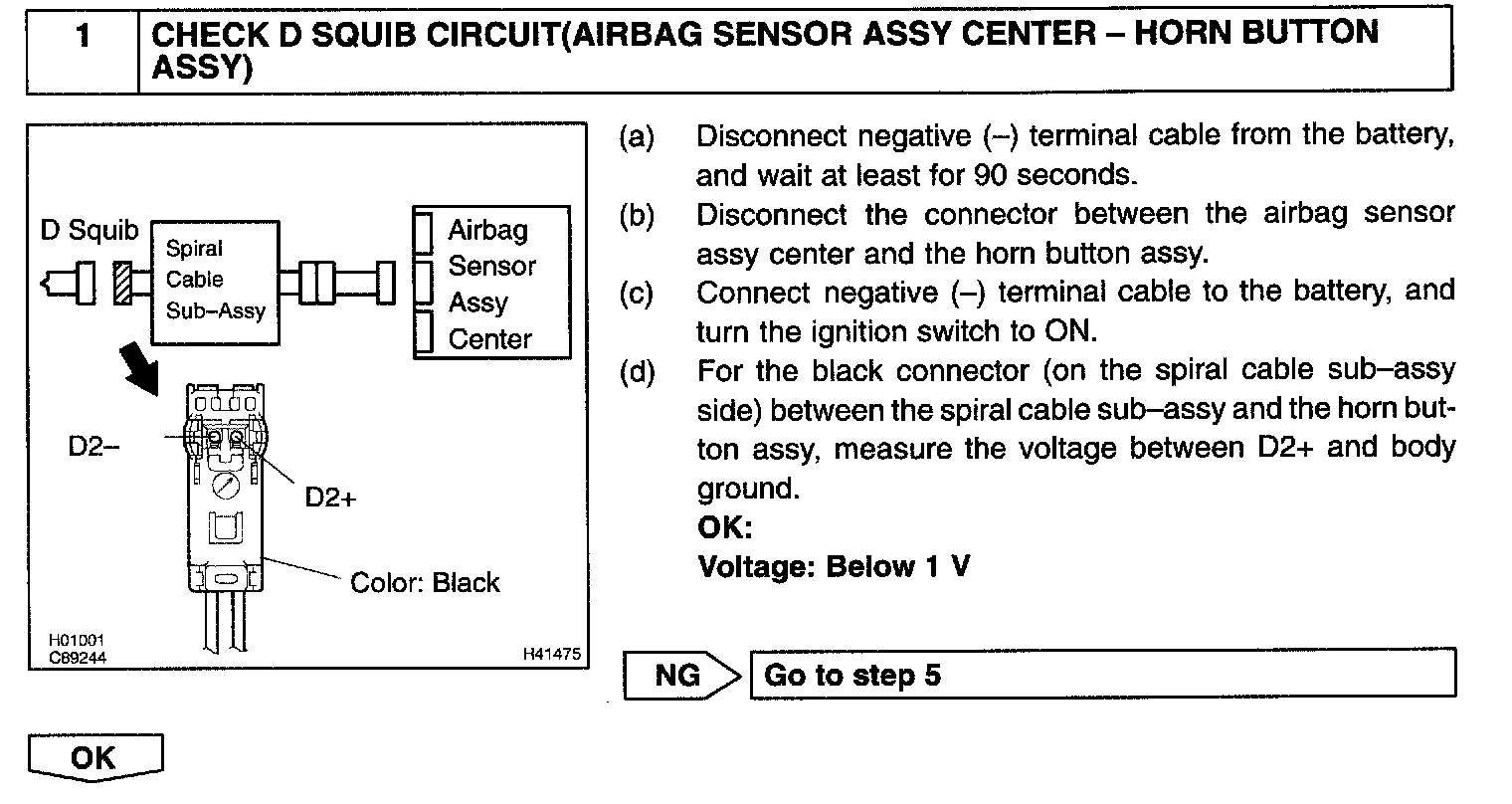

Step 1:

Step 2:

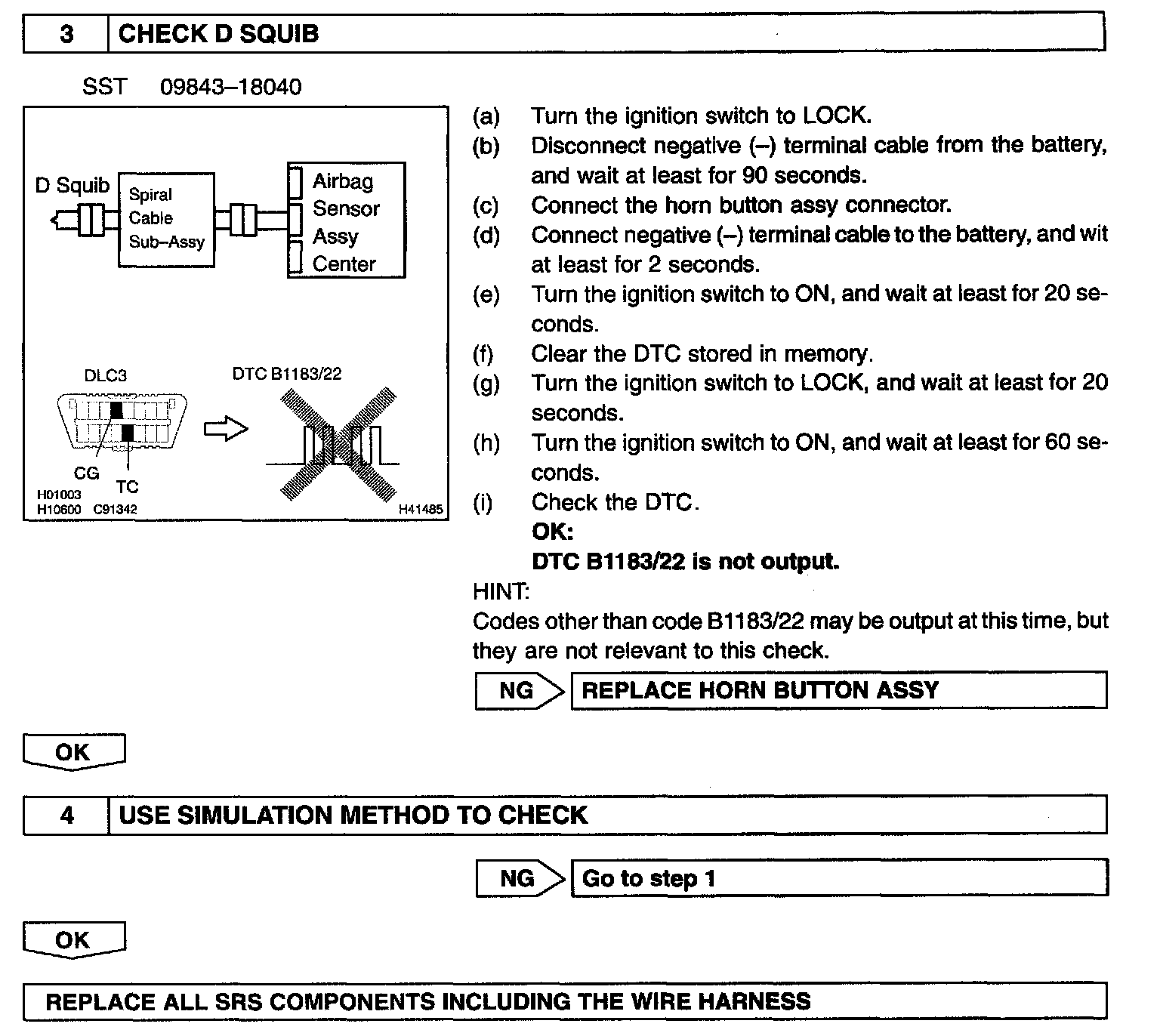

Step 3 - 4:

Step 5 - 7:

CIRCUIT INSPECTION
