B1181

CIRCUIT DESCRIPTION

DTC Detecting Condition:

The D squib circuit consists of the airbag sensor assy center, spiral cable sub-assy and horn button assy.

It causes the SRS to deploy when the SRS deployment conditions are satisfied.

DTC B1181/18 is recorded when an open is detected in the D squib circuit (2nd step).

Wiring Diagram:

Step 1:

Step 2:

Step 3:

Step 4 - 5:

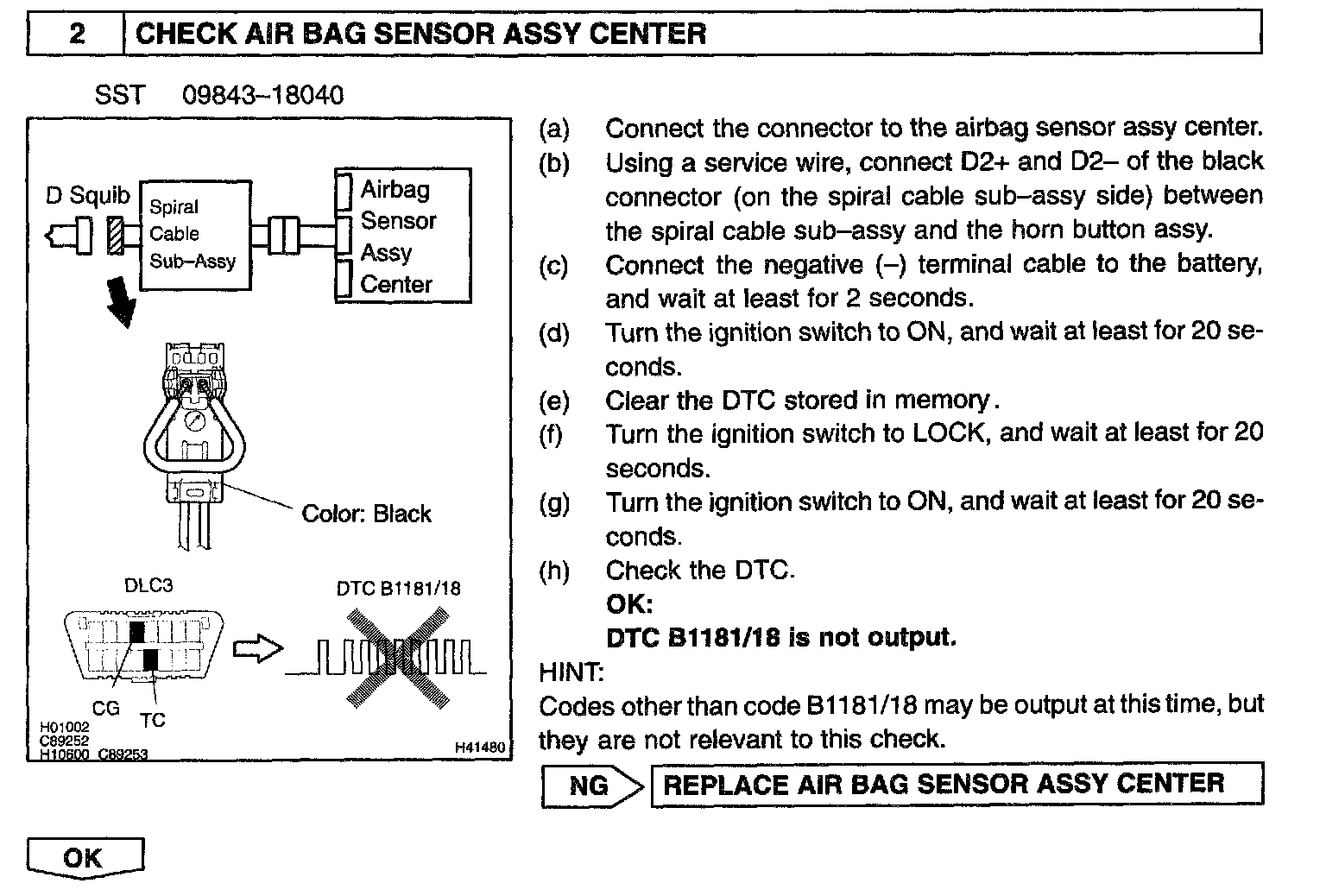

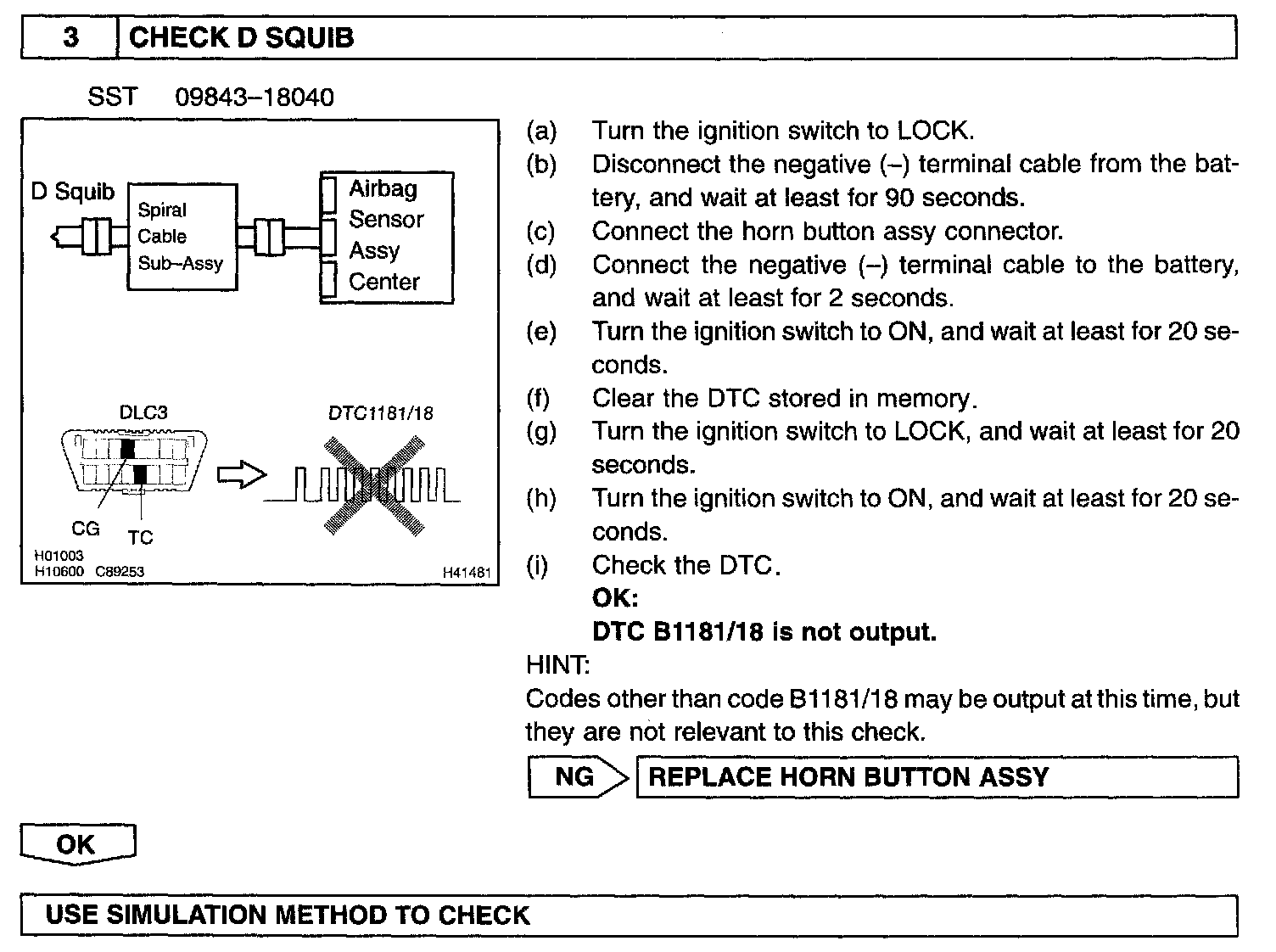

INSPECTION PROCEDURE
