B1168

CIRCUIT DESCRIPTION

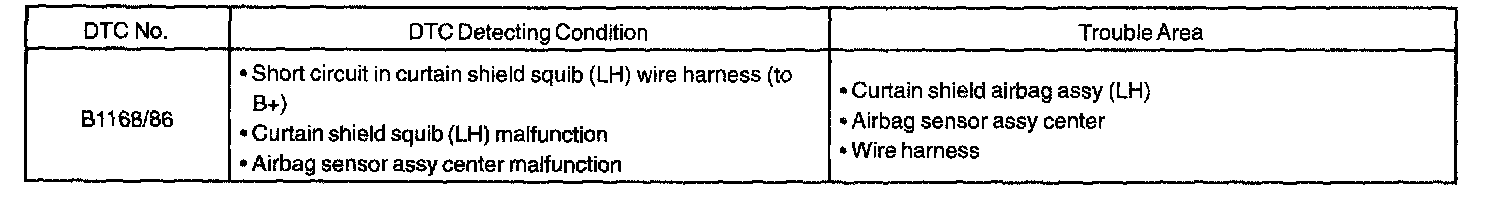

DTC Detecting Condition:

The curtain shield squib (LH) circuit consists of the airbag sensor assy center and curtain shield airbag assy (LH).

It causes the SRS to deploy when the SRS deployment conditions are satisfied.

DTC B1168/86 is recorded when a B+ short is detected in the curtain shield squib (LH) circuit

Wiring Diagram:

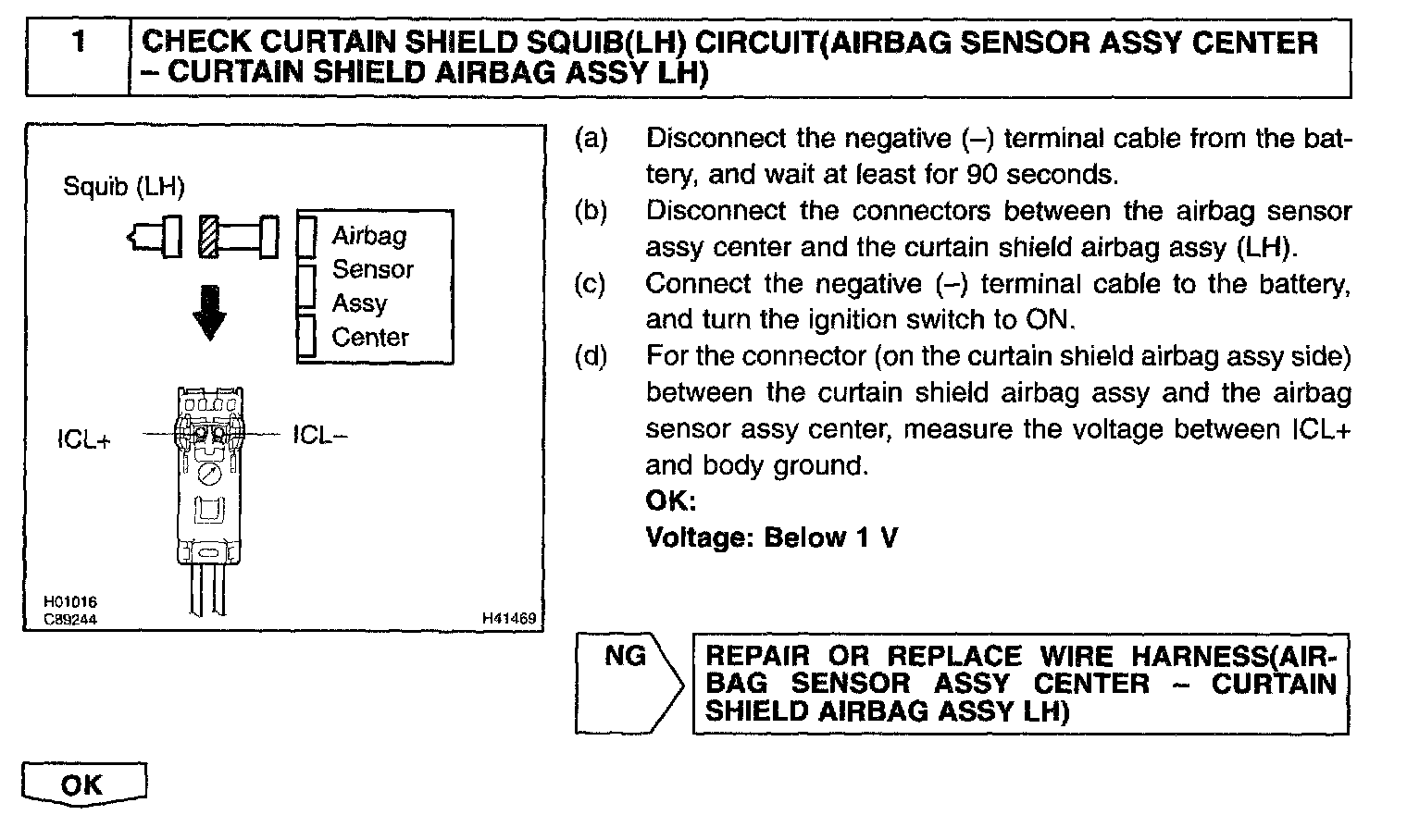

Step 1:

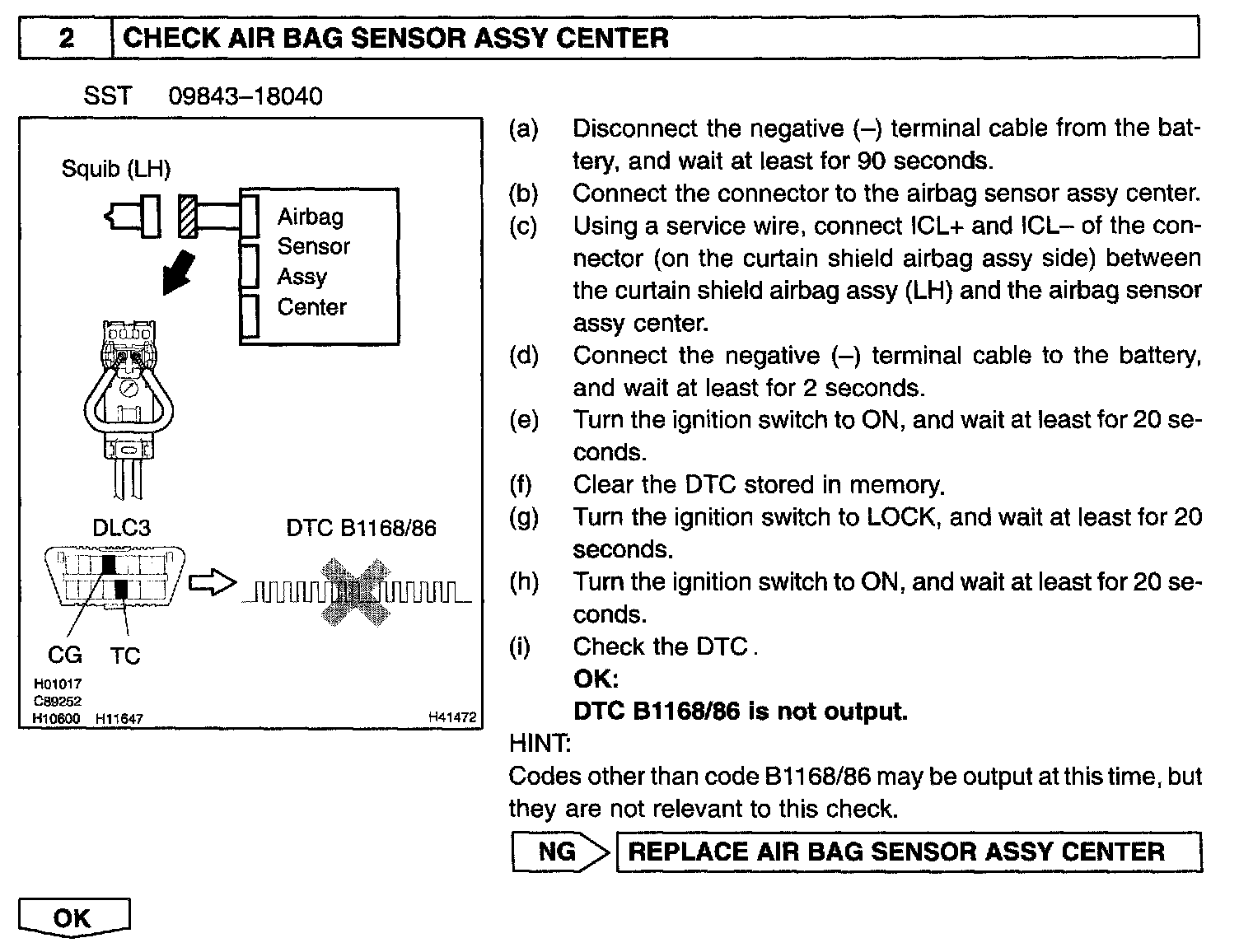

Step 2:

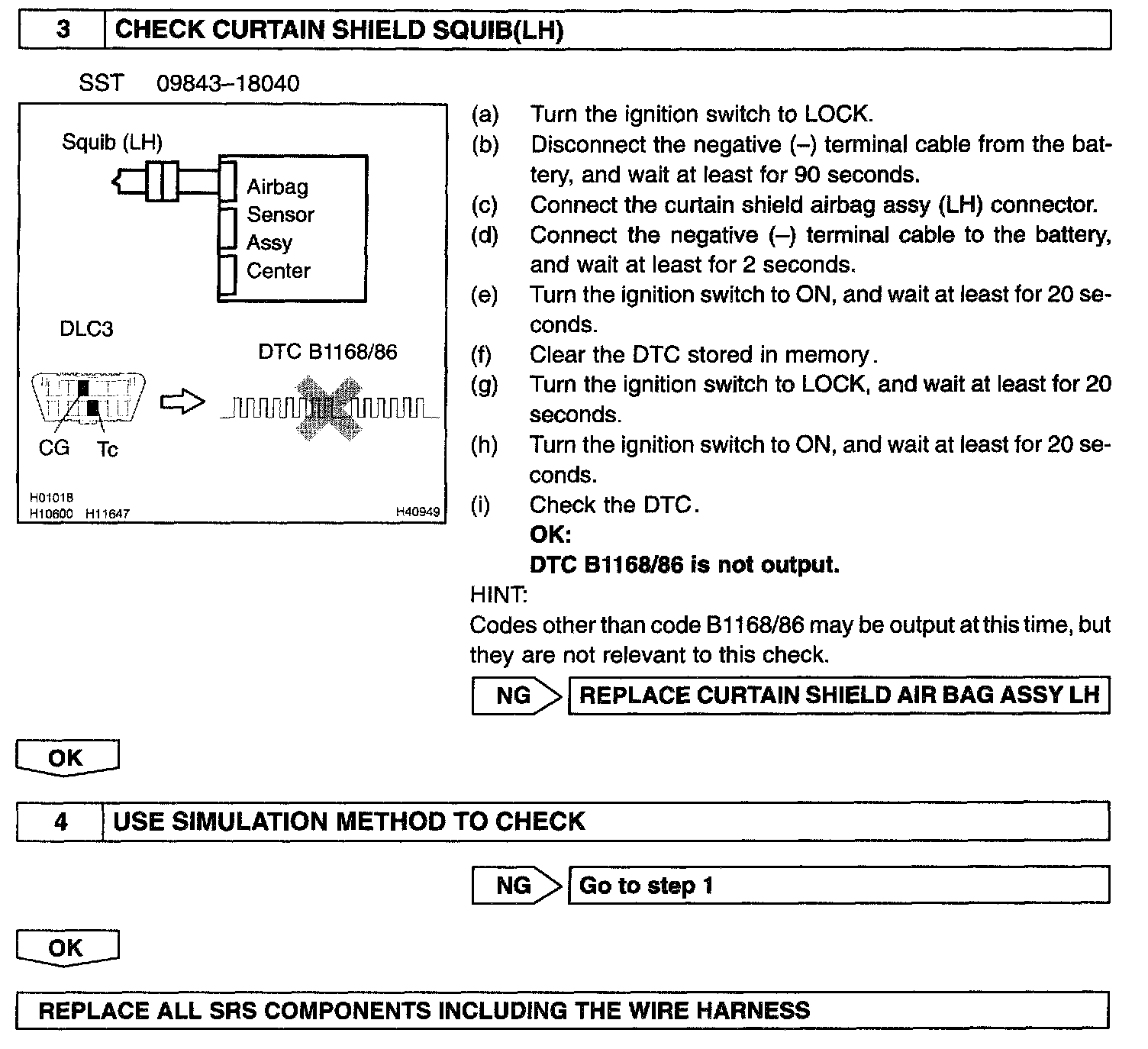

Step 3 - 4:

INSPECTION PROCEDURE
