B1155

CIRCUIT DESCRIPTION

DTC Detecting Condition:

The airbag sensor rear (LH) consists of the diagnosis circuit and lateral deceleration sensor, etc..

It receives signals from the lateral deceleration sensor, judges whether or not the SRS must be activated, and detects diagnosis system malfunction.

DTC B1154/38 is recorded when occurrence of a malfunction in the airbag sensor rear (LH) is detected.

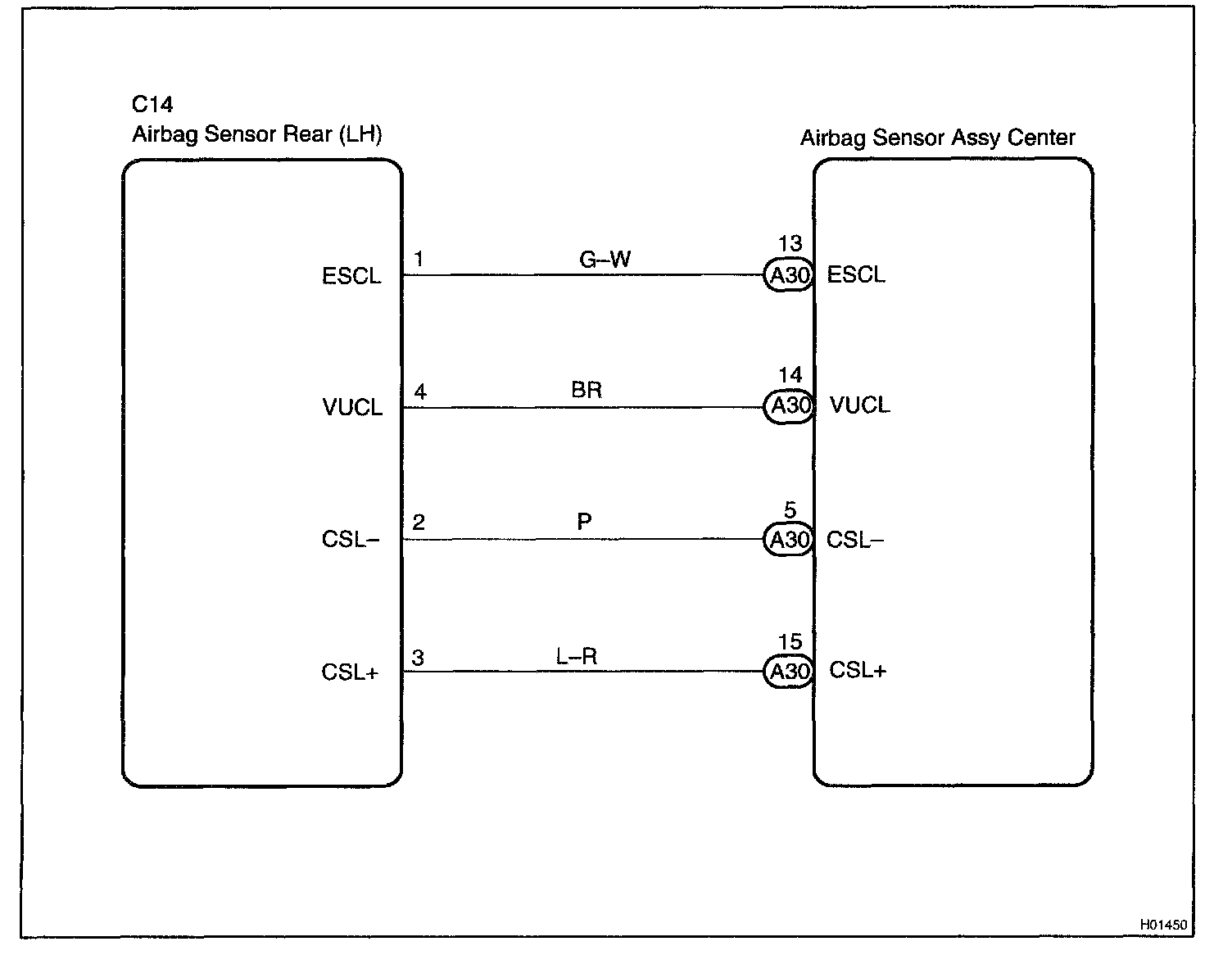

Wiring Diagram:

Step 1 - 3:

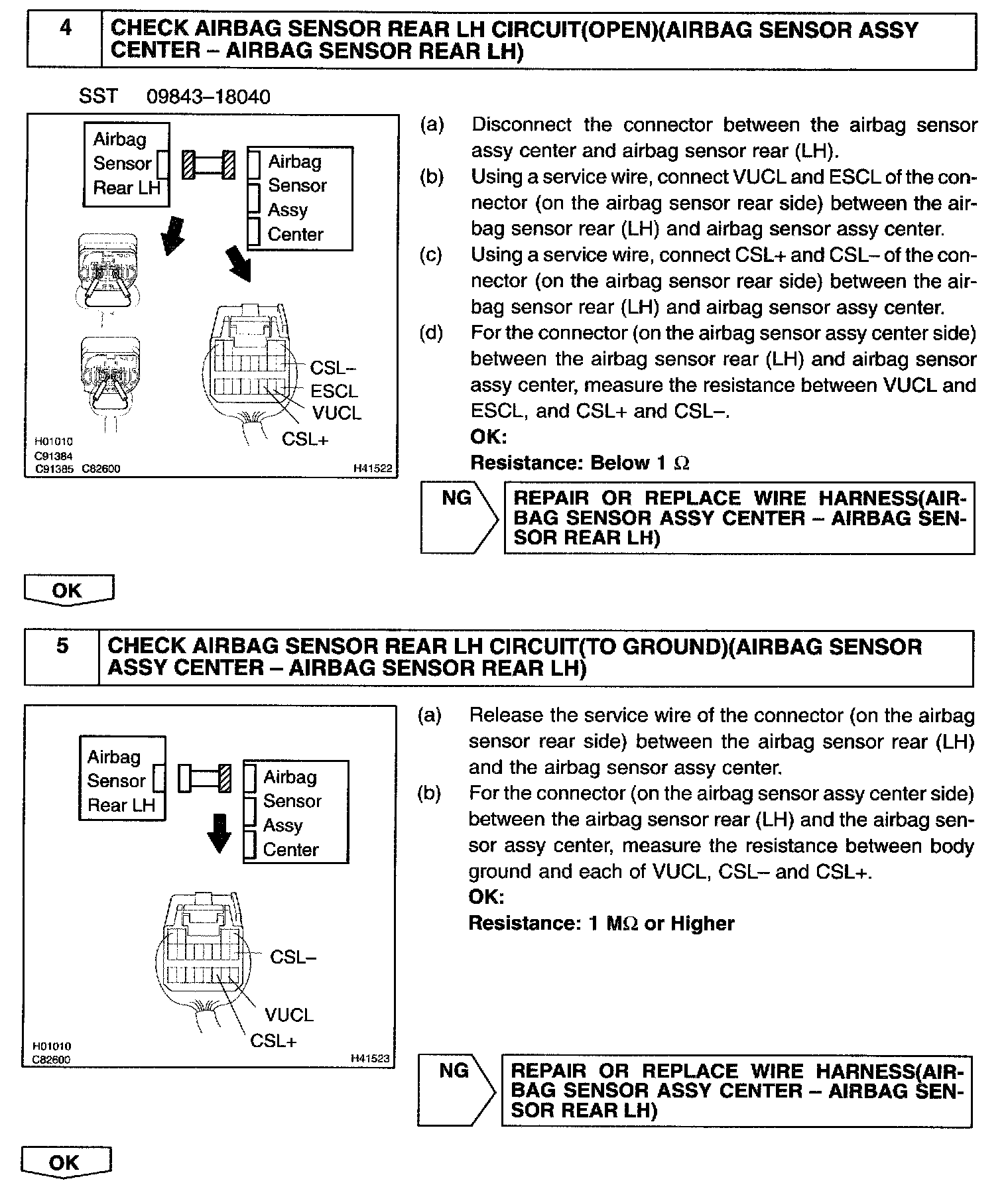

Step 4 - 5:

Step 6 - 7:

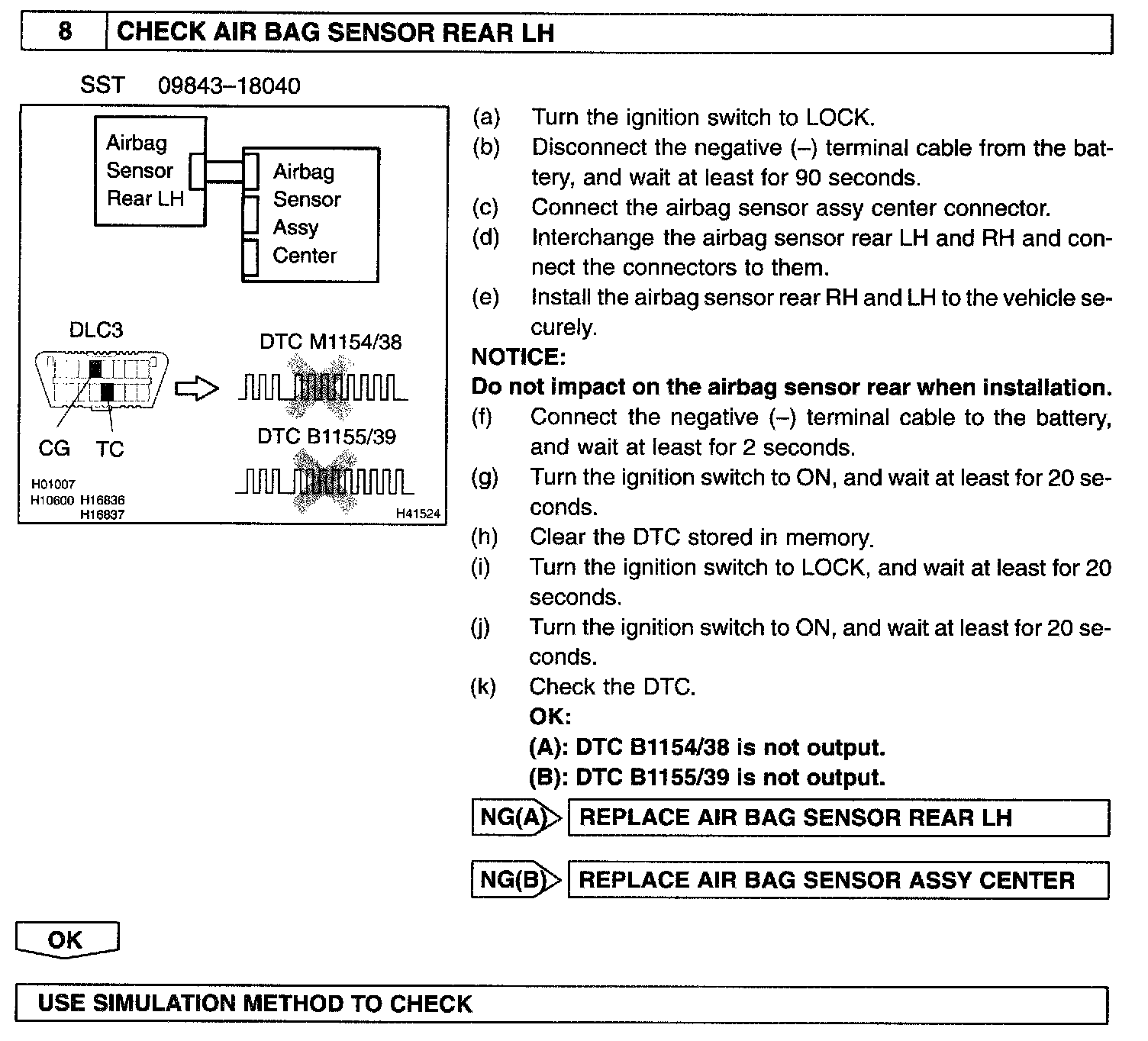

Step 8:

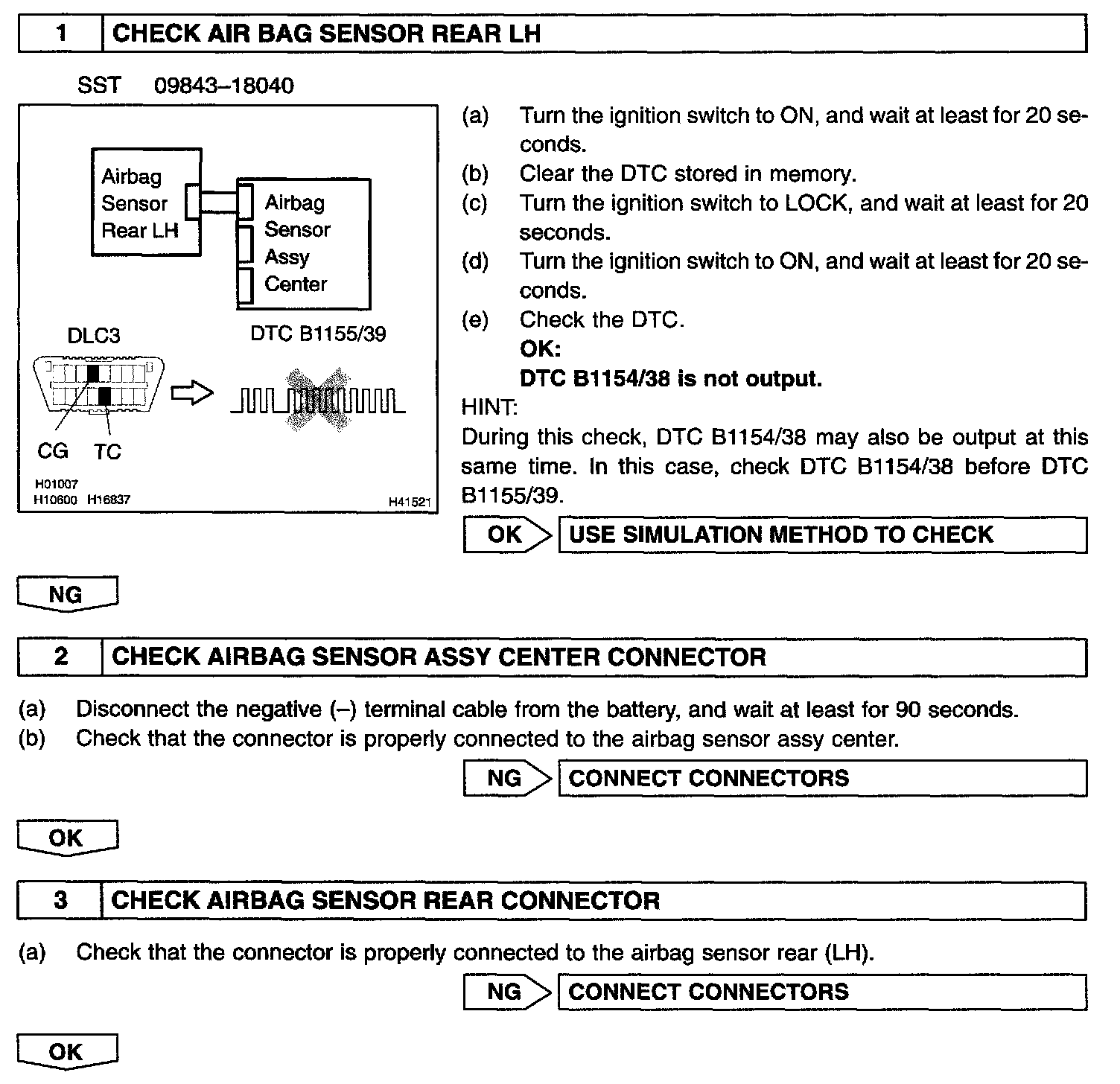

INSPECTION PROCEDURE
