B0116

CIRCUIT DESCRIPTION

DTC Detecting Condition:

The side squib (LH) circuit consists of the airbag sensor assy center and front seat airbag assy (LH).

It causes the SRS to deploy when the SRS deployment conditions are satisfied.

DTC B0116/48 is recorded when an open is detected in the side squib (LH) circuit.

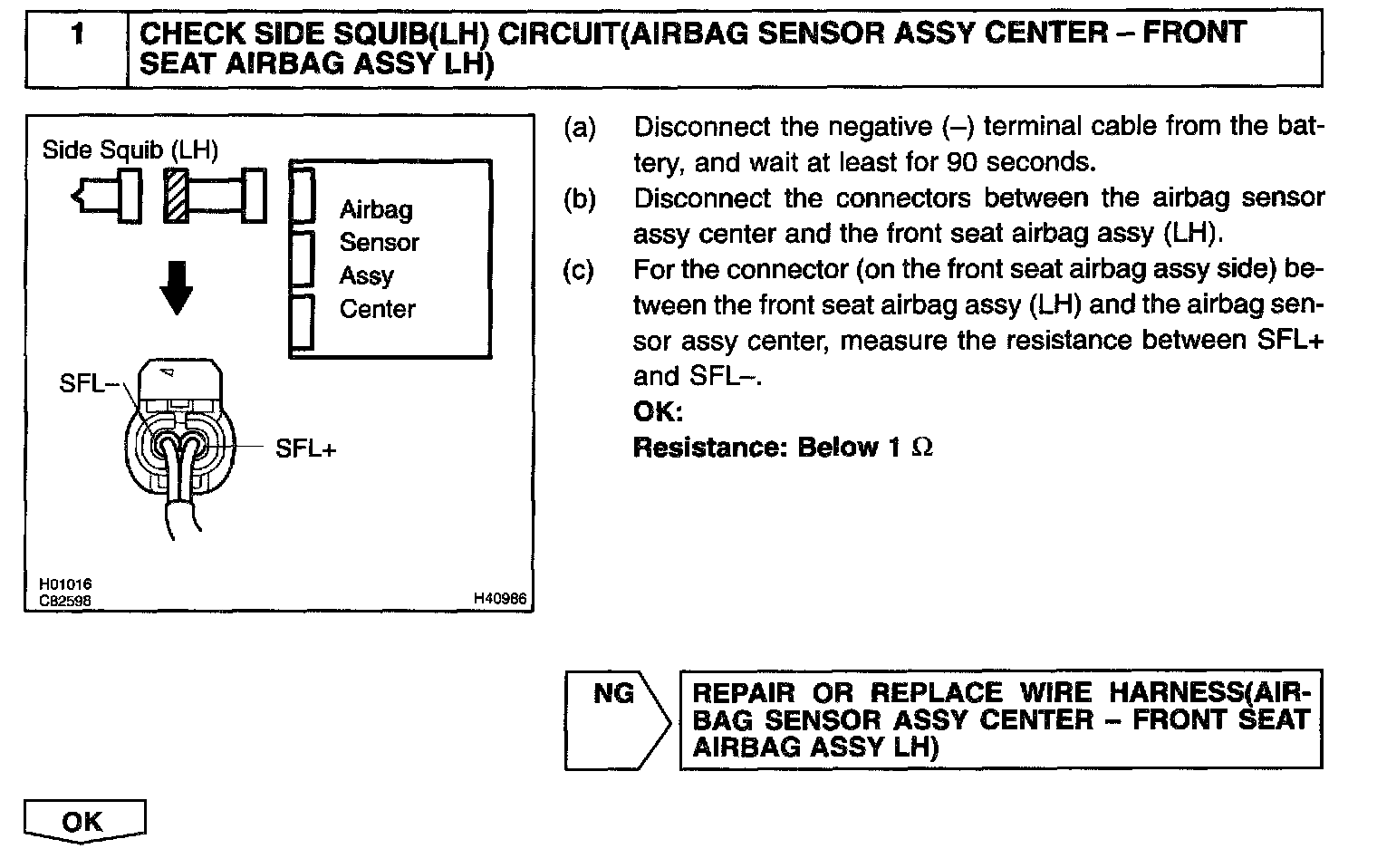

Step 1:

Step 2:

Step 3:

INSPECTION PROCEDURE
