B0105

CIRCUIT DESCRIPTION

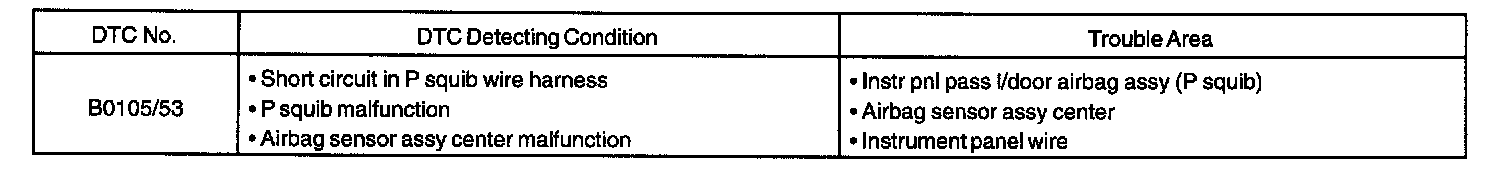

DTC Detecting Condition:

The P squib circuit consists of the airbag sensor assy center and instr pnl pass l/door airbag assy.

It causes the SRS to deploy when the SRS deployment conditions are satisfied.

DTC B0105/53 is recorded when a short is detected in the P squib circuit.

Wiring Diagram:

Step 1 - 2:

Step 3:

INSPECTION PROCEDURE
