B0103

CIRCUIT DESCRIPTION

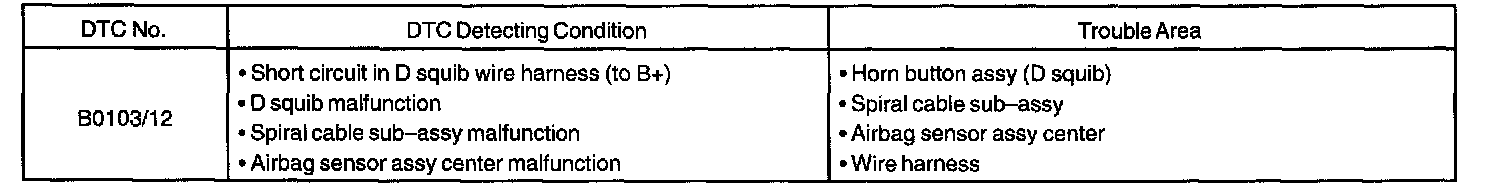

DTC Detecting Condition:

The D squib circuit consists of the airbag sensor assy center, spiral cable sub-assy and horn button assy.

It causes the SRS to deploy when the SRS deployment conditions are satisfied.

DTC B0103/12 is recorded when a B+ short is detected in the D squib circuit.

Wiring Diagram:

Step 1:

Step 2:

Step 3 - 4:

Step 5 - 7:

INSPECTION PROCEDURE
