B0100

CIRCUIT DESCRIPTION

DTC Detecting Condition:

The D squib circuit consists of the airbag sensor assy center, spiral cable sub-assy and horn button assy.

It causes the SRS to deploy when the SRS deployment conditions are satisfied.

DTC B0100/13 is recorded when a short is detected in the D squib circuit.

Wiring Diagram:

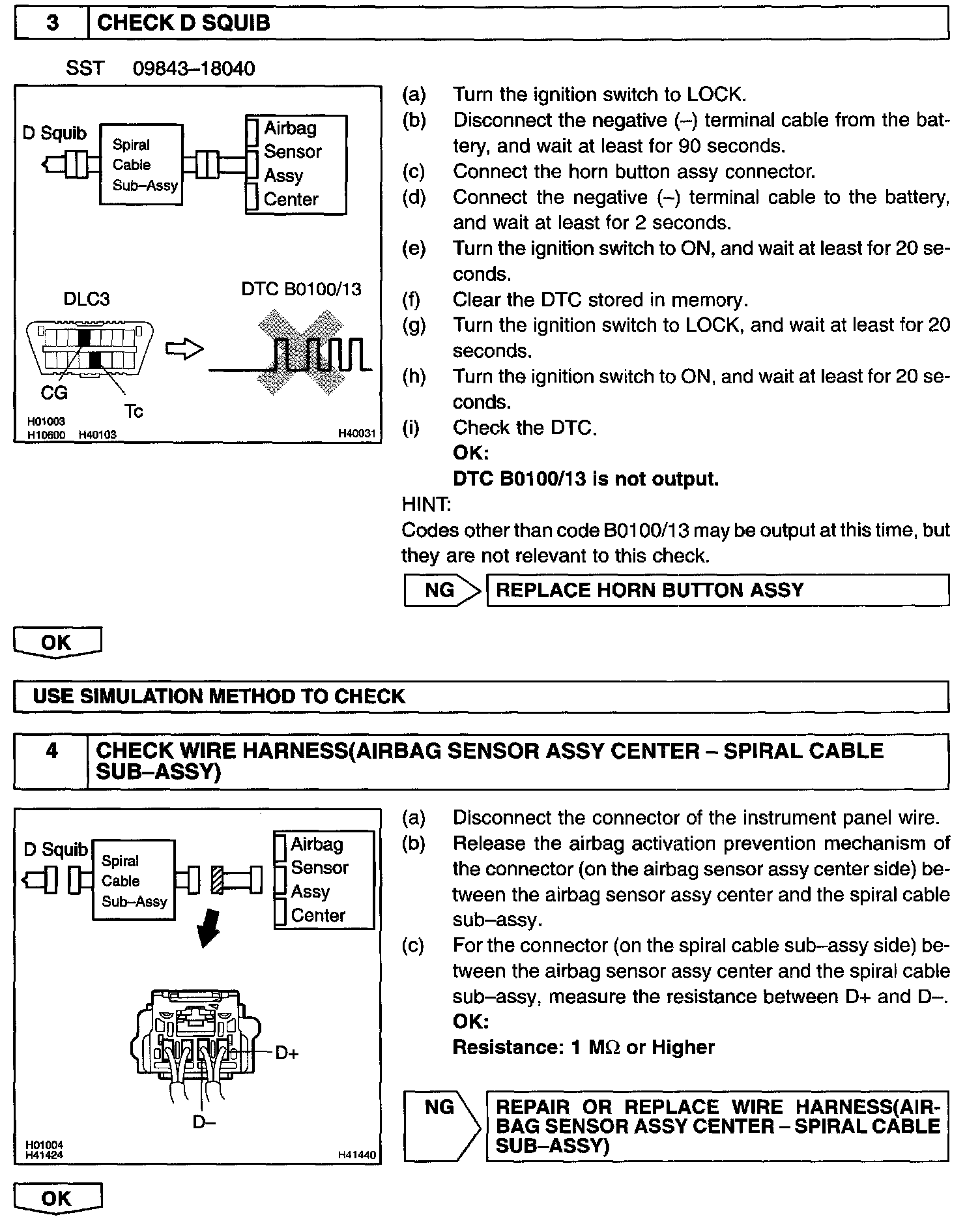

Step 1 - 2:

Step 3 - 4:

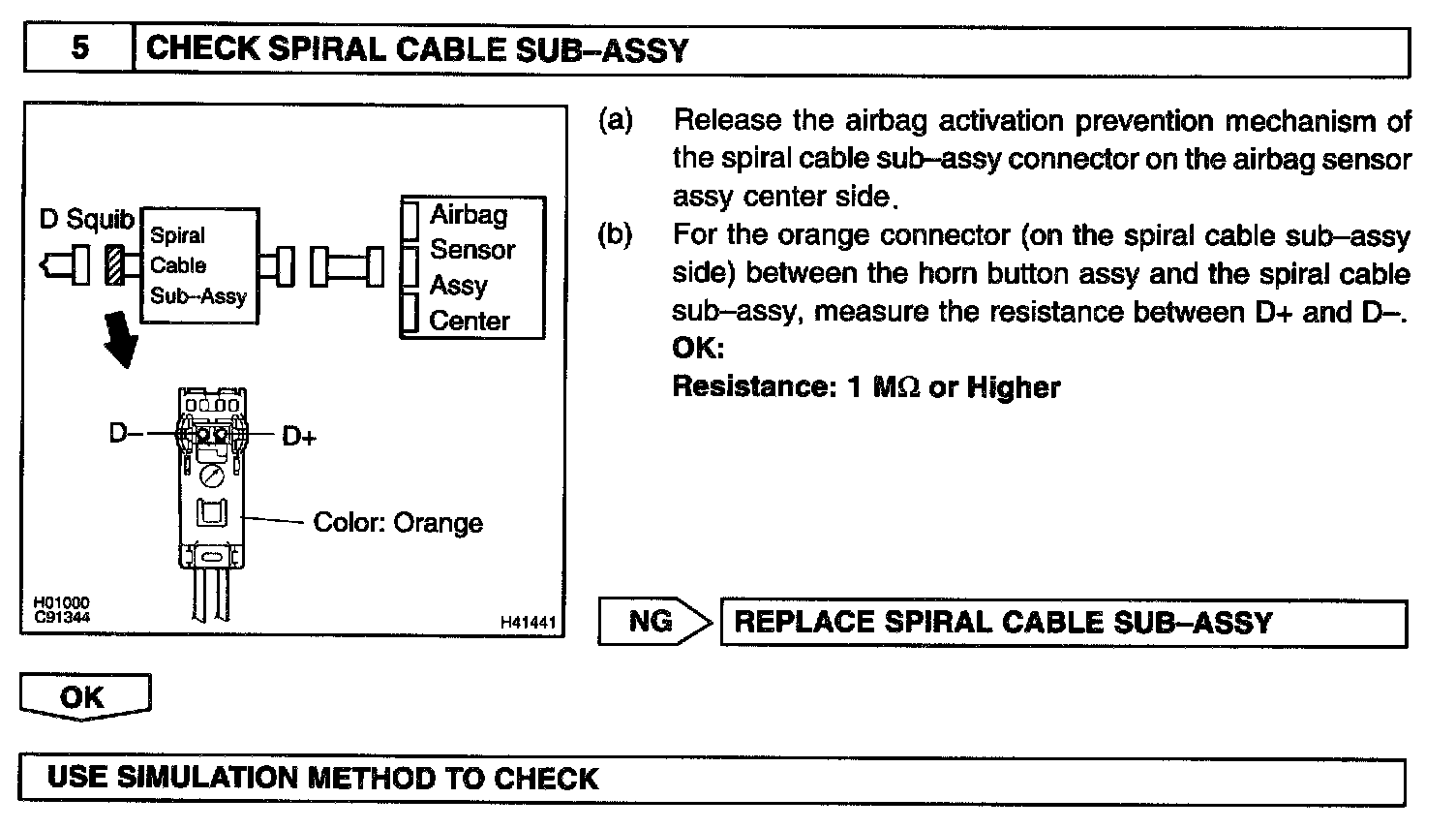

Step 5:

INSPECTION PROCEDURE
