Sensor Power Source Circuit
Sensor Power Source Circuit
CIRCUIT DESCRIPTION
Power to the position sensors is output from ECU.

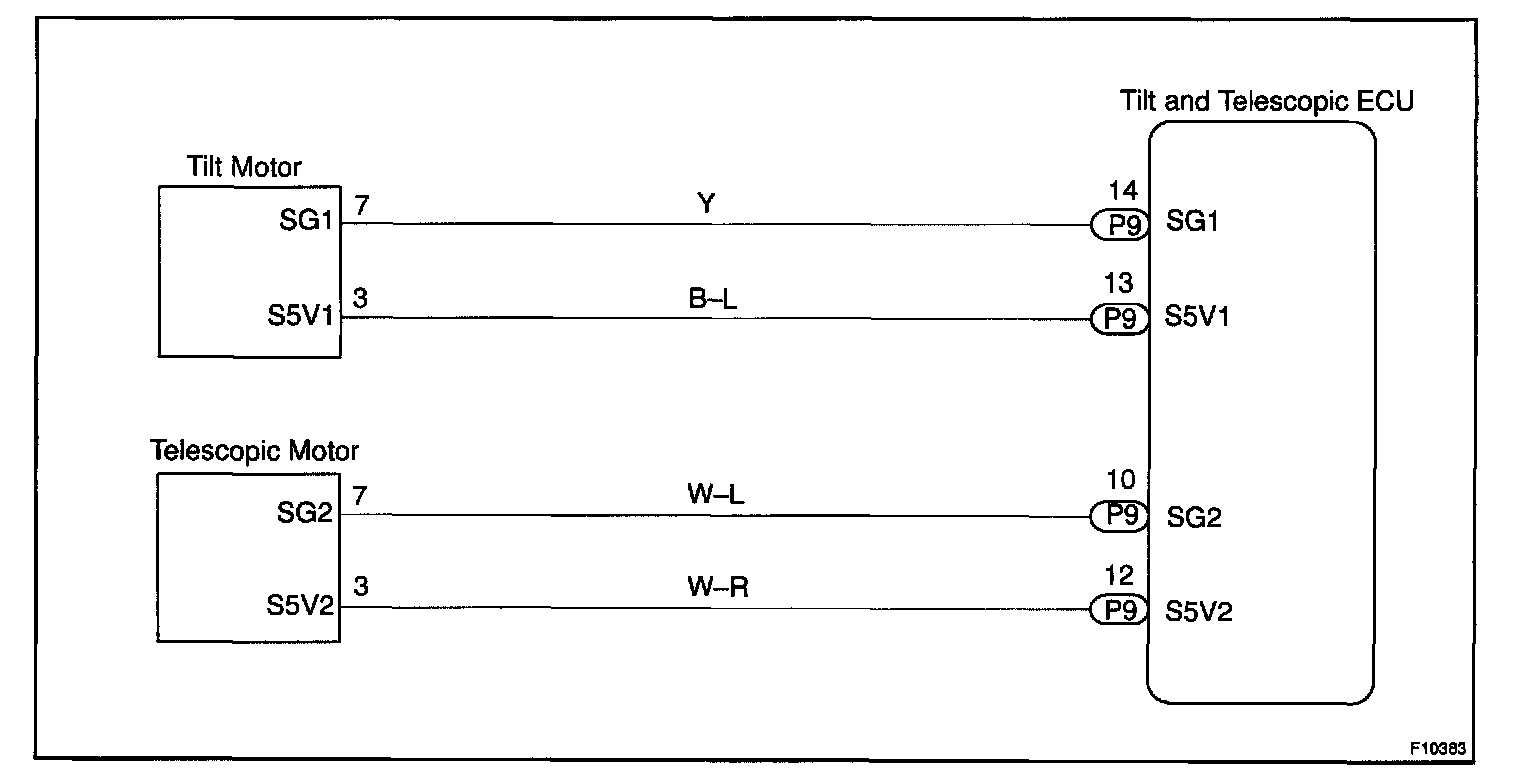

Wiring Diagram:
Step 1:
Steps 2 - 3:

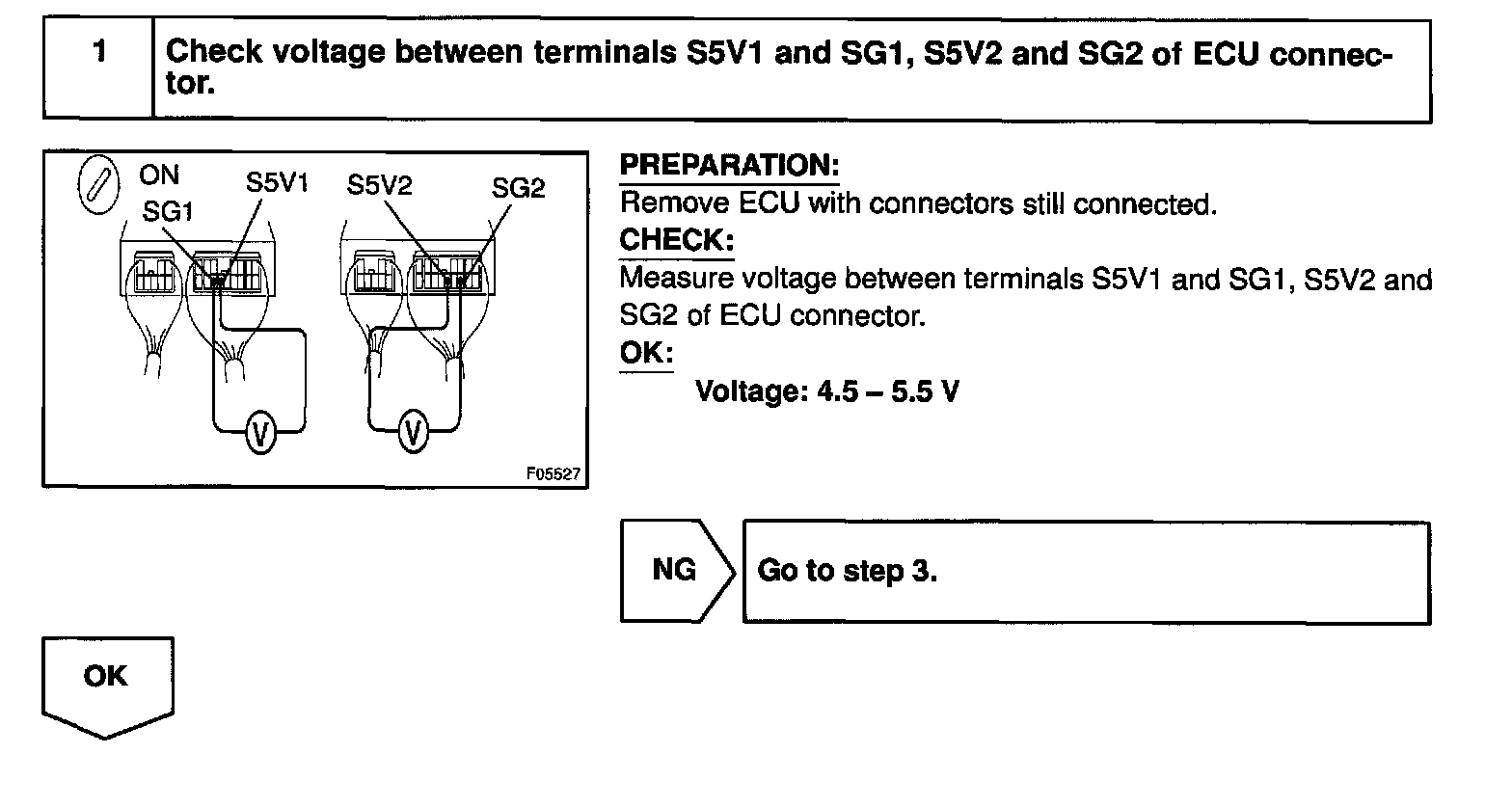

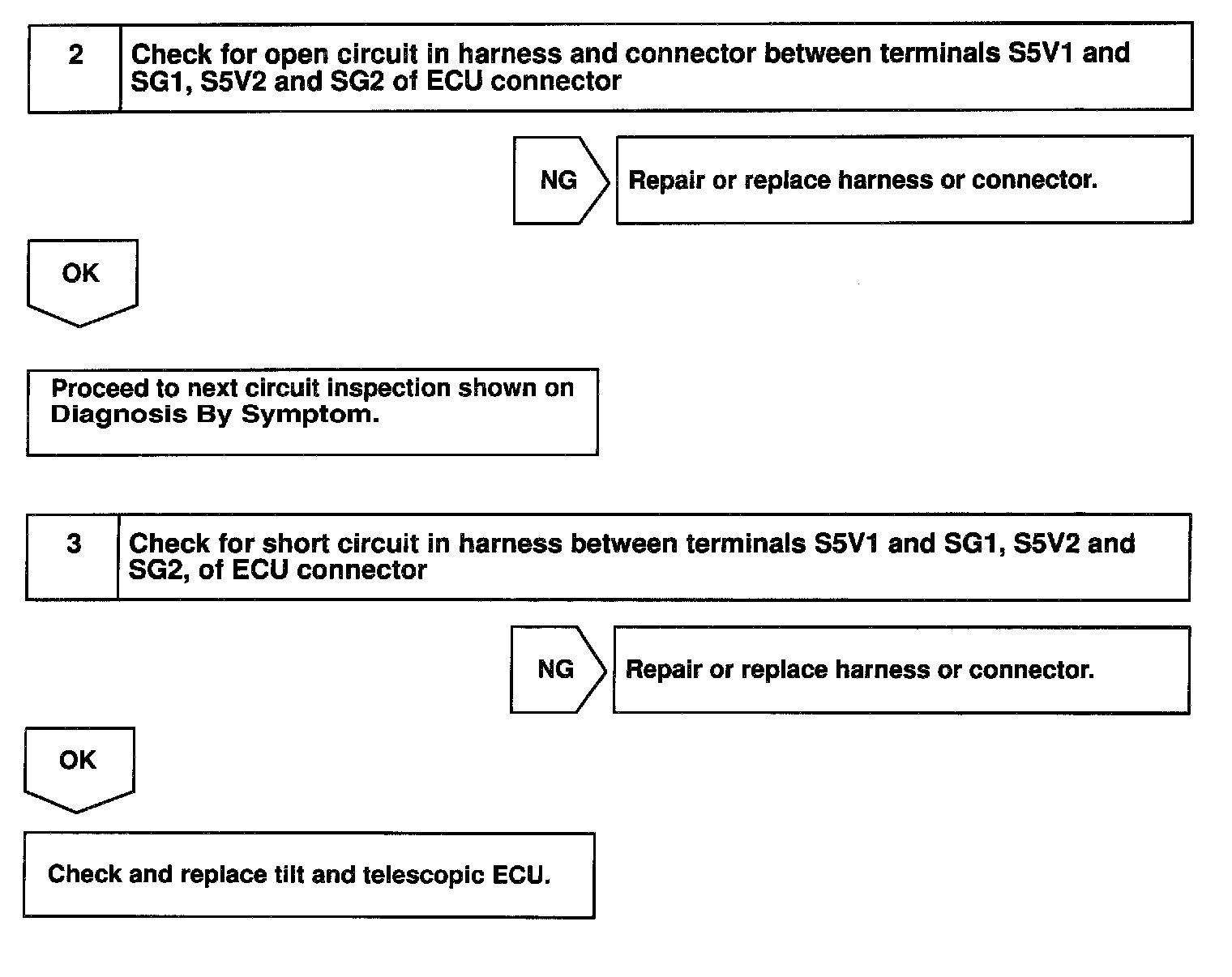

INSPECTION PROCEDURE
