Passenger Seat Belt Tension Reducer Circuit

CIRCUIT DESCRIPTION

Passenger side J/B ECU receives the seat belt buckle switch signal to operate the tension reducer.

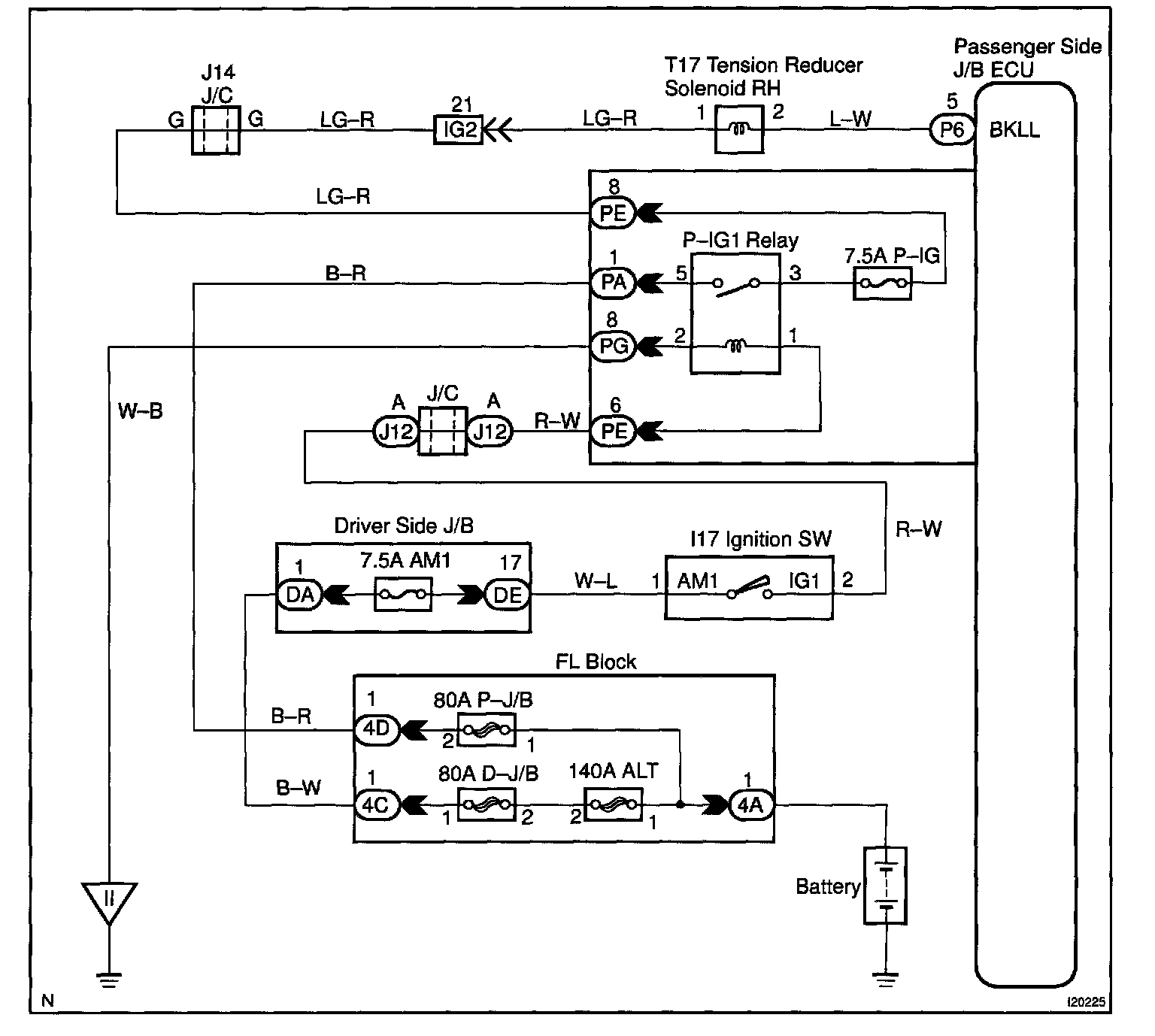

Wiring Diagram:

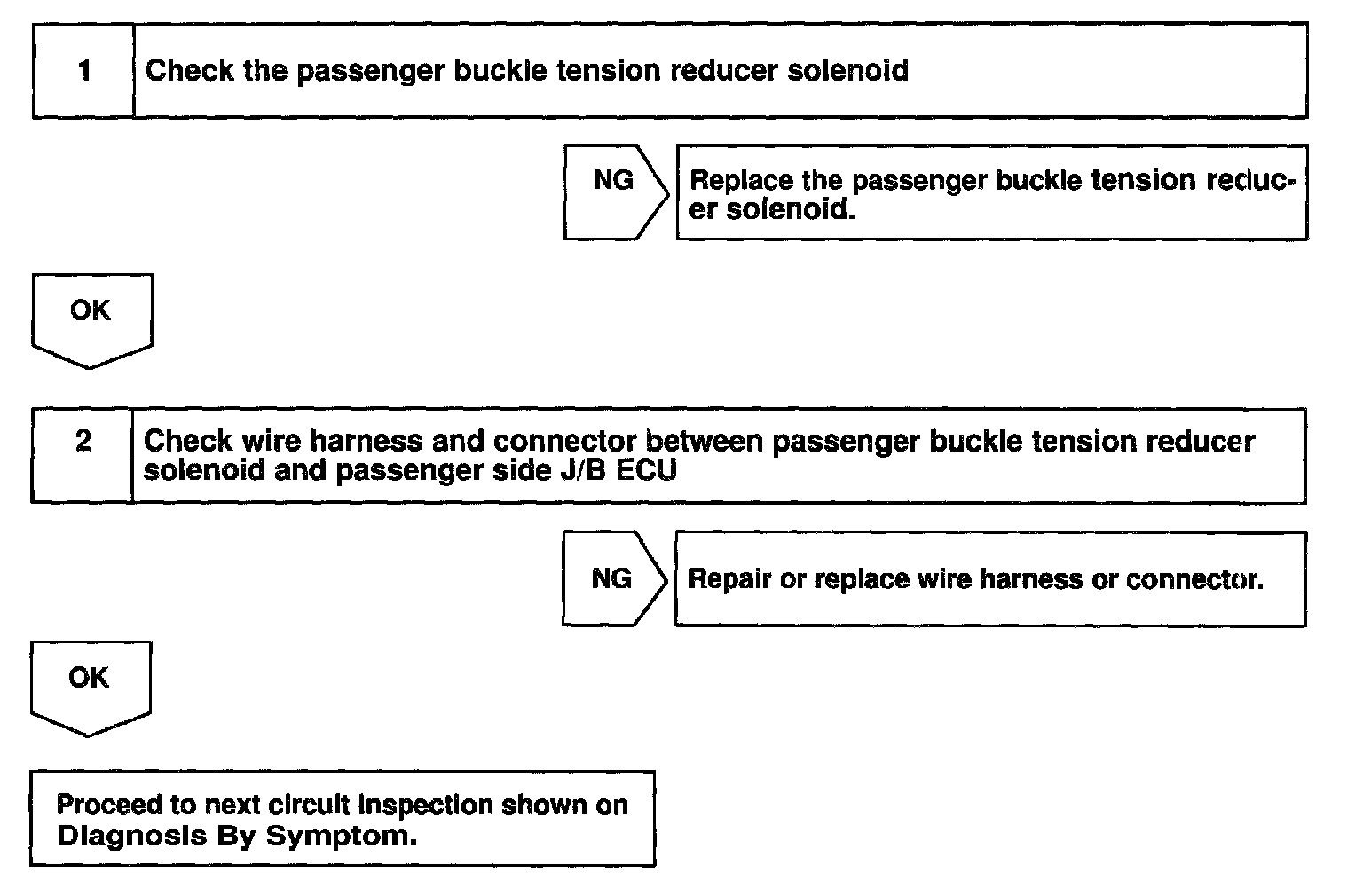

Steps 1 - 2:




INSPECTION PROCEDURE
