Engine Coolant Temperature Gauge

CIRCUIT DESCRIPTION

The combination meter is connected to ECM with the multiplex communication circuit.

It receives the signal of the Engine Coolant temperature sender gauge from ECM to operate the Engine Coolant temperature gauge.

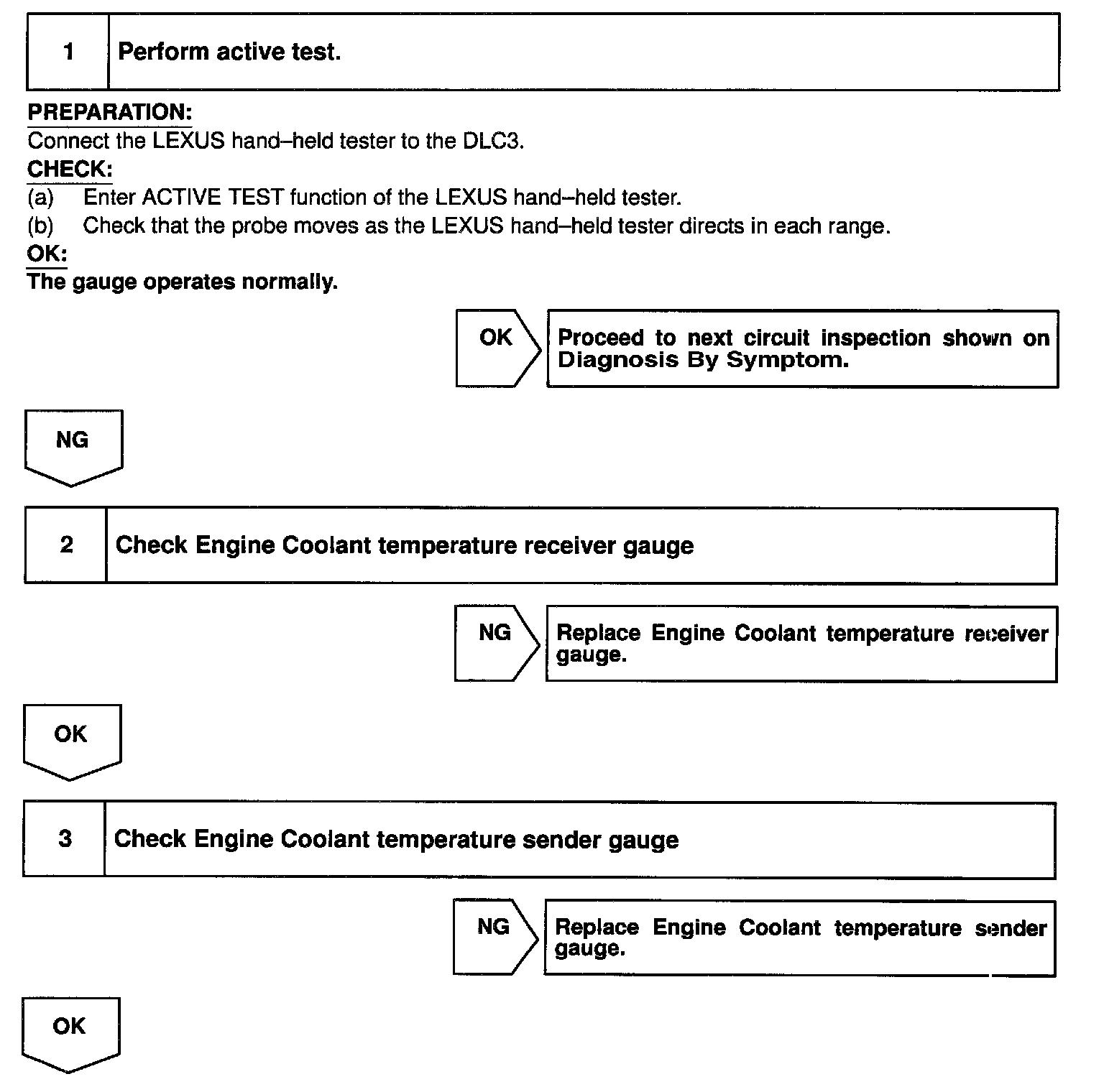

Steps 1 - 3:

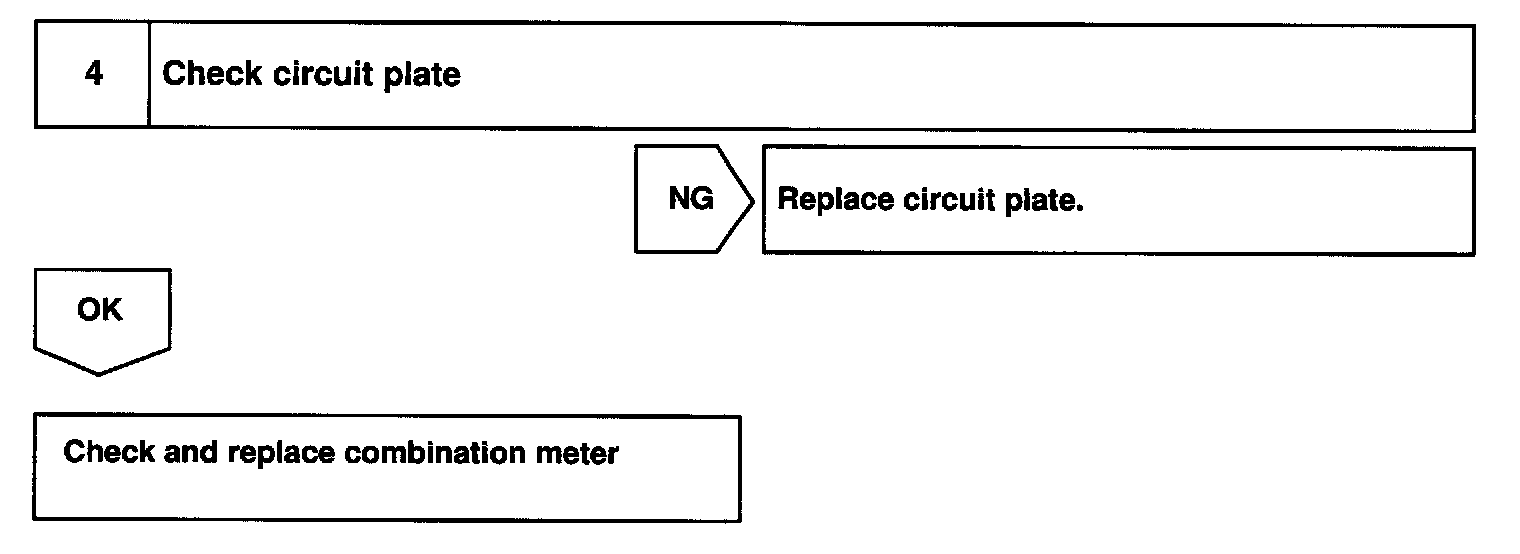

Step 4:

INSPECTION PROCEDURE

HINT: If there is not the LEXUS hand-held tester begin with STEP 2.
