Lexus
>>
2001
>>
LS 430 V8-4.3L (3UZ-FE)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
ACC Power Source Circuit
ACC Power Source Circuit
CIRCUIT DESCRIPTION
This is the power source for A/C ECU and servomotors, etc.

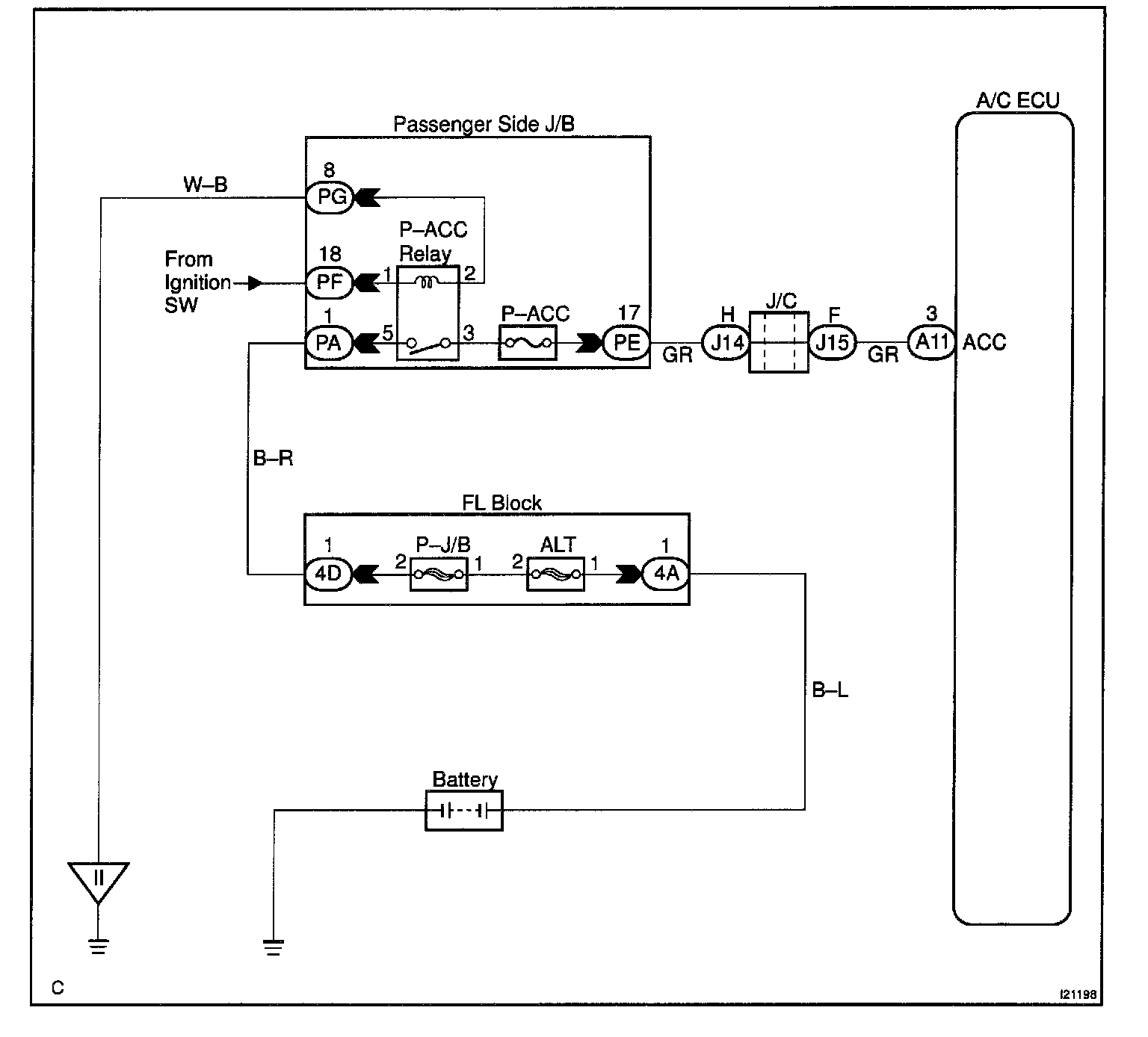

Wiring Diagram:
Steps 1 - 2:
INSPECTION PROCEDURE
