BLOWER UNIT

Blower Unit:






REMOVAL
1. REMOVE FINISH PANEL ASSEMBLY

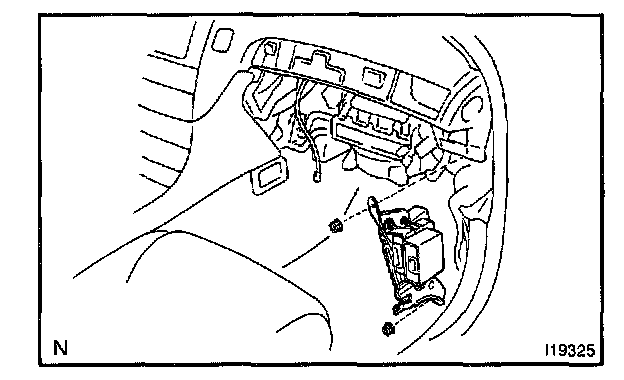

2. REMOVE AIR SUSPENSION AND HEADLIGHT BEAM LEVEL CONTROL ECU
a. Disconnect the connectors.
b. Remove the 2 nut and ECU assembly.




3. REMOVE BLOWER UNIT
a. Disconnect the connectors.
b. Remove the nut and 3 bolts.
c. Remove the blower unit.

INSTALLATION
Installation is in the reverse order of removal




BLOWER MOTOR

REMOVAL

1. REMOVE NO.2 UNDER COVER

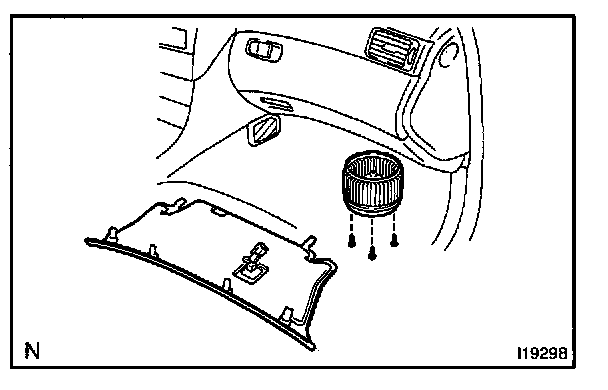

2. REMOVE BLOWER MOTOR
a. Disconnect the connector.
b. Remove the 3 screws and blower motor.

INSTALLATION
Installation is in the reverse order of removal
