Disassembly and Reassembly

BLOWER UNIT

DISASSEMBLY

1. REMOVE AIR REFINER FILTER
2. REMOVE BLOWER MOTOR

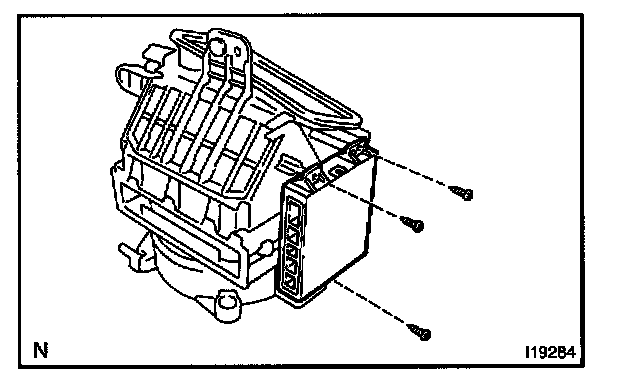

3. REMOVE A/C ECU
Remove the 3 screws and A/C ECU.

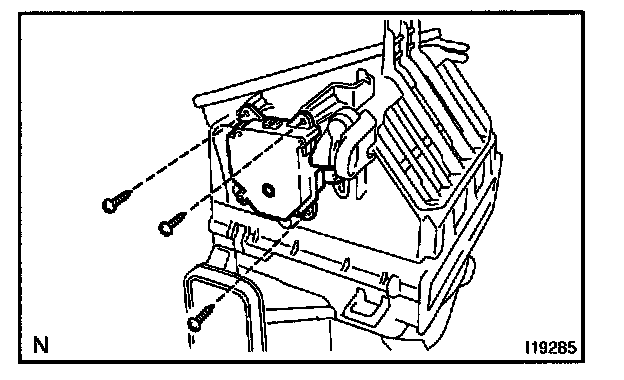

4. REMOVE AIR INLET SERVOMOTOR
Remove the 3 screws and the inlet servomotor.

REASSEMBLY
Reassembly is in the reverse order of disassembly.
