Seat

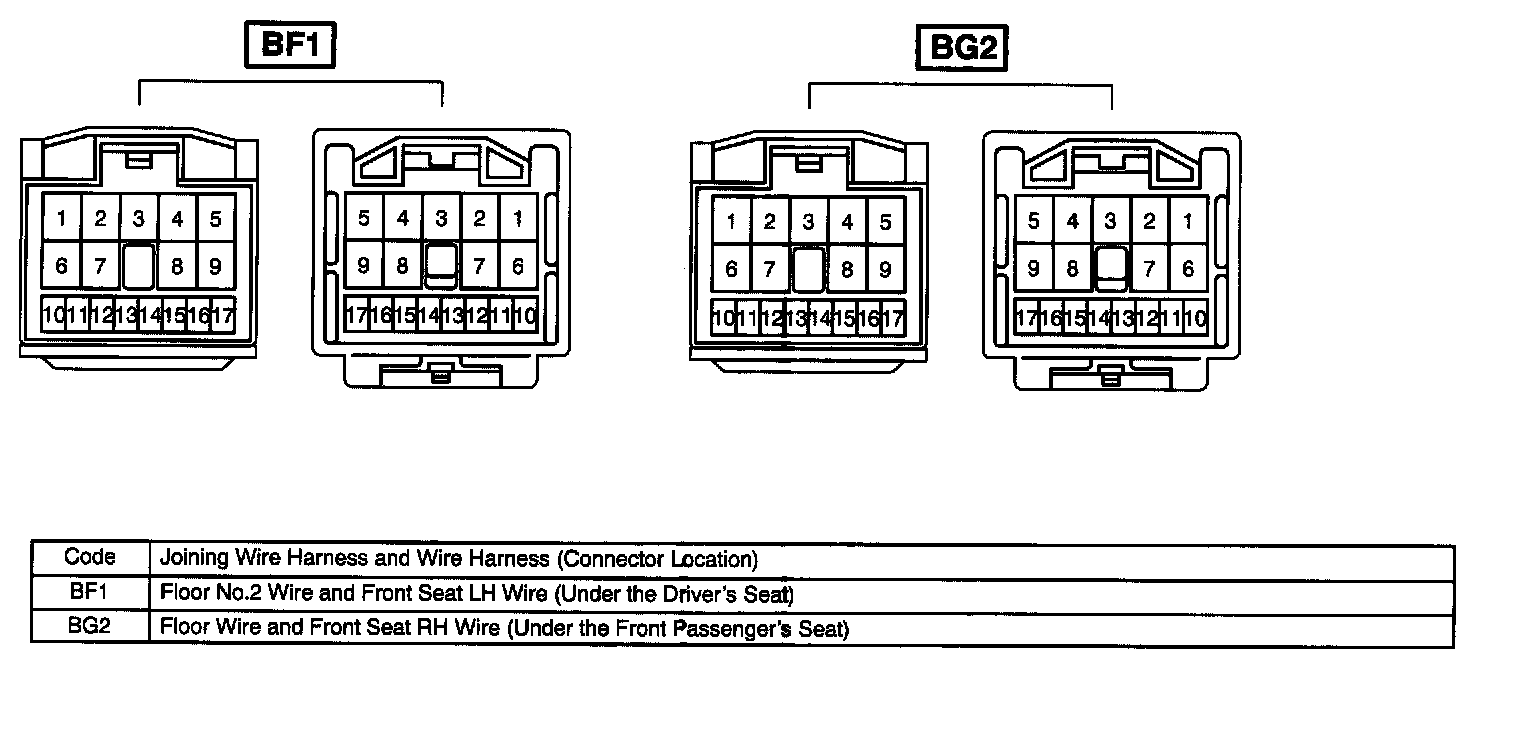

Wire Harness To Wire Harness Connectors (BF1, BG2):

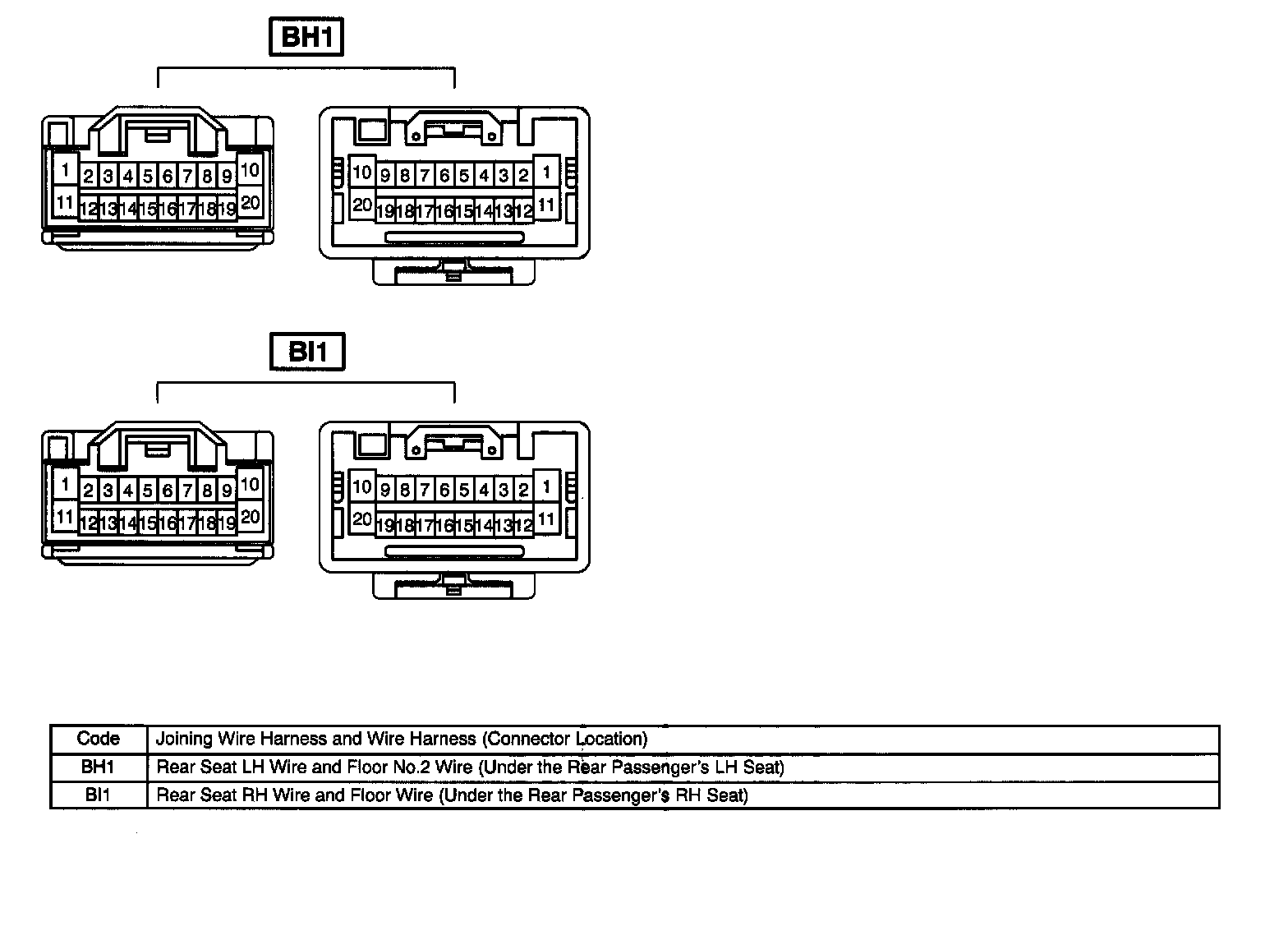

Wire Harness To Wire Harness Connectors (BH1, BI1):
