Parking Brake Shoe: Service and Repair

DISASSEMBLY
1. REMOVE REAR WHEEL





2. REMOVE BRAKE CALIPER ASSEMBLY
a) Right wheel: Disconnect the pad wear indicator wire harness from the clamp.
b) Remove the 2 bolts and brake caliper assembly.
Torque: 78 Nm (800 kgf-cm, 58 ft. lbs.)

HINT: Do not disconnect the flexible hose from the brake caliper.

c) Suspend the brake caliper securely. Make sure the hose is not stretched.





3. REMOVE DISC

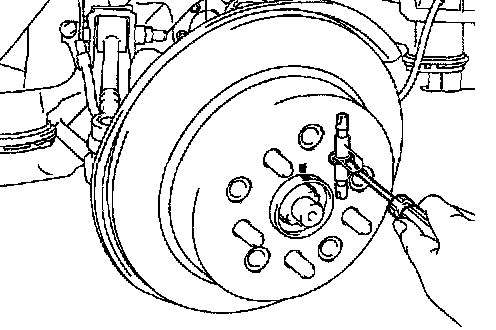

a) Place matchmarks on the disc and rear axle hub.
b) Remove the disc.

HINT: If the disc cannot be removed easily, contract the shoe adjuster until the wheel turns freely.

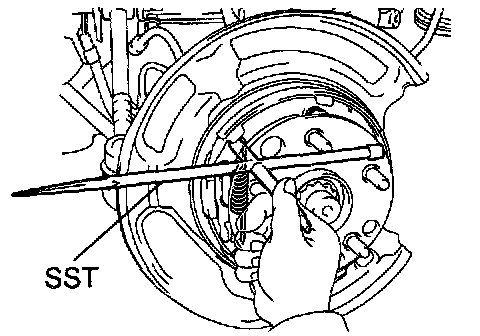

4. REMOVE SHOE RETURN SPRING
Using SST, remove the shoe return spring.
SST 09703-30010





5. REMOVE UPPER SHOE, ADJUSTER AND TENSION SPRING

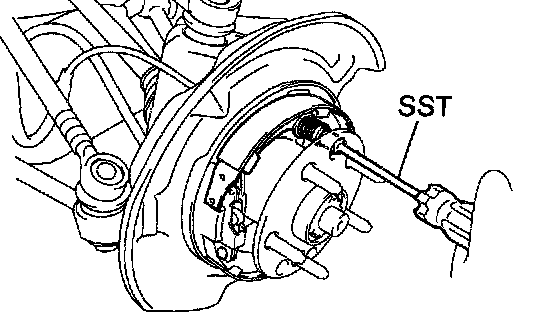

a) Using SST, remove the cap, shoe hold-down spring and pin.
SST 09718-00010
b) Disconnect the tension spring from the upper shoe.
c) Remove the upper shoe and shoe adjuster.





6. REMOVE LOWER SHOE
a) Remove the tension spring from the lower shoe.
b) Using SST, remove the cap, shoe hold-down spring and pin.
SST 0971-00010
c) Remove the lower shoe.





7. REMOVE PARKING BRAKE SHOE LEVER
Disconnect the parking brake cable, and remove the parking brake shoe lever.





NOTICE: At the time of reassembly, carefully to distinguish the parking brake shoe lever for RH from the one for LH.

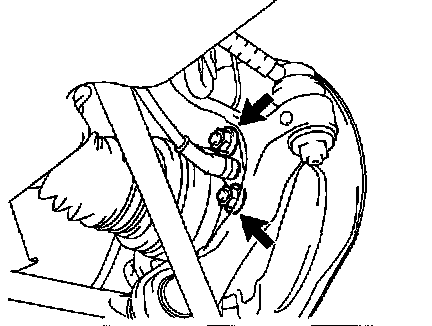

8. REMOVE ANCHOR BLOCK
Remove the 2 nuts and anchor block from the rear axle carrier.
Torque: 76 Nm (775 kgf-cm, 56 ft. lbs.)

INSPECTION
1. INSPECT DISASSEMBLED PARTS
Inspect the disassembled parts for wear, rust or damage.

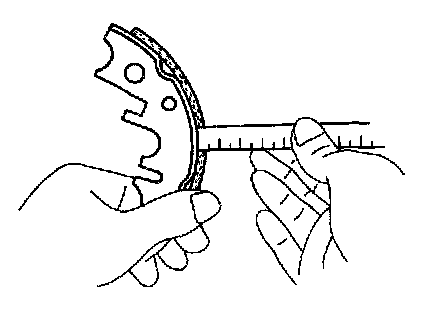

2. MEASURE BRAKE SHOE LINING THICKNESS
Using a ruler, measure the thickness of the shoe lining.
Standard thickness: 3.5 mm (0.138 inch)
Minimum thickness: 1.0 mm (0.039 inch)
If the lining thickness is at the minimum or less, or if there is severe, uneven wear, replace the brake shoe.

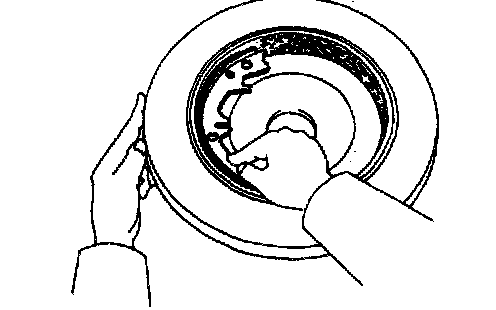

3. MEASURE DISC INSIDE DIAMETER
Using a brake drum gauge or equivalent, measure the inside diameter of the disc.
Standard inside diameter: 190 mm (7.48 inch)
Maximum inside diameter: 191 mm (7.52 inch)
Replace the disc if the inside diameter is at the maximum value or more. Replace the disc or grind it with a lathe if the disc is scored or worn unevenly.





4. INSPECT PARKING BRAKE LINING AND DISC FOR PROPER CONTACT
Apply chalk to the inside surface of the disc, then grind down the brake shoe lining to fit. If the contact between the disc and the brake shoe lining is improper, repair it using a brake shoe grinder or replace the brake shoe assembly.

REASSEMBLY
Reassembly is to be done in the reverse order of disassembly.

NOTICE: Apply high temperature grease to the parts indicated by the arrows.

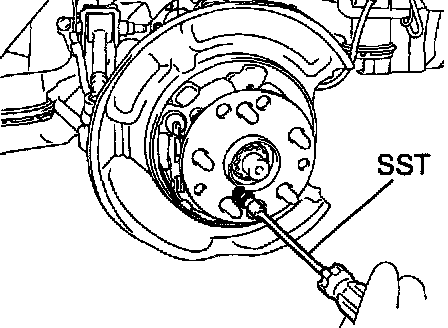

1. ADJUST PARKING BRAKE SHOE CLEARANCE
a) Temporarily install the hub nuts.
b) Remove the hole plug.
c) Turn the adjuster and expand the shoes until the disc locks.
d) Return the adjuster 7 notches.
e) Install the hole plug.
2. SETTLING PARKING BRAKE SHOES AND DISC
a) Drive the vehicle at about 50 km/h (31 mph) on a safe, level and dry road.
b) Depress the parking brake pedal with a force of 150 N (15 kgf, 34 lbs.).
c) Drive the vehicle for about 400 meters (0.25 mile) in this condition.
d) Repeat this procedure 2 or 3 times.
3. CHECK AND ADJUST PARKING BRAKE PEDAL TRAVEL
