Always On - Malfunction In ECU VSC Warning Indicator Circuit

CIRCUIT DESCRIPTION

DTC Detecting Condition:

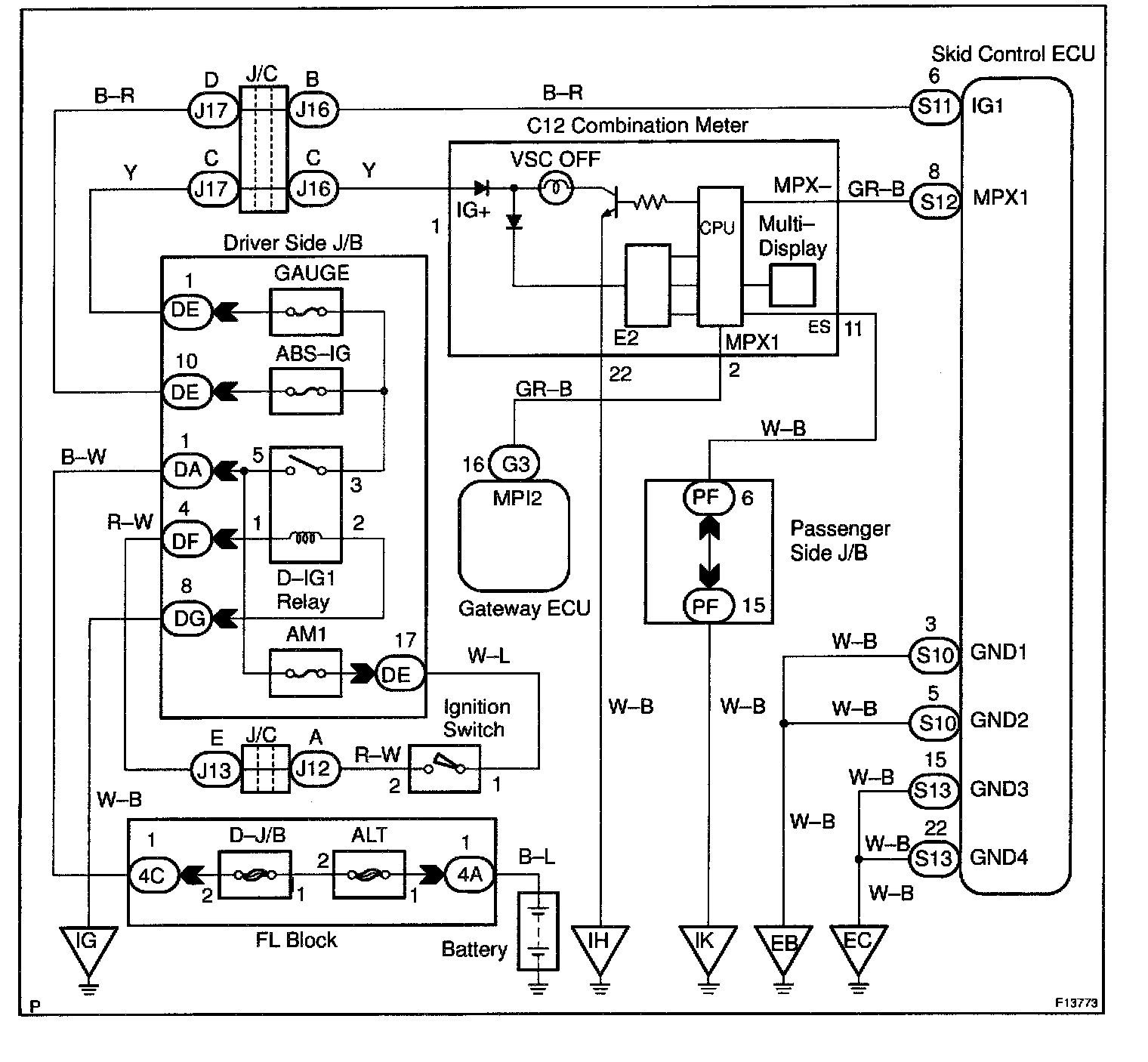

Wiring Diagram:

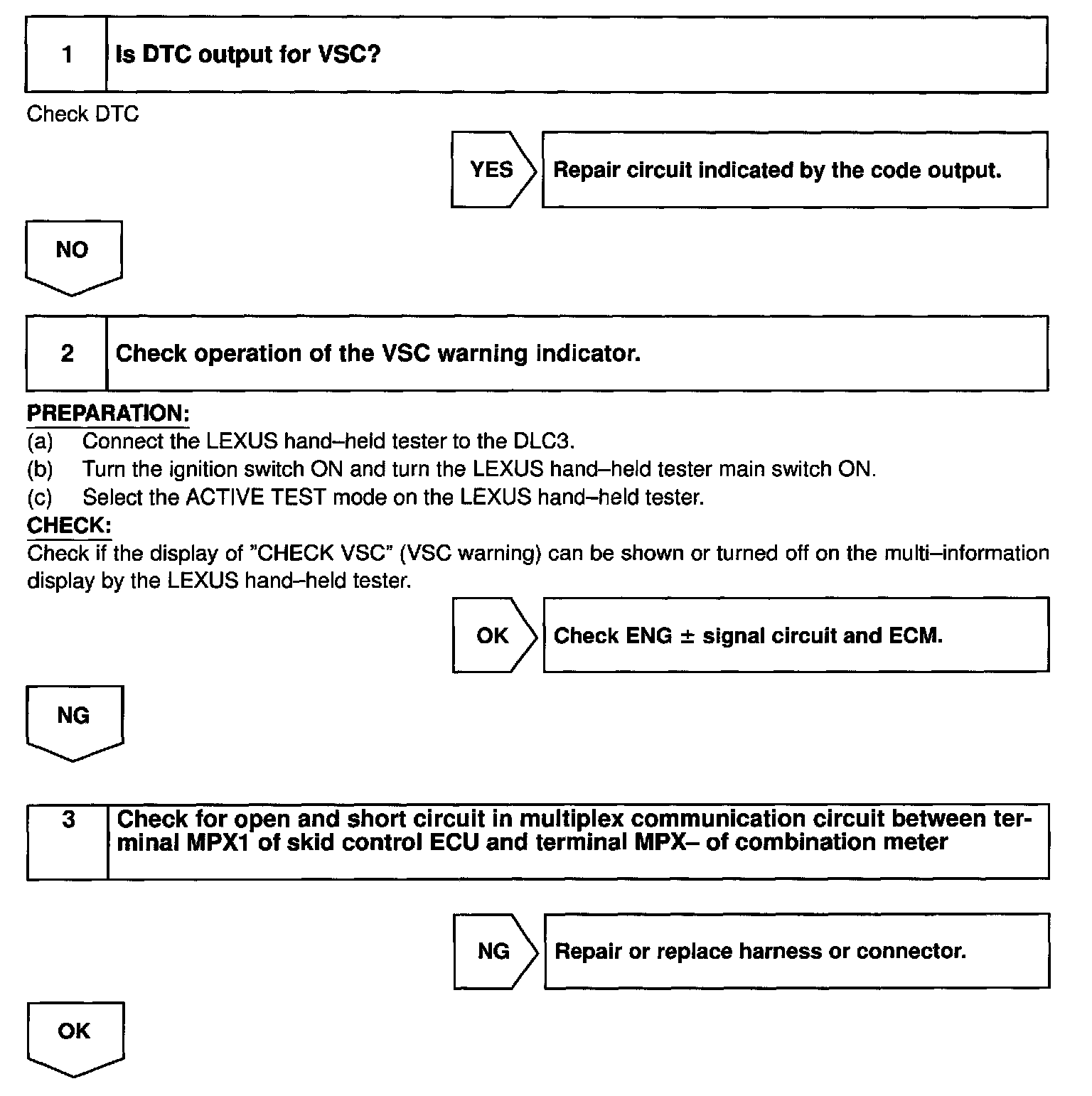

Steps 1 - 3:

Steps 4 - 7:

Steps 8 - 9:

INSPECTION PROCEDURE

HINT: Start the inspection from step 1 in case of using the LEXUS hand-held tester and start from step 5 in case of not using the LEXUS hand-held tester.
