Rear Left Seat Control System
Rear Left Seat Control System

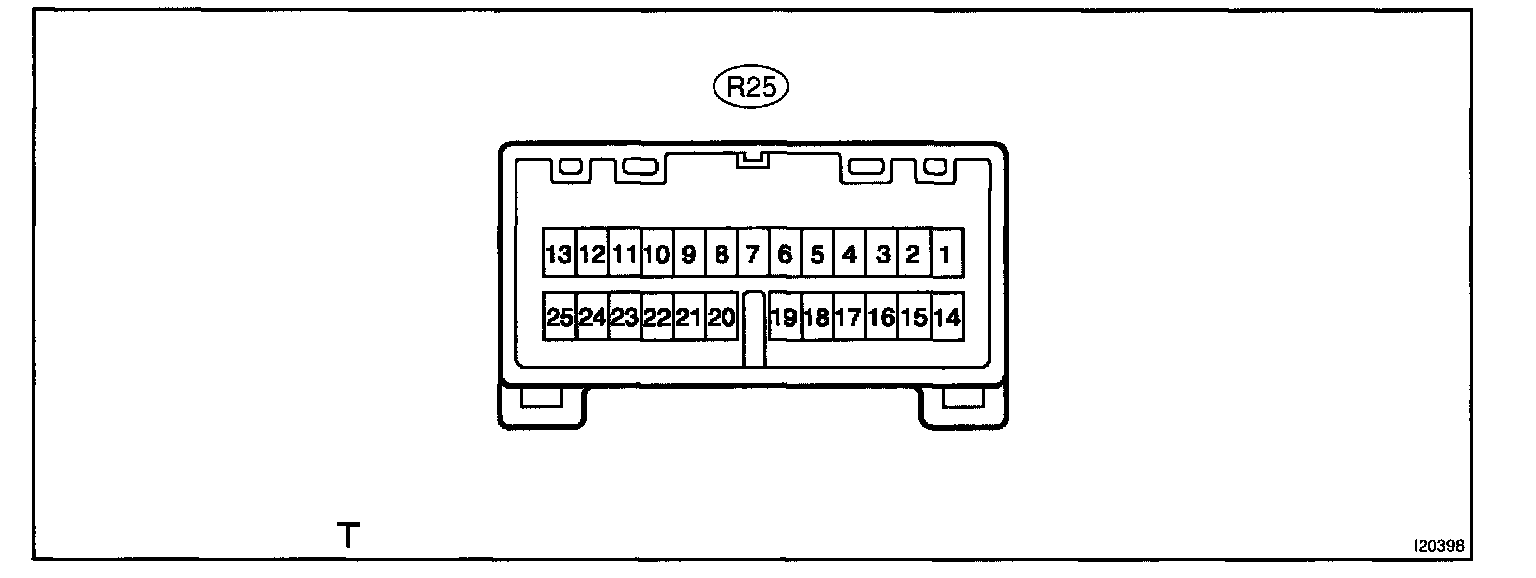

Terminals Of ECU - Connector View:

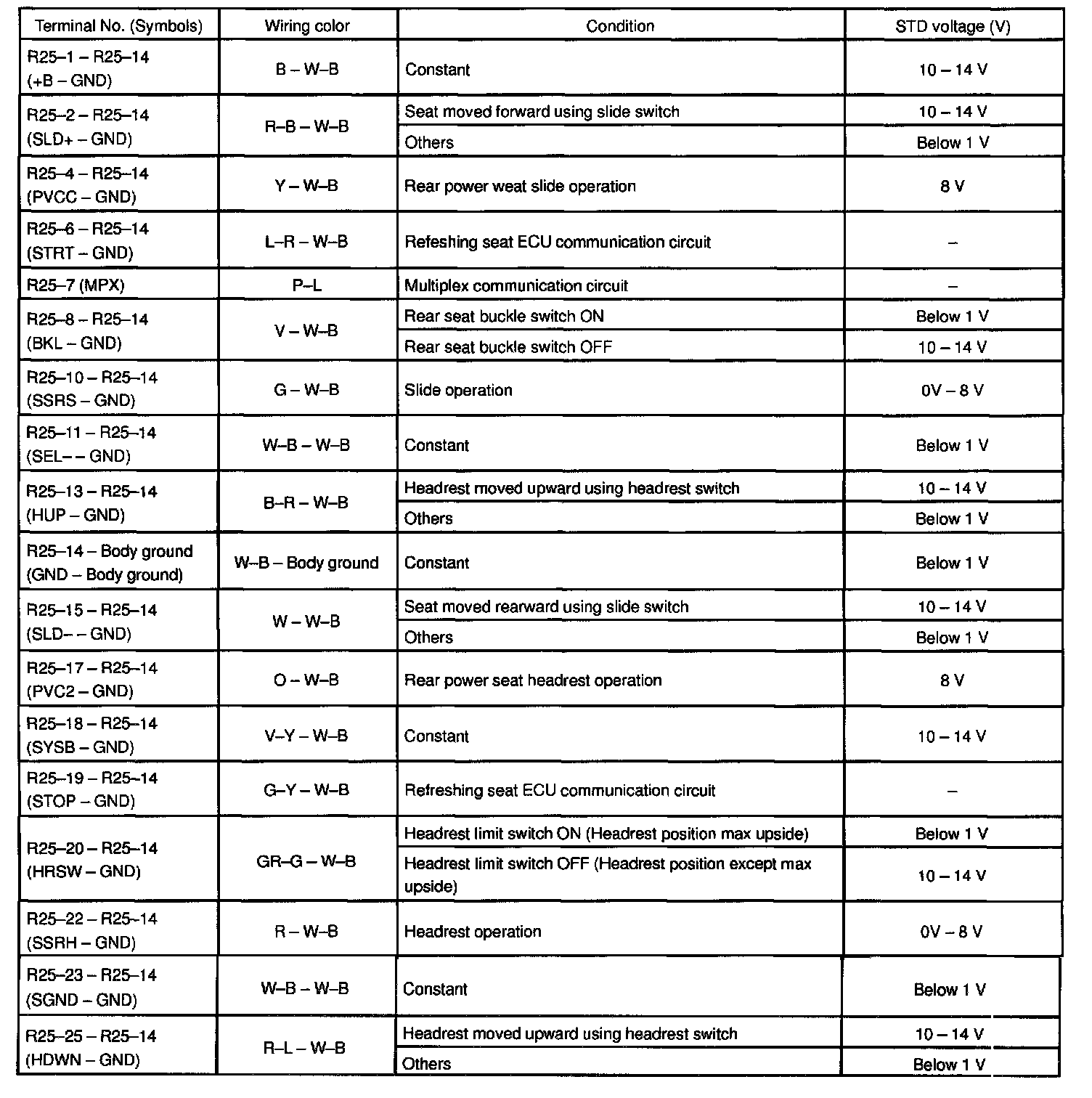

Terminals Of ECU - Pinouts:
