Vibration Seat ECU Communication Circuit
CIRCUIT DESCRIPTIONThe Rear RH Seat ECU sends a command toward the Vibration Seat ECU to operate the vibration seat function.

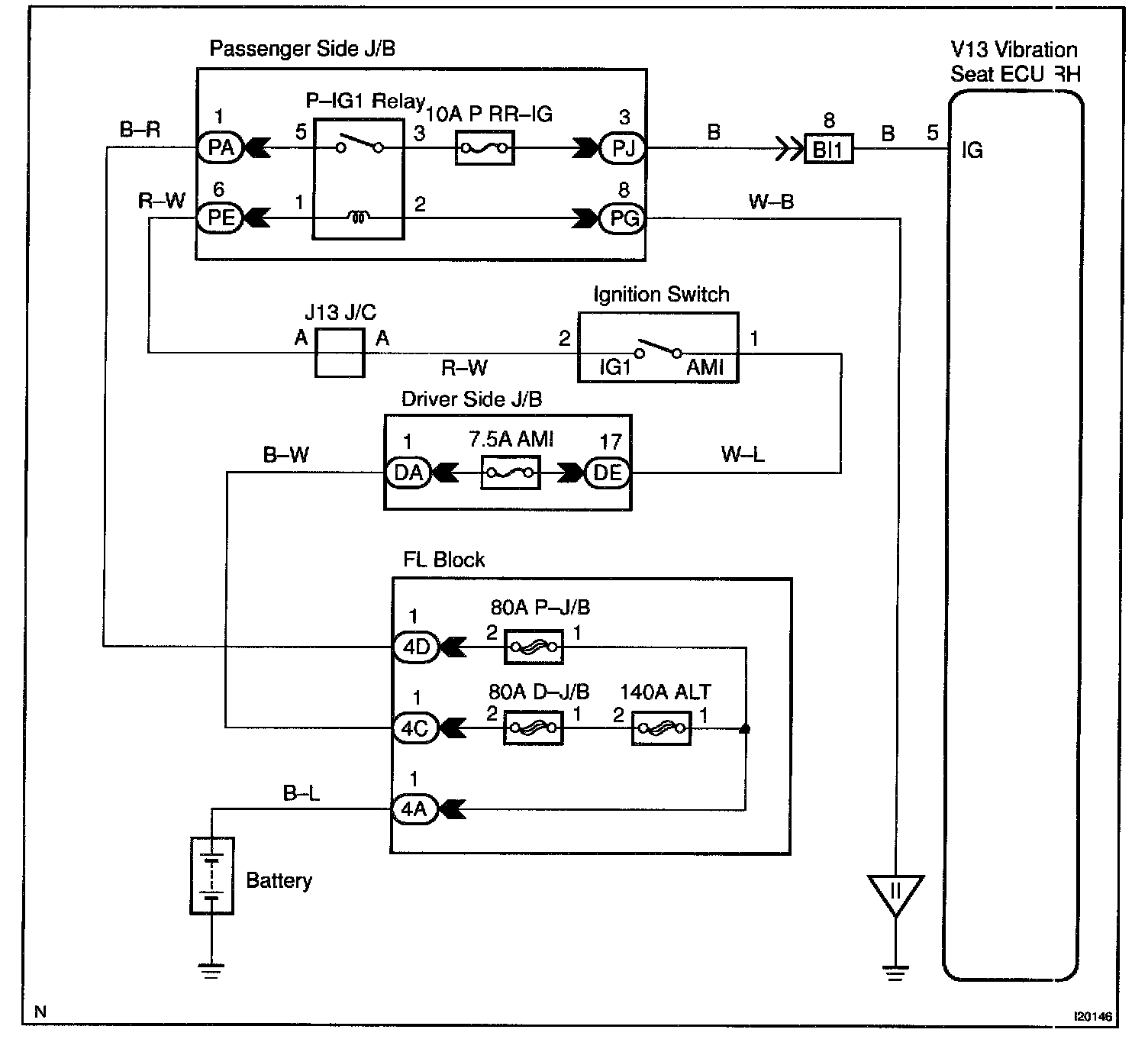

Wiring Diagram:

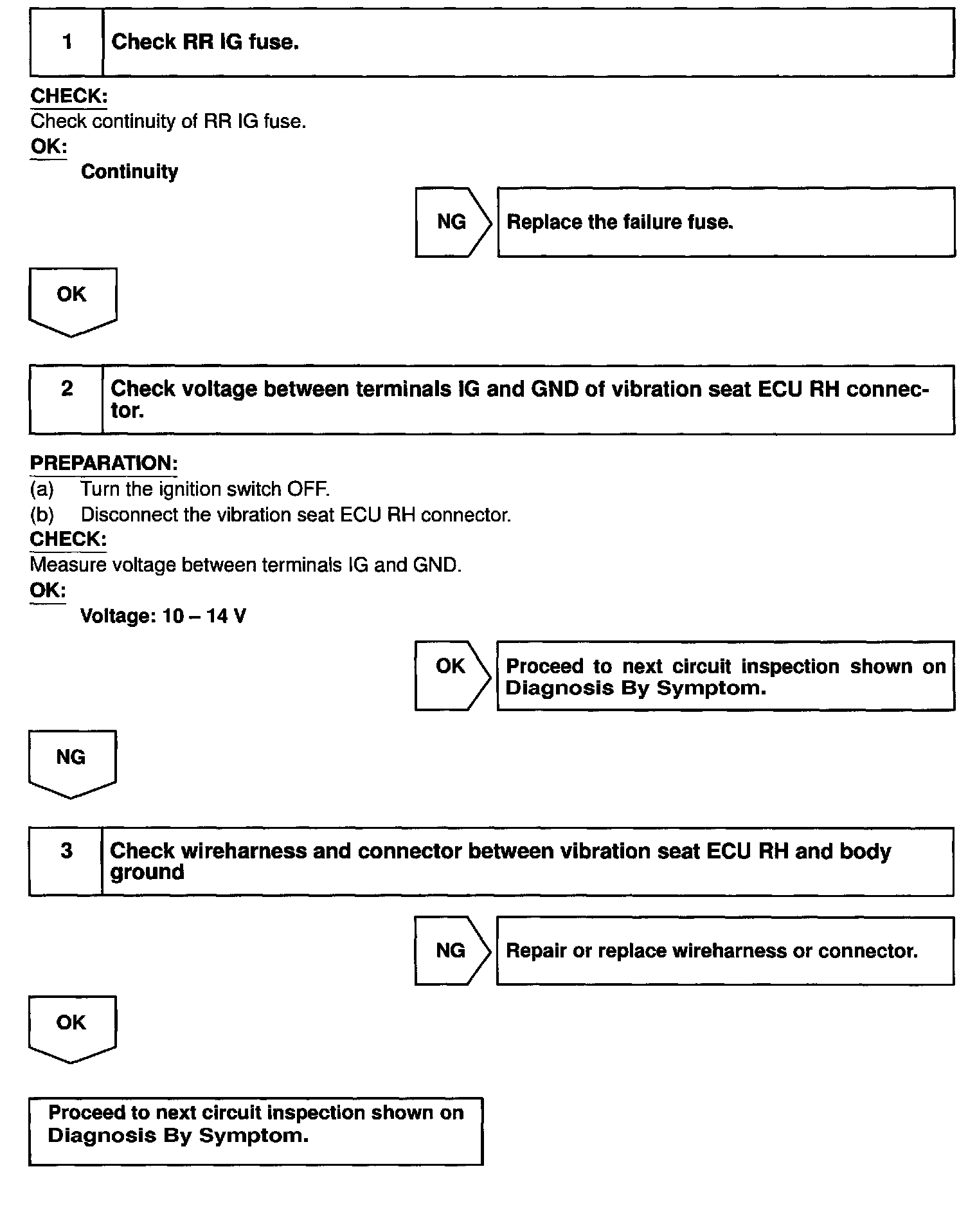

Steps 1 - 3:
INSPECTION PROCEDURE
The Rear RH Seat ECU sends a command toward the Vibration Seat ECU to operate the vibration seat function.
INSPECTION PROCEDURE
