Climate Control Seat System
>>
Diagnosis By Blink Pattern
>>

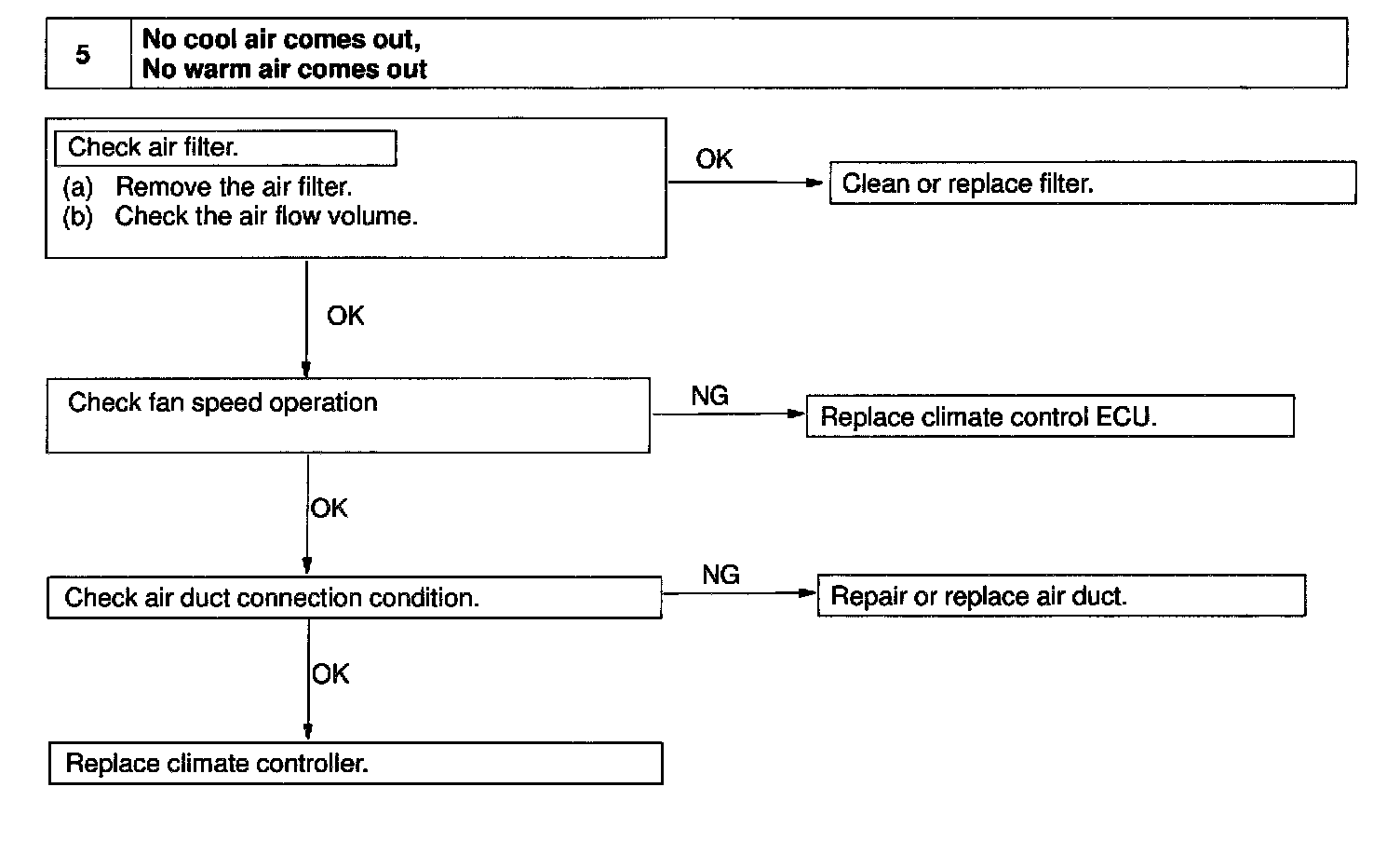

05 - No Cool or Warm Air Comes Out
05 - No Cool or Warm Air Comes Out
Step 5:
