Canada - Body - Wind Noise, Door Mirror

Bulletin
0480

Issue Date
2001-08-20

Market
Canada

Reference
BC-01-021

Model
LS430

Year Range
2001

Component
BC

Subject:
DOOR MIRROR WIND NOISE REDUCTION


To reduce wind noise at the door mirror, the length of the foam fitted to the door mirror base has been extended. In addition, the electrical taping area has been extended. The following field fix procedure has been developed for 2001 model year LS430 vehicles built before the production change.

APPLICABLE VEHICLES: 2001 model year LS430 vehicles.

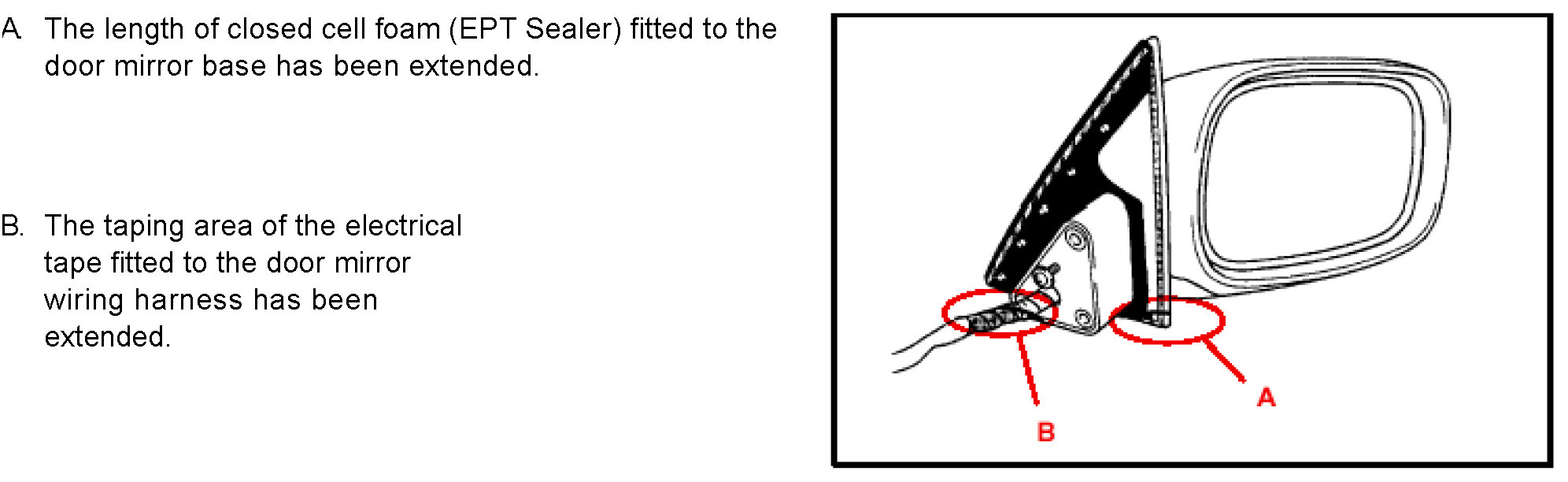

PRODUCTION CHANGE INFORMATION:







PARTS INFORMATION:

REPAIR PROCEDURE:

Field Fix Method







Fit a piece of closed cell foam (EPT Sealer) to the door mirror base as shown.

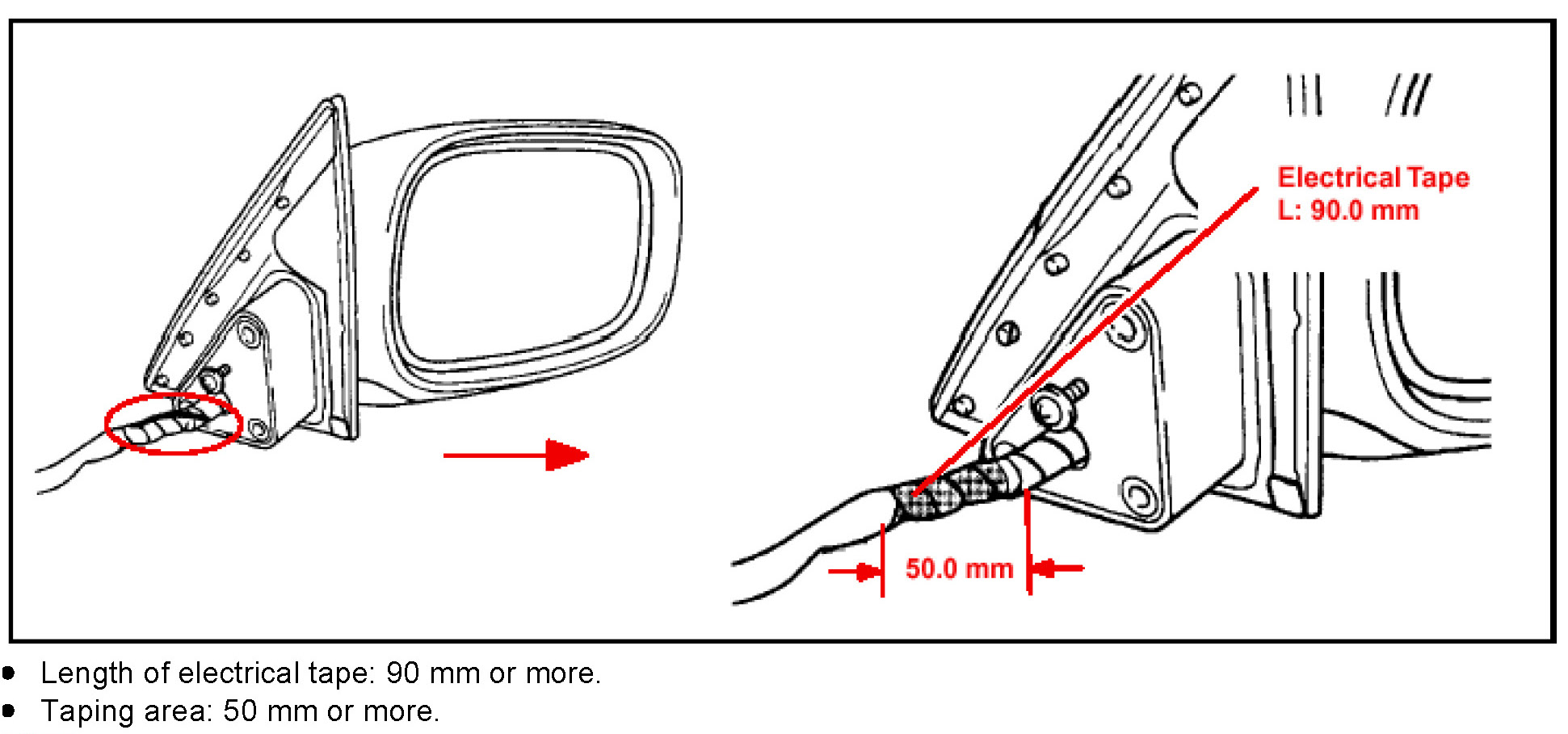

Wind additional electrical tape around the wiring harness as shown.

NOTE:
After installing the door mirror, confirm the electrical tape is not coming off and is not floating.

Please refer to the 2001 LS430 Repair Manual (Pub No. RM812U2 Vol. 2).







REPAIR TIME:

NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
