Reassembly Procedure

1. Install the outside handle.

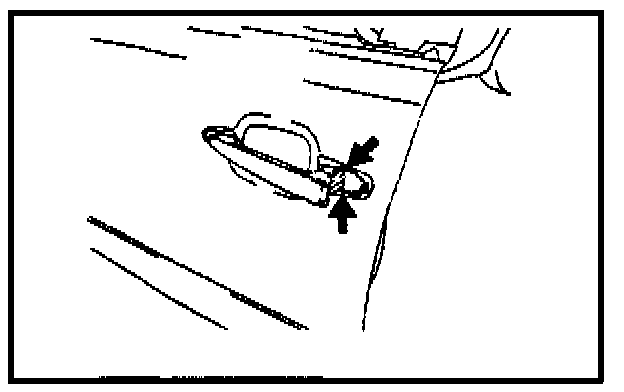

A. Insert the hinged portion into the hole in the door.

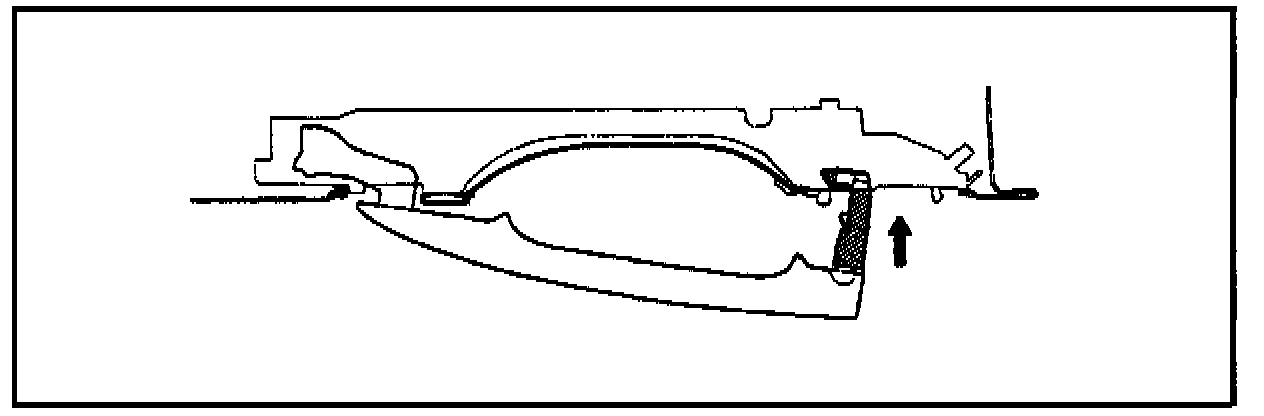

B. While checking that there is no interference between the body panel and the handle guide, slowly push the outside handle in until the bottom of the outside handle engages with the protruding part of the body panel.





NOTE:
If the handle guide gets caught, do not continue pushing. Check that the handle guide is not damaged or deformed and try again. If there is any damage or deformation, replace the handle.

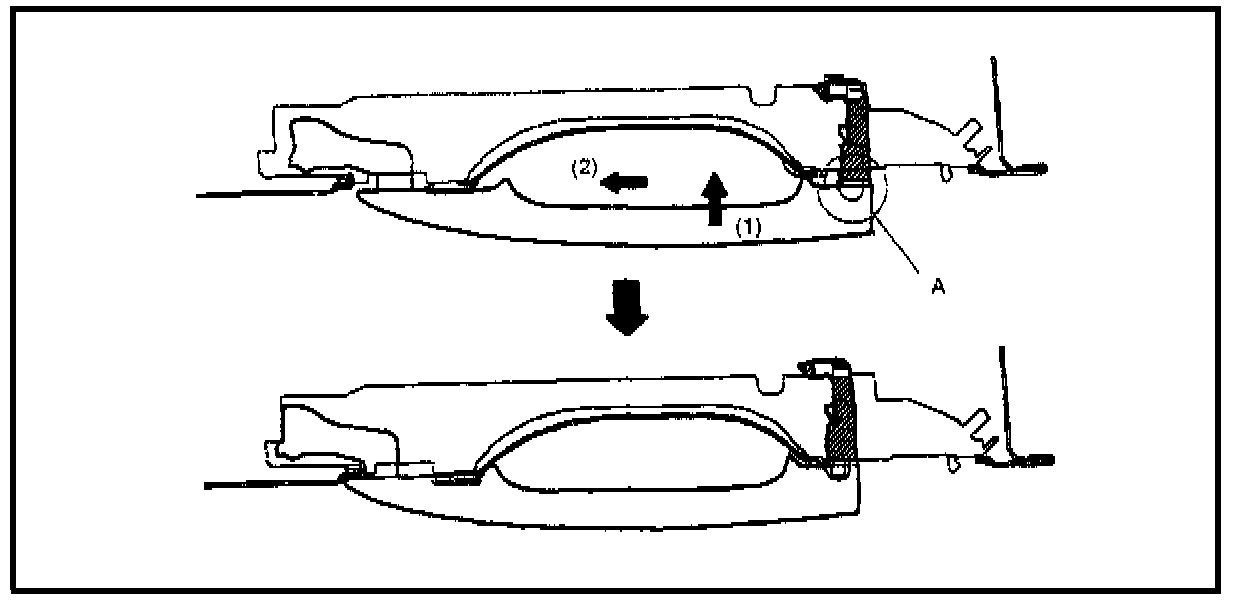

C. While lightly pressing the bottom of the outside handle against the protruding part of the body panel (A), install the outside handle by pushing it in toward the vehicle.

2. The remainder of REASSEMBLY is in the reverse order of DISASSEMBLY.
