Disassembly Procedure

1. Remove the No. 2 door inside handle bezel.

2. Remove the armrest base panel assembly.

3. Remove the courtesy light assembly.

4. Remove the door trim.

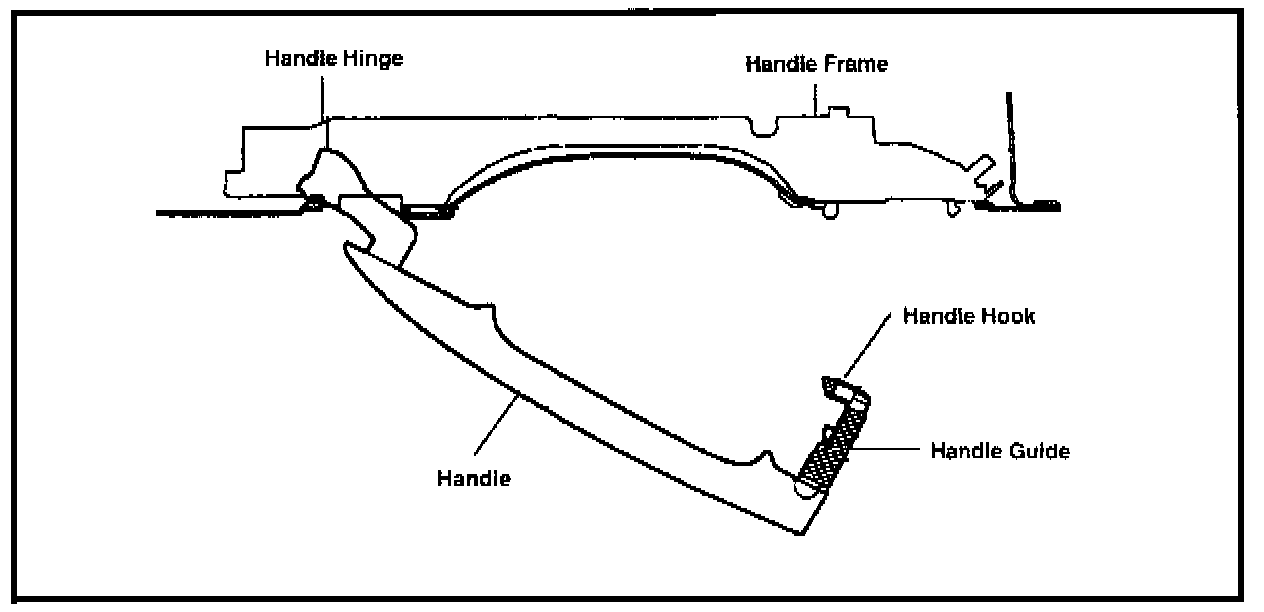

5. Remove the outside handle cover.

6. Remove the outside handle.

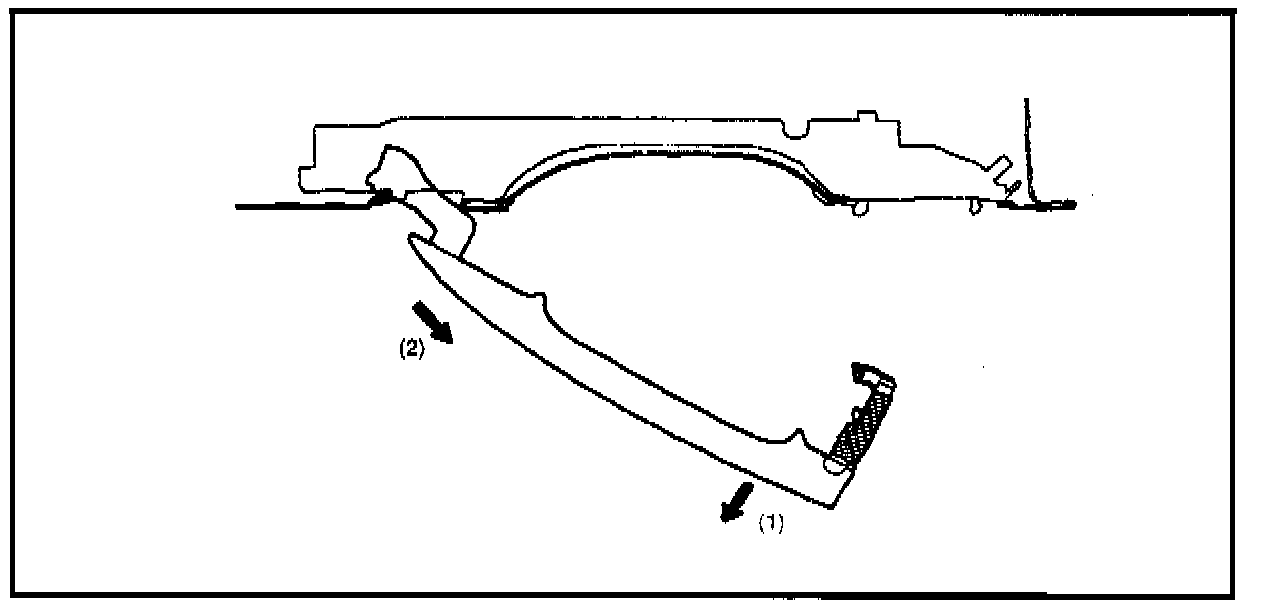

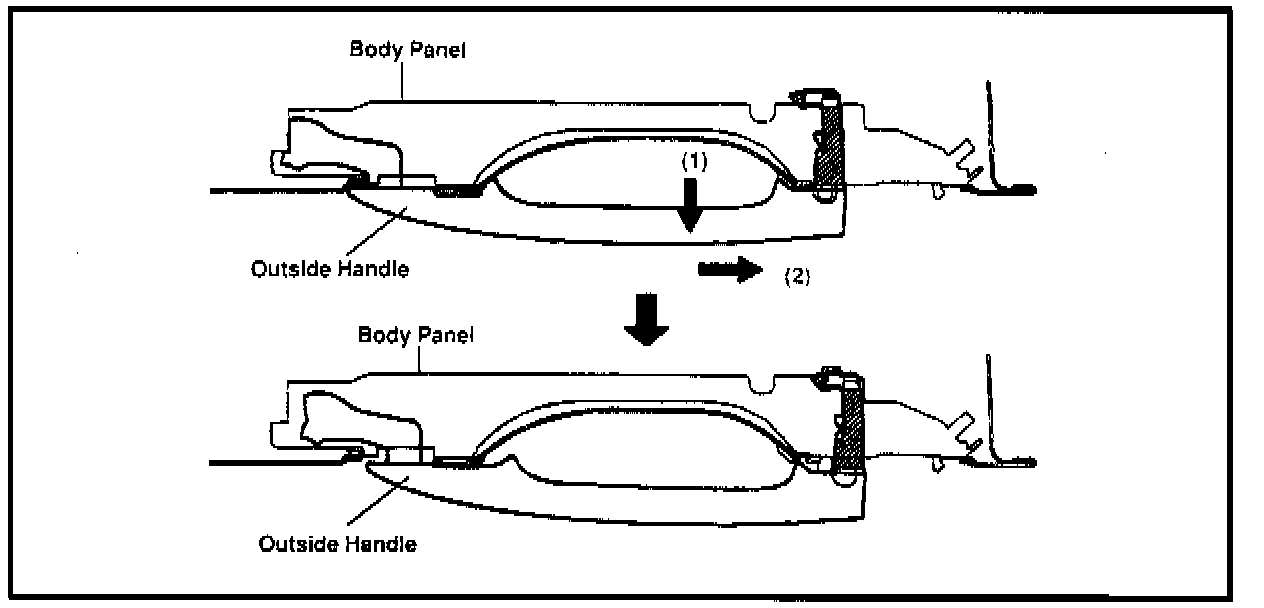

A. Pull the outside handle slightly away from the vehicle and move rearward until the bottom of the outside handle disengages from the protruding part of the body panel.

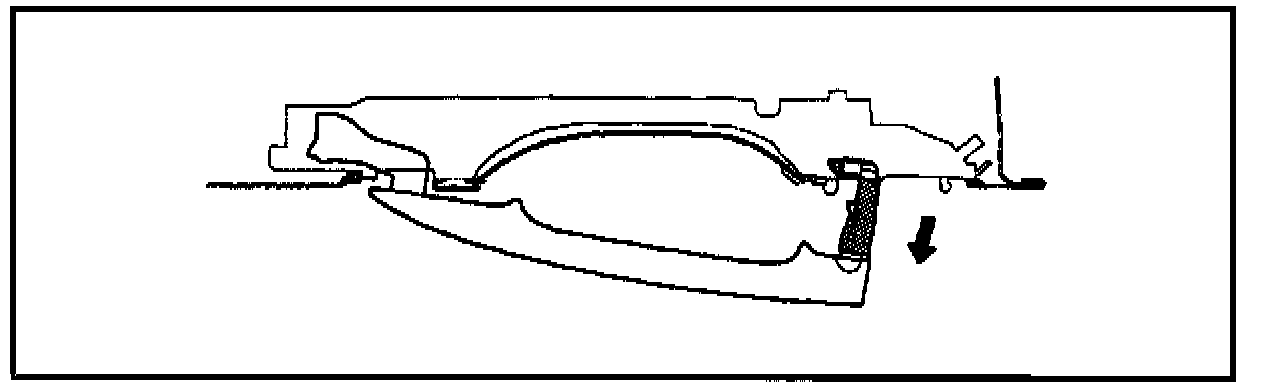

B. While checking that there is no interference between the body panel and the handle guide, slowly pull out the hooked portion.





C. Pull out the hinged portion and remove the handle.
