Canada - Interior - Precaution Rear Door Sunshade

Bulletin
0458

Issue Date
2001-05-21

Market
Canada

Reference
GI-01-018

Model
LS430

Year Range
2001 ~

Component
GI

Subject:
PRECAUTION FOR HANDLING OF REAR DOOR SUNSHADE

Caution should be used when raising and lowering the optional rear door sunshade on the 2001 model year LS430 during Pre-Delivery Service (PDS). If the rear door sunshade is used while the protective film on the rear door trim is present, the front part of the sunshade will fold when retracted.

APPLICABLE VEHICLES: 2001 model year LS430 vehicles.

REPAIR PROCEDURE:

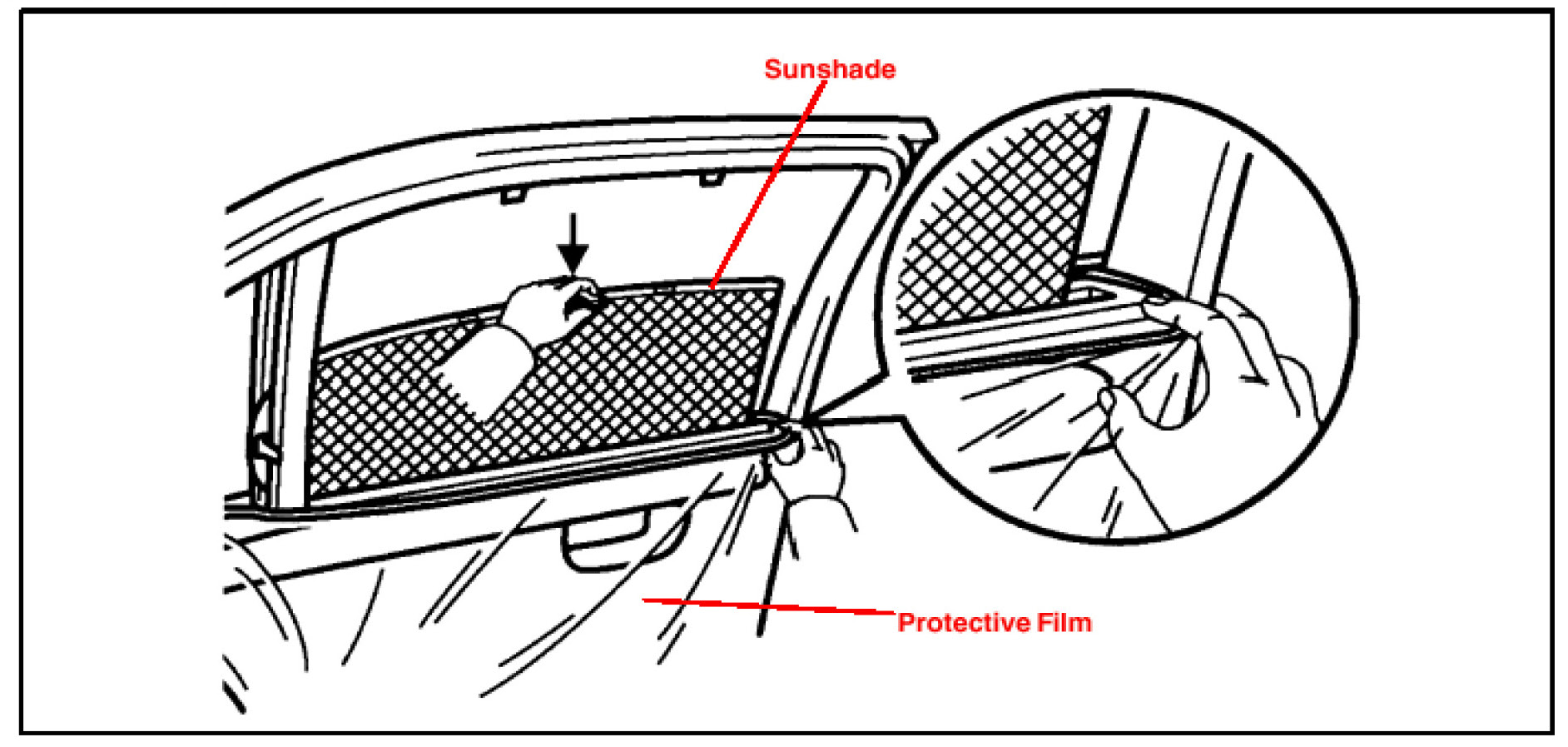

Pull the upper front portion of the protective film (as shown), so that it will not contact the front end of the rear door sunshade. This will prevent the rear door sunshade from folding when retracted.

NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
