Fuel Door Release Actuator: Testing and Inspection

INSPECT FUEL LID OPENER MOTOR OPERATION

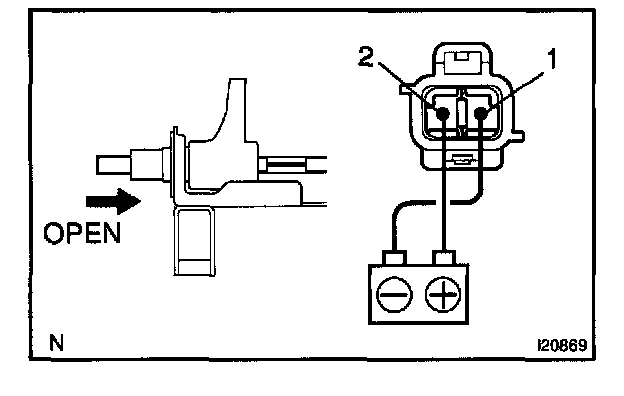

a. Connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 1.
b. Check that the motor operates in the open direction. If operation is not as specified, replace the motor.
