Door Locks - New Lock Wire Design

BODY
BO003-02

May 16, 2002

Title:
DOOR LOCK HANDLE

MODELS:
'01 LS 430

Introduction





A new door lock wire has been developed to improve interior door handle feeling.

Applicable Vehicles
^ 2001 model year LS 430 vehicles produced before the VIN shown below.

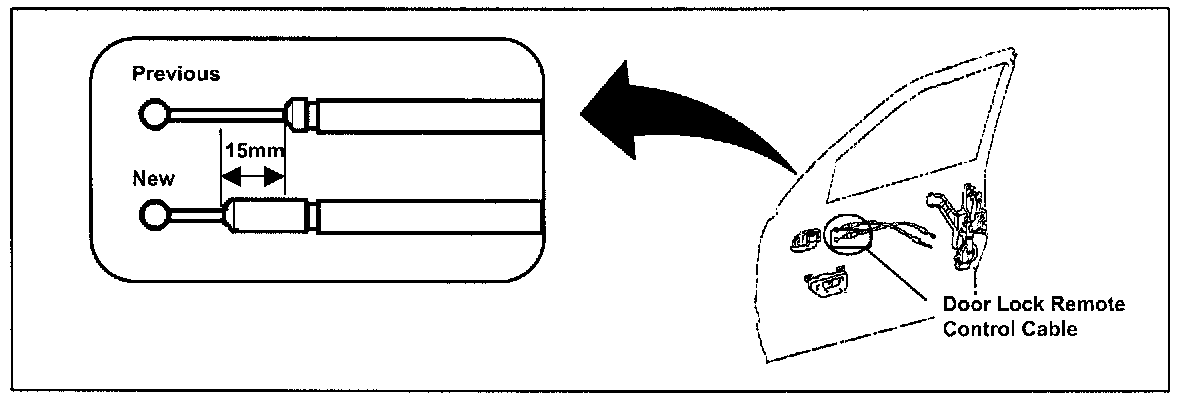

Production Change Information

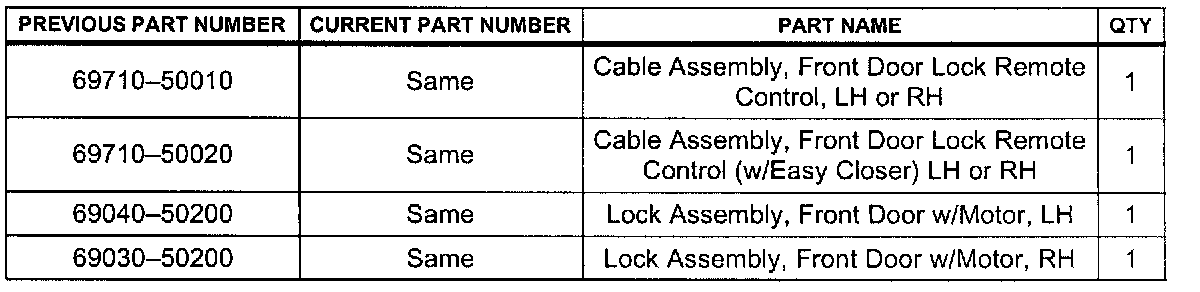

Parts Information

Repair Procedure

If the door lock handle requires replacement, refer to 2001 LS 430 Repair Manual page Procedure BO-21 - BO-26

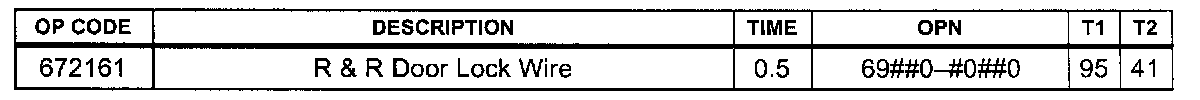

Warranty Information

Applicable Warranty*:

This repair is covered under the Lexus Comprehensive Warranty. This warranty is in effect for 48 months or 50,000 miles, whichever occurs first, from the vehicle's in-service date.

* Warranty application is limited to correction of a problem based upon a customer's specific complaint.
