Driver Door Control System
Driver Door Control System

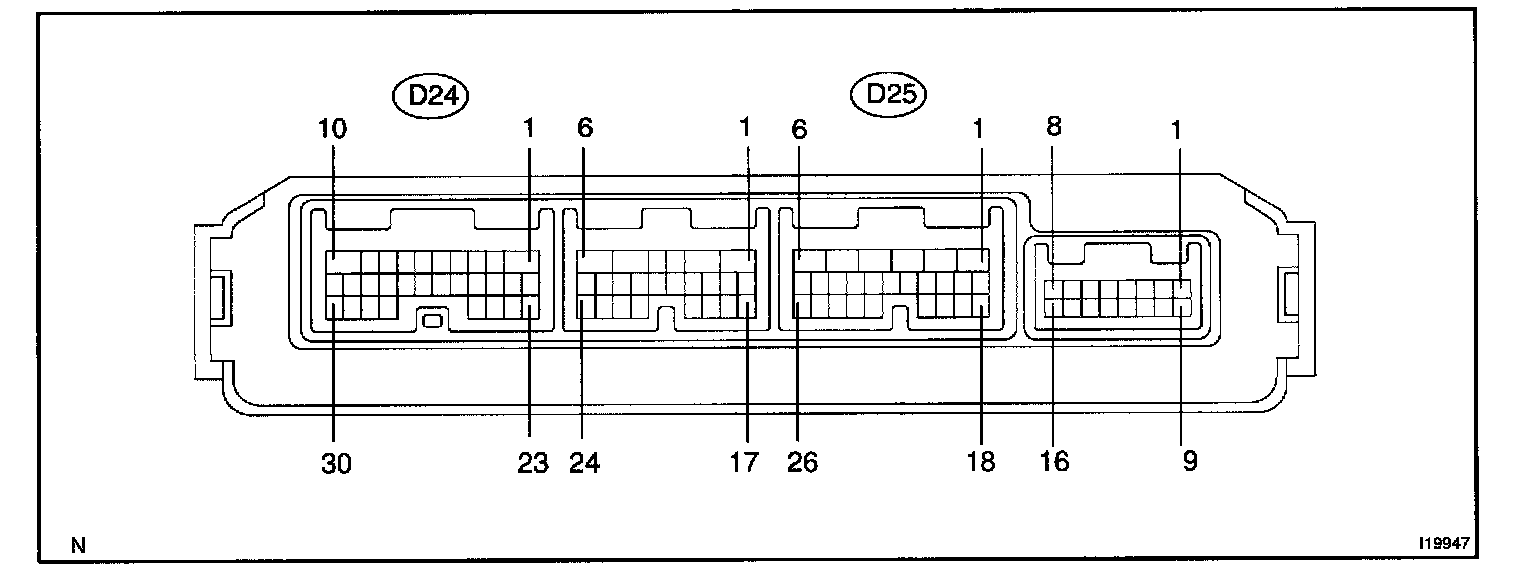

Terminals Of ECU - Connector View:

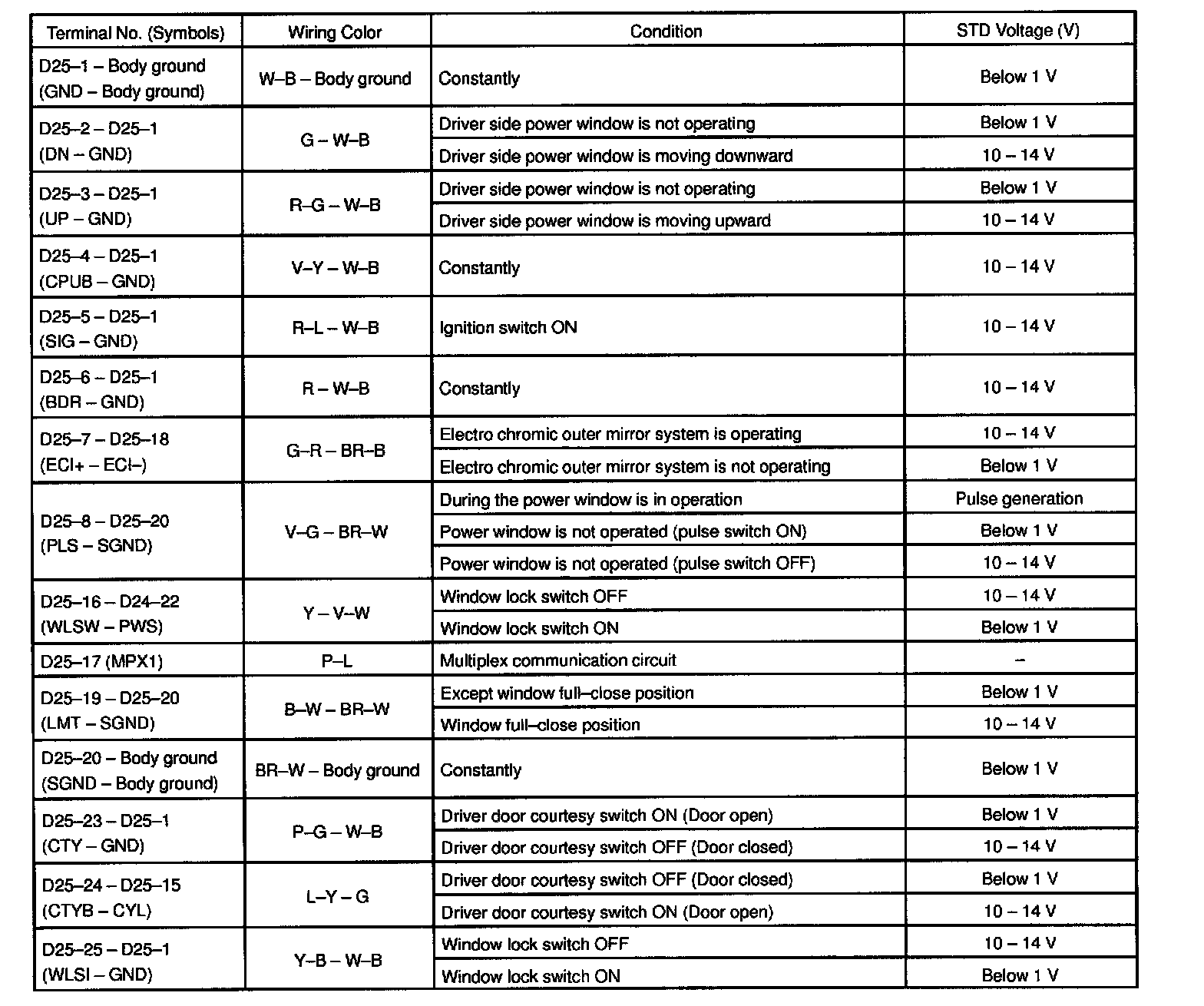

Terminals Of ECU - Pinouts (Part 1):

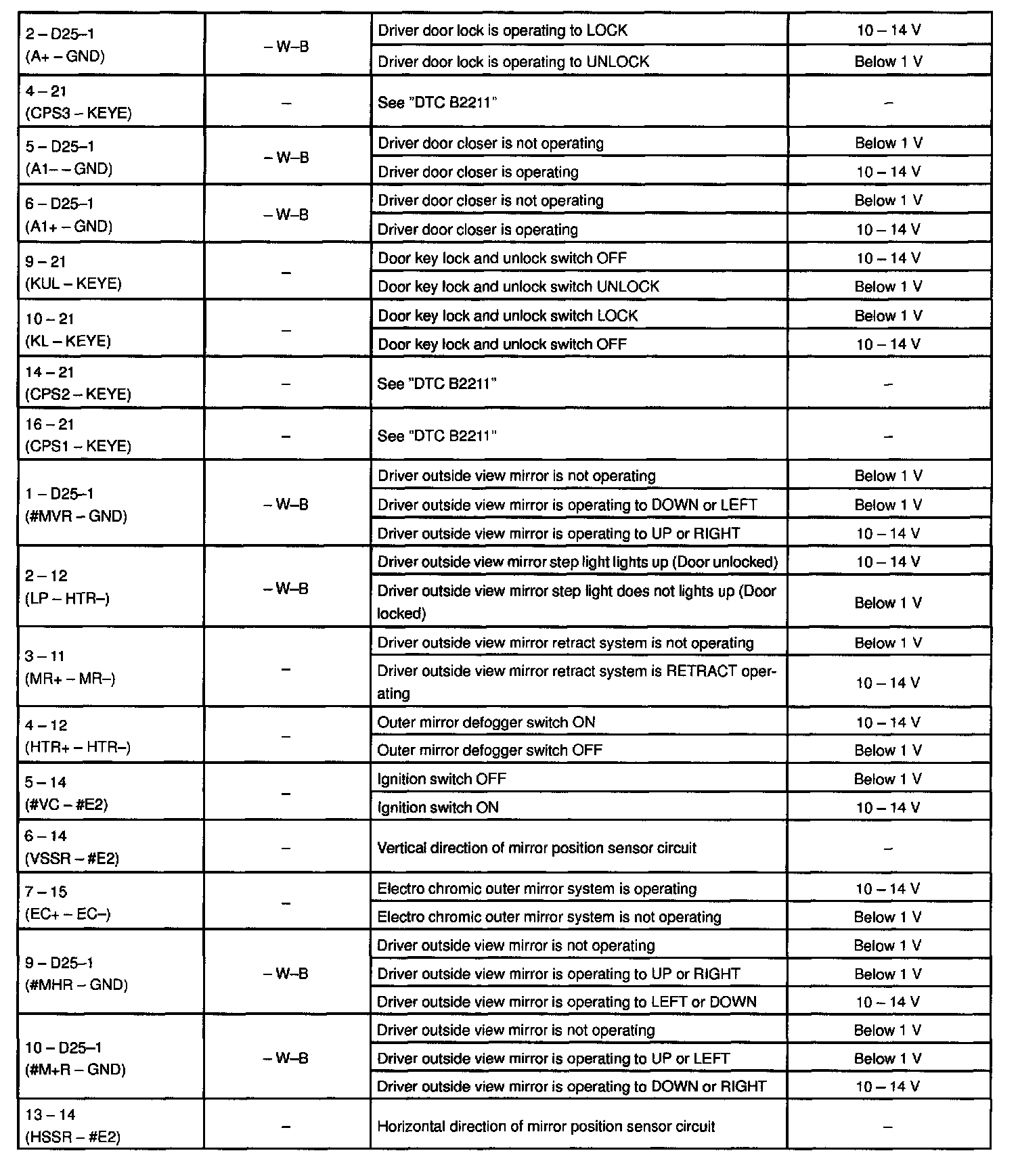

Terminals Of ECU - Pinouts (Part 2):

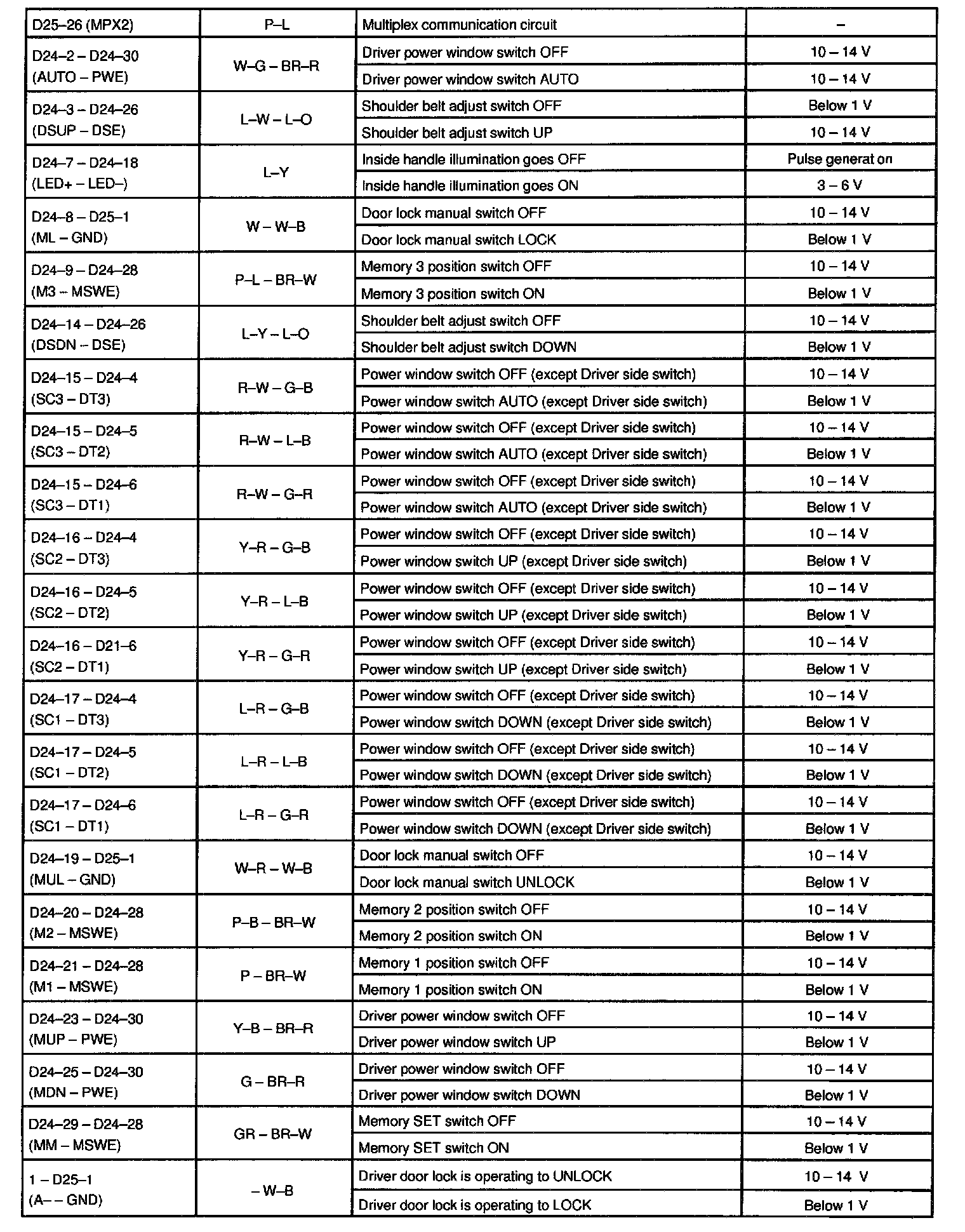

Terminals Of ECU - Pinouts (Part 3):
