Power Window Switch Circuit

CIRCUIT DESCRIPTION

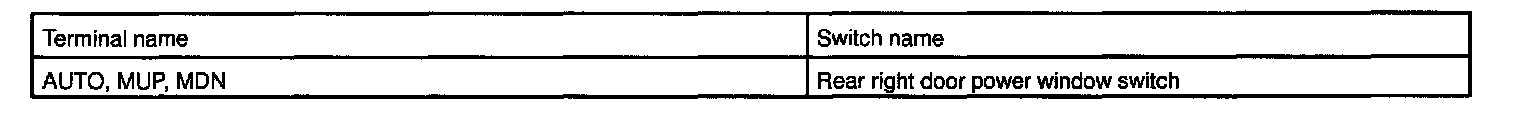

Each terminal sends the following information to Rear door RH ECU.

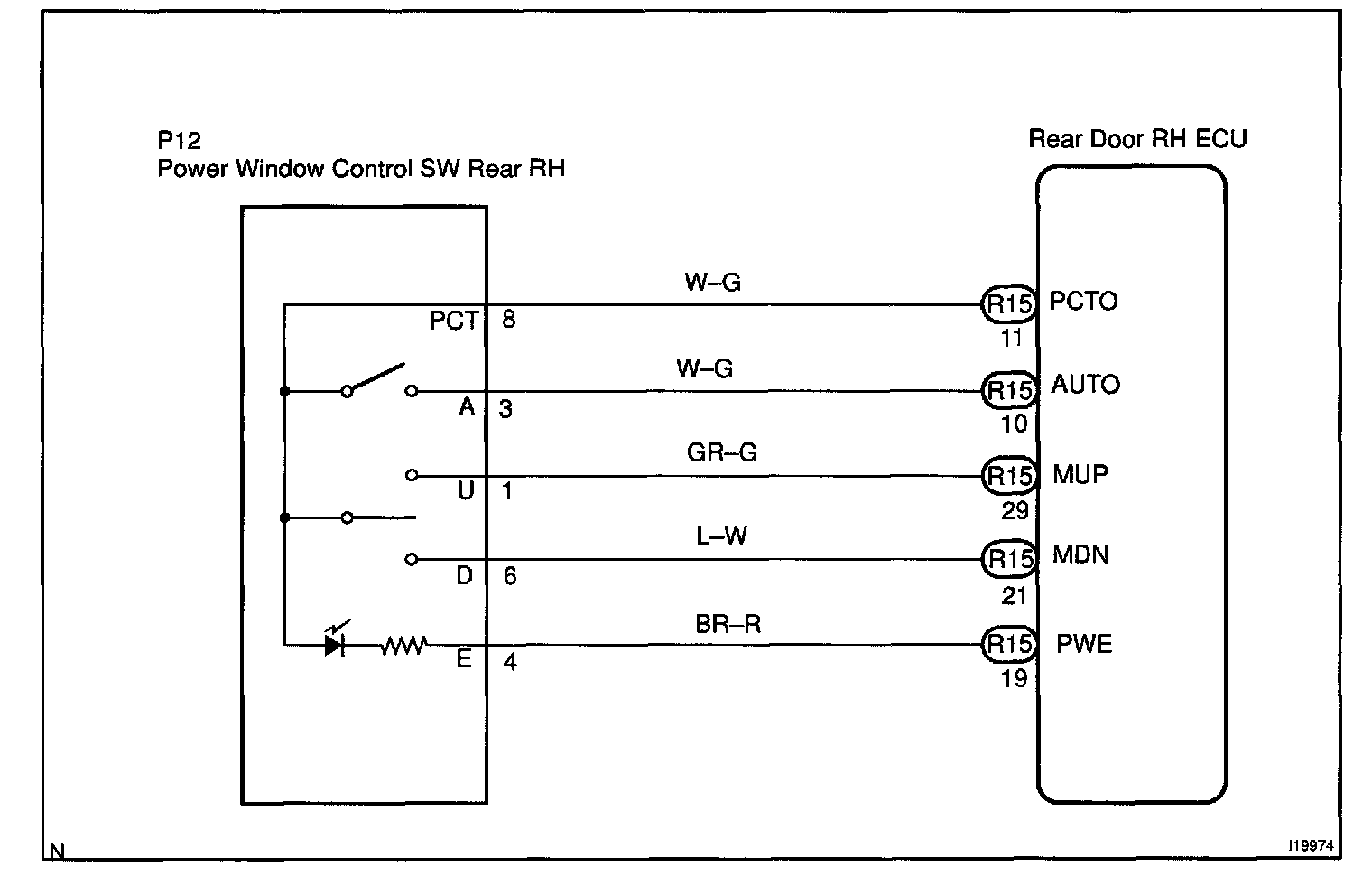

Wiring Diagram:

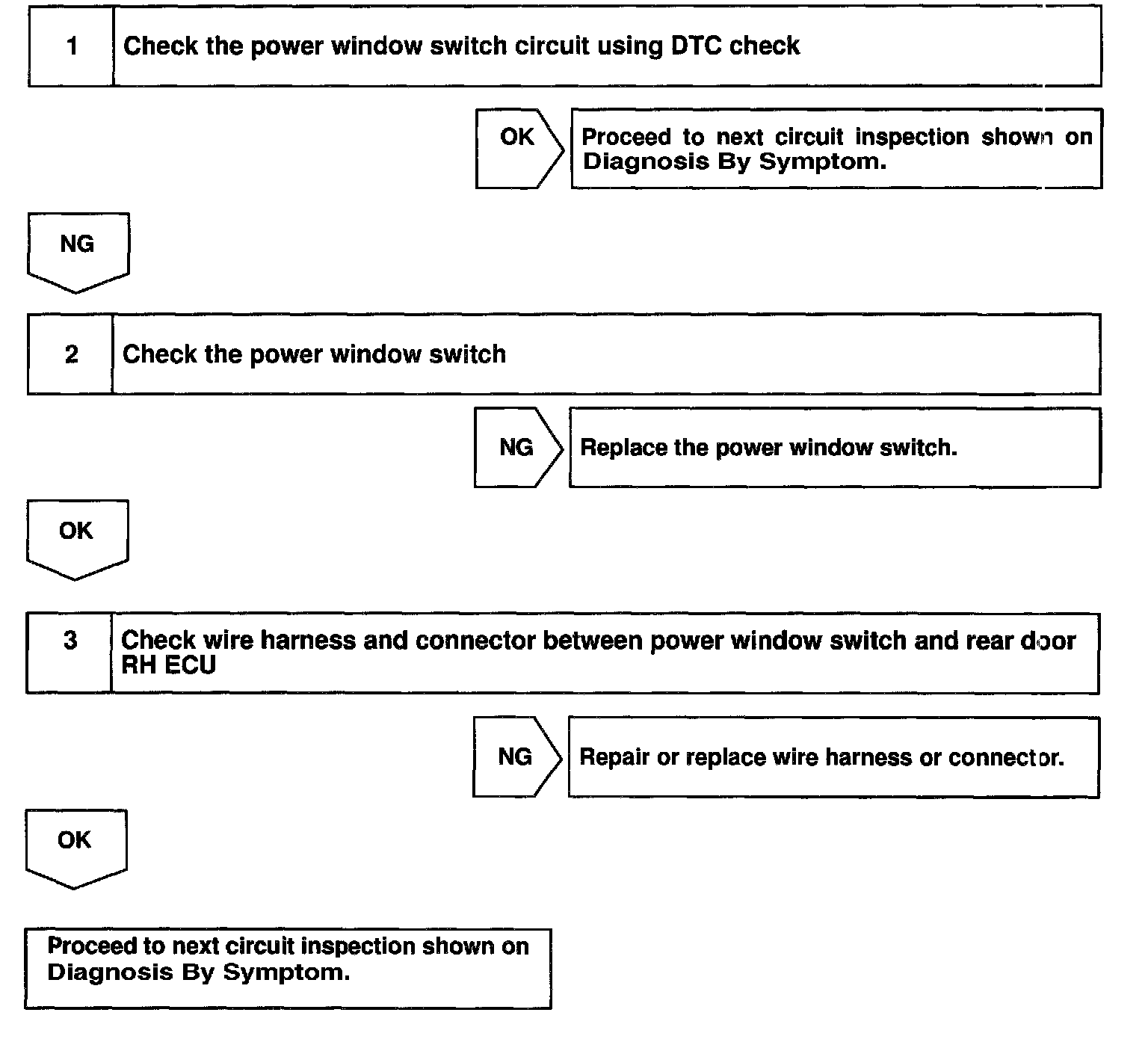

Steps 1 - 3:

INSPECTION PROCEDURE
