Power Source Circuit

CIRCUIT DESCRIPTION

This circuit supplies power to operate the rear door LH ECU.

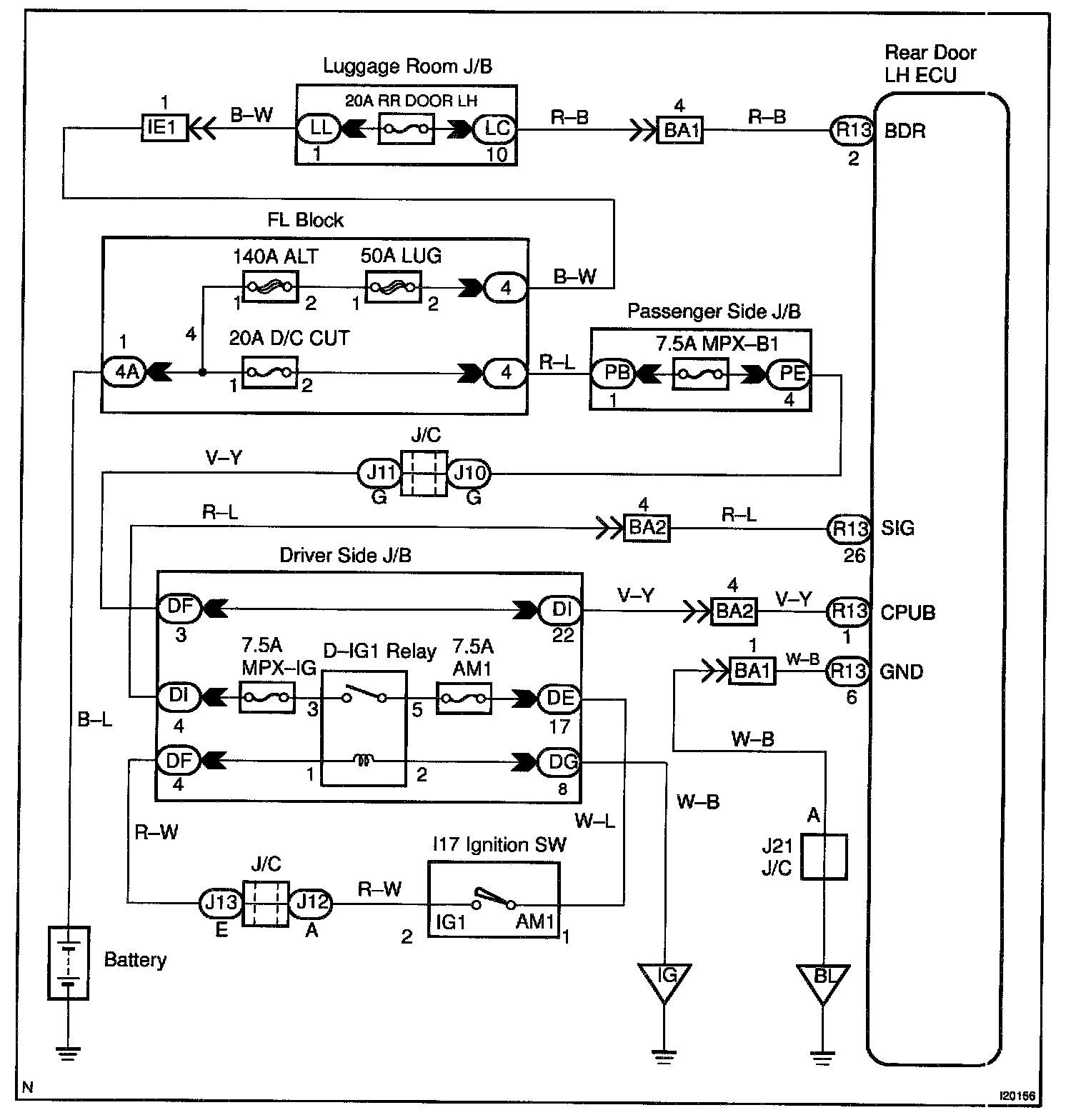

Wiring Diagram:

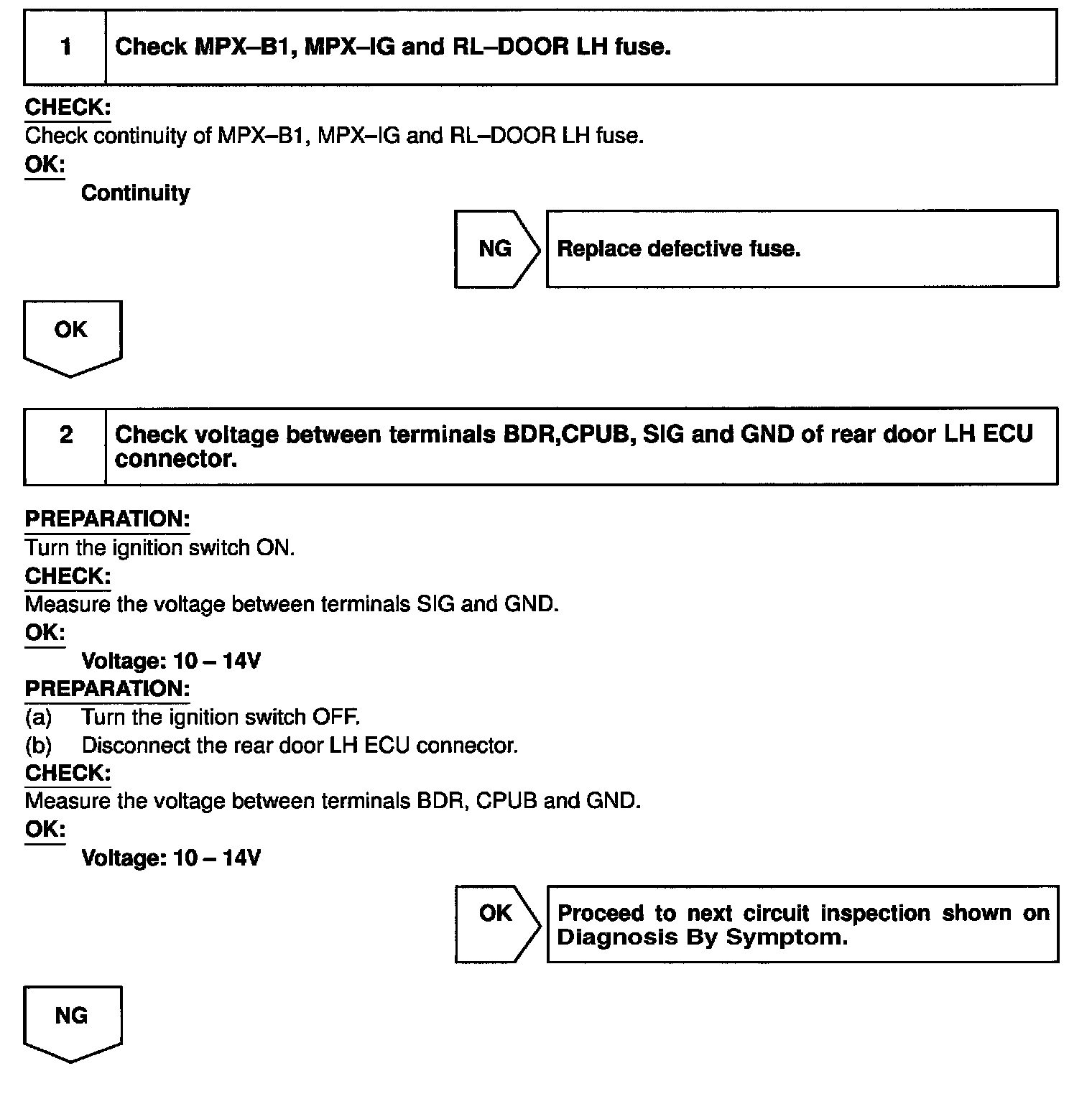

Steps 1 - 2:

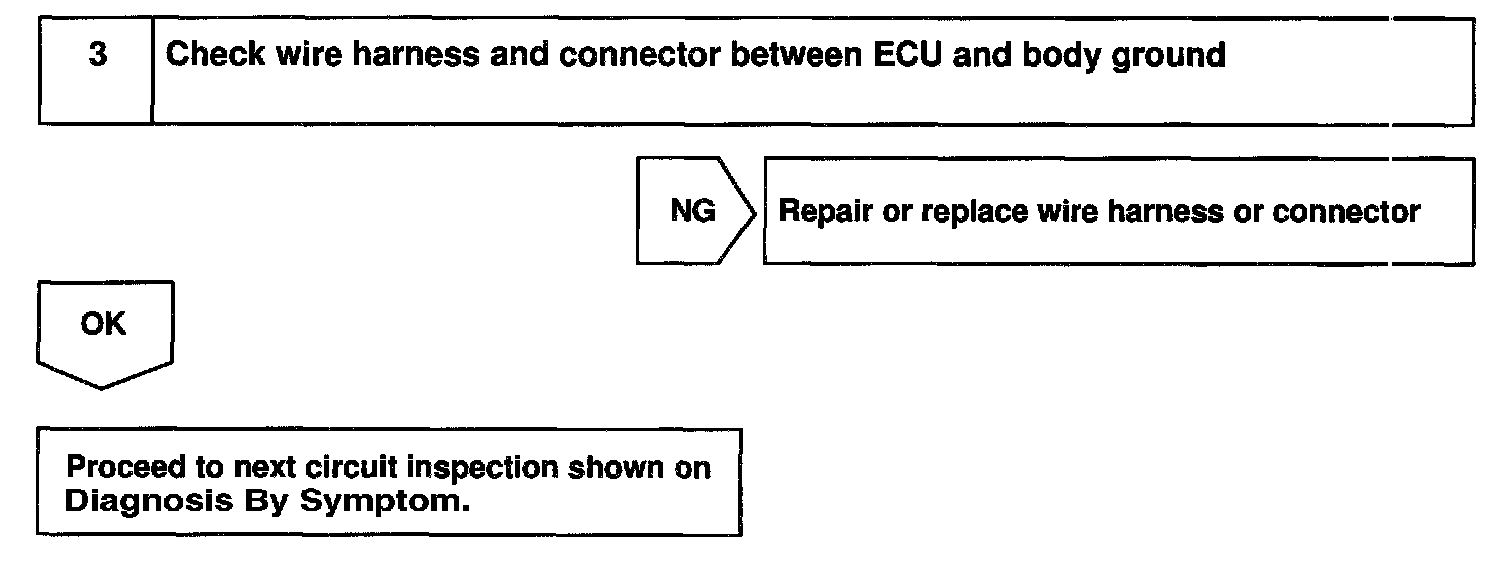

Step 3:




INSPECTION PROCEDURE
