Ashtray Light Circuit

CIRCUIT DESCRIPTION

The ashtray illumination goes on when the ashtray lid is open and goes off when closed.

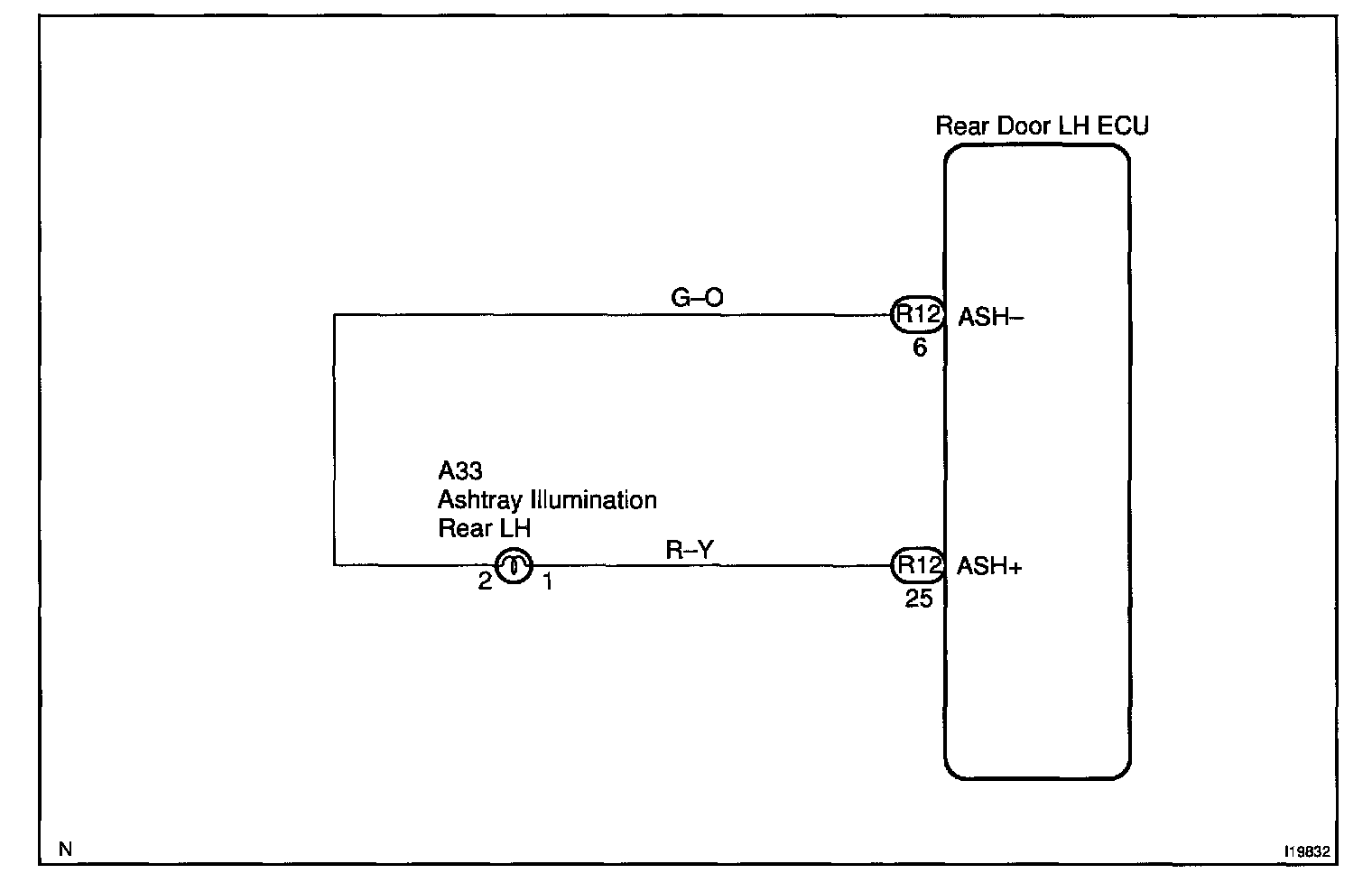

Wiring Diagram:

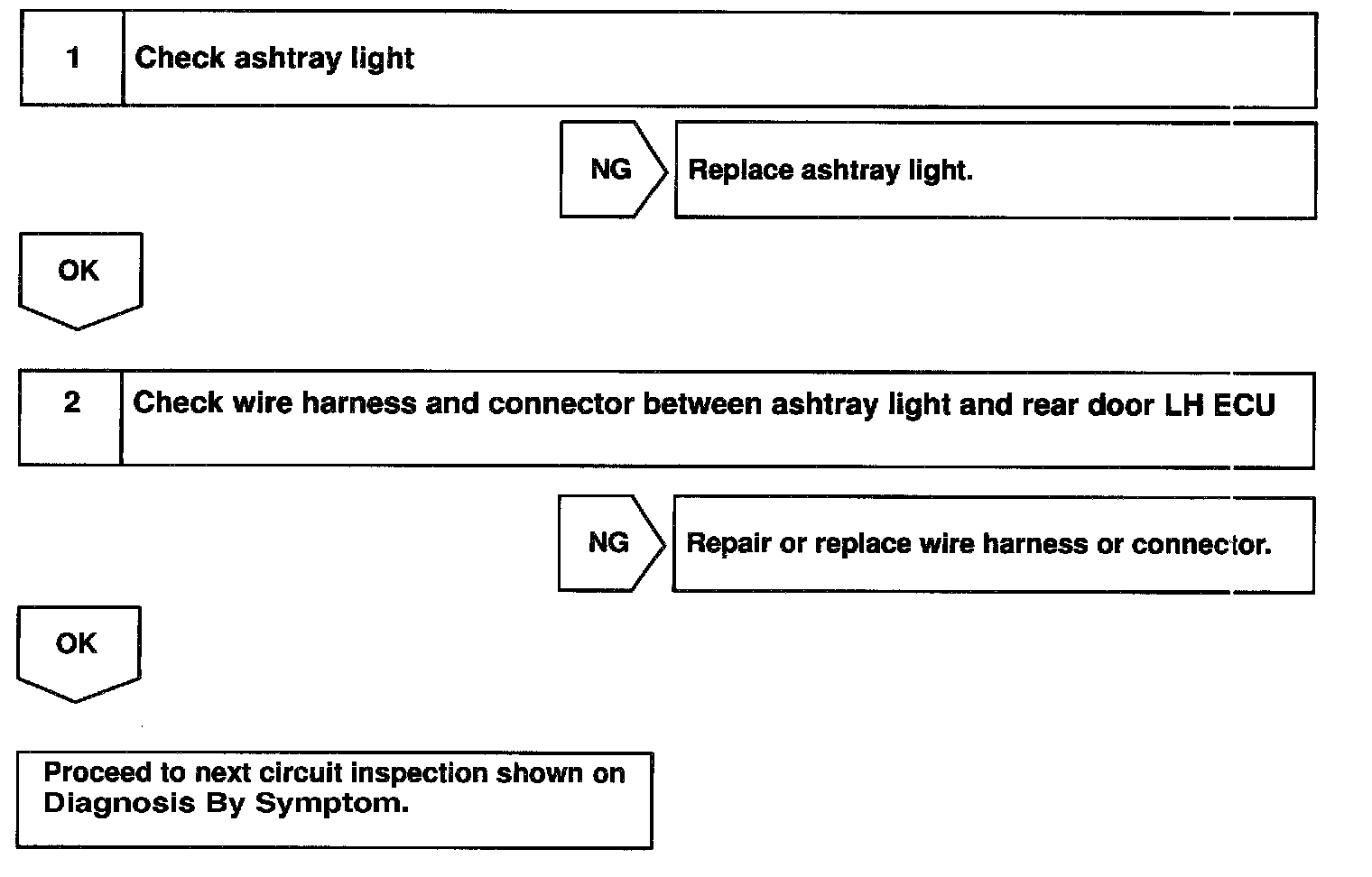

Steps 1 - 2:




INSPECTION PROCEDURE
