Power Window Motor Circuit

CIRCUIT DESCRIPTION

The passenger door ECU receives the passenger door power window switch signal from the master switch to operate the power window motor.

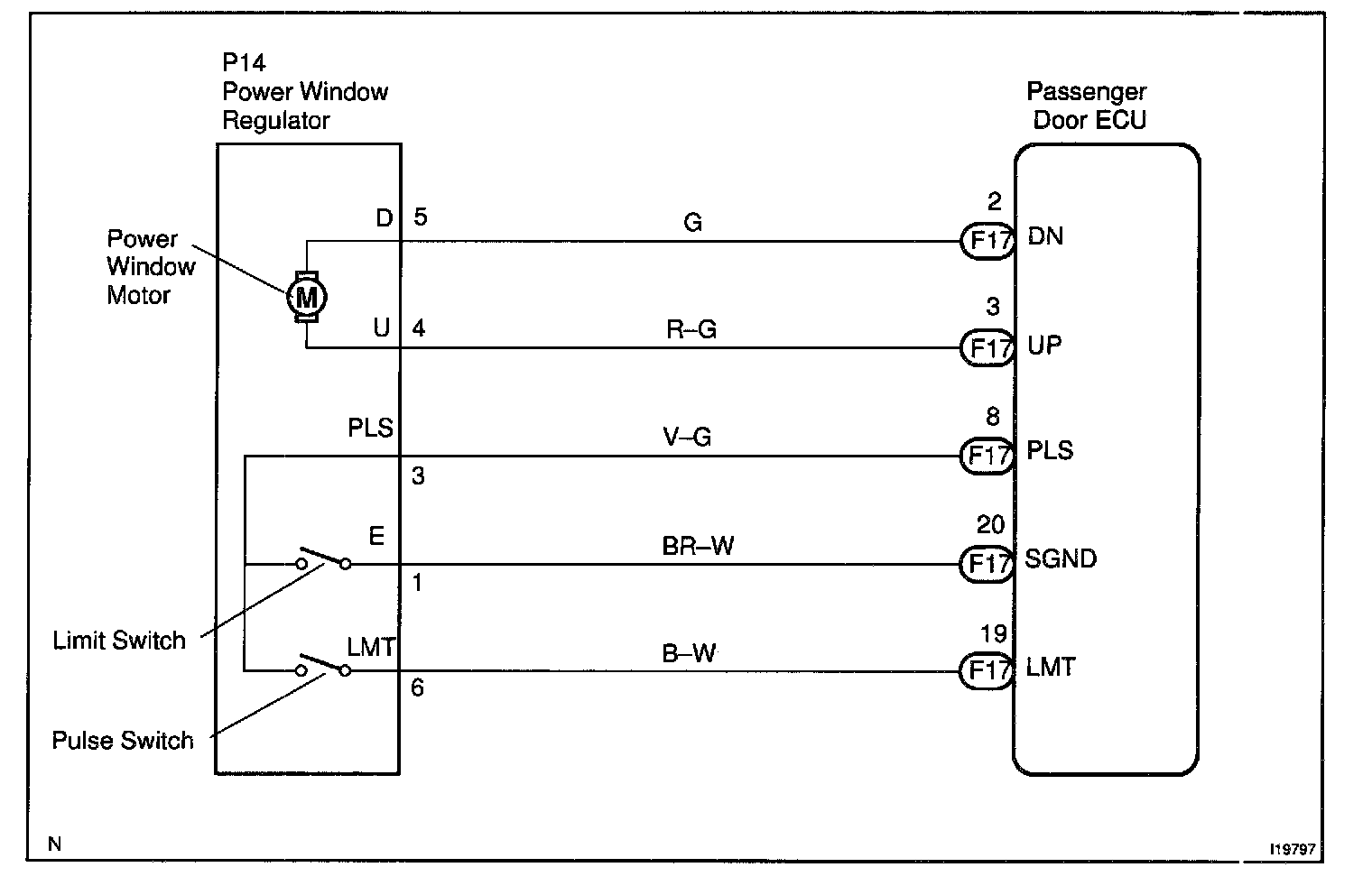

Wiring Diagram:

Steps 1 - 3:

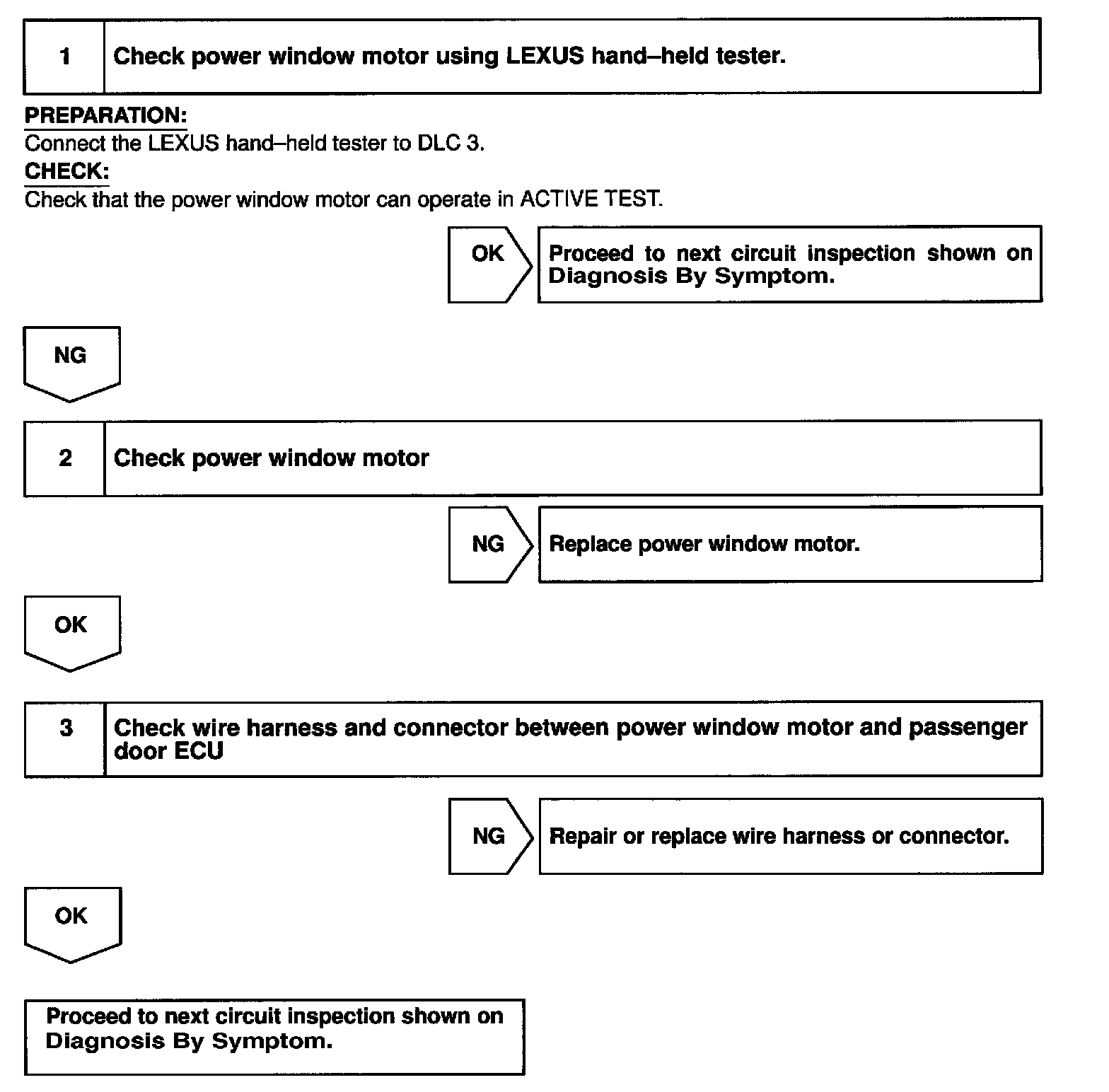

INSPECTION PROCEDURE

HINT: In case of using the LEXUS hand-held tester, start the inspection from step 1 and in case of not using the LEXUS hand-held tester, start from step 2.
