Outer Foot Light Circuit

CIRCUIT DESCRIPTION

The outer foot light is built in the outer mirror assembly.

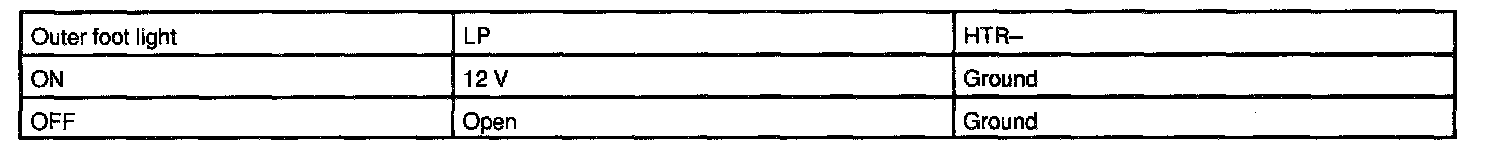

When the battery voltage is applied to the terminal as follows, the outer foot light functions accordingly.

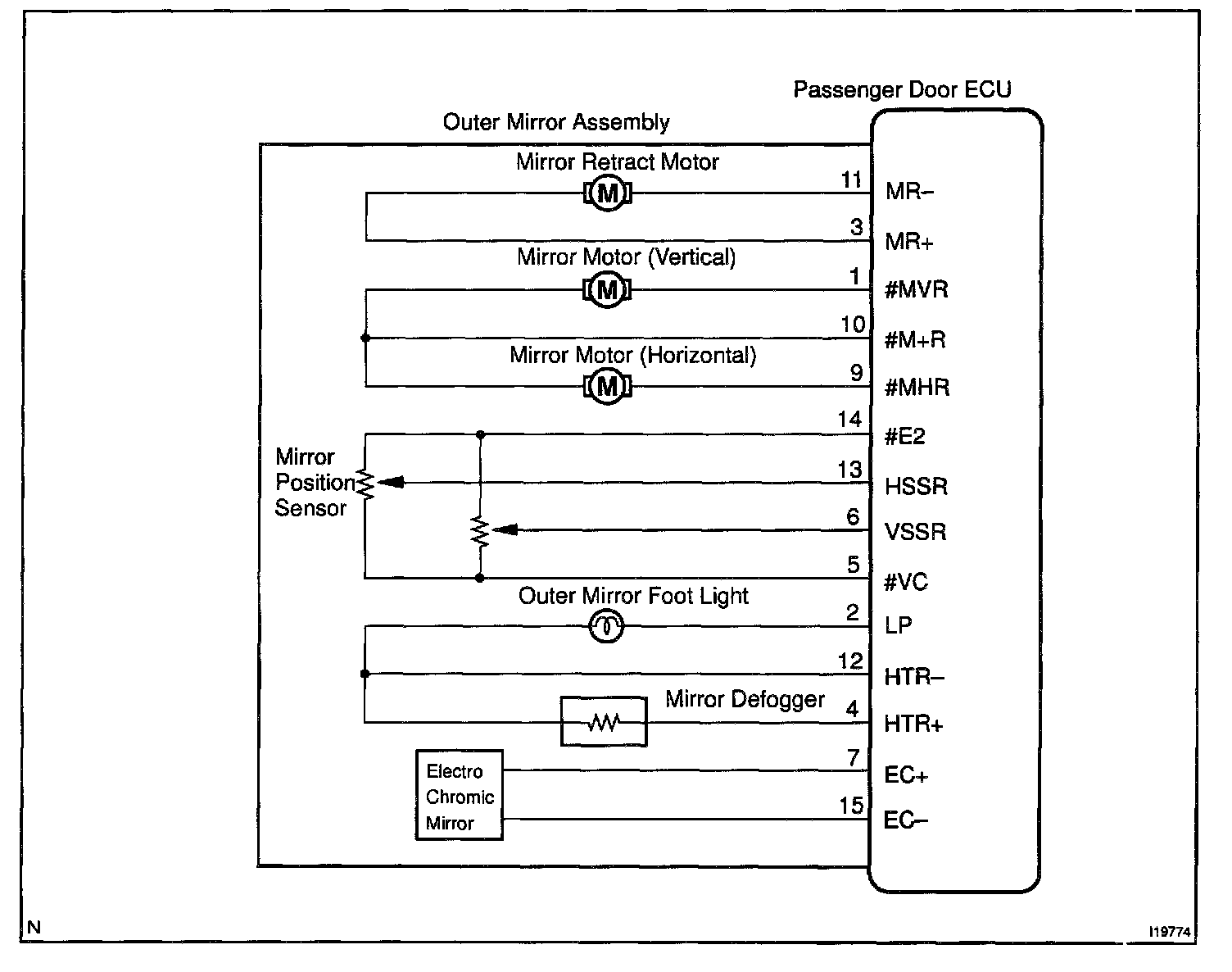

Wiring Diagram:

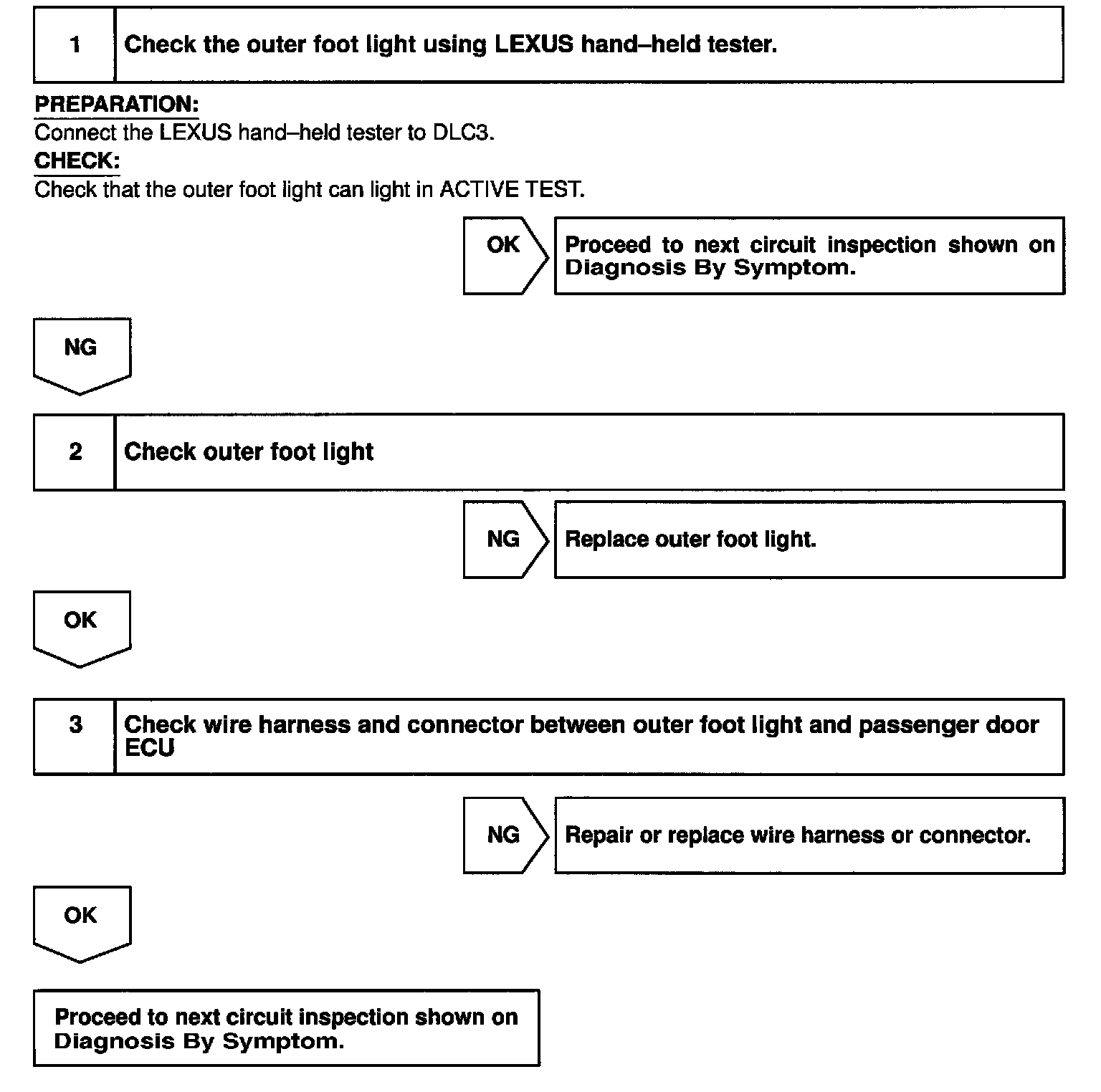

Steps 1 - 3:

INSPECTION PROCEDURE

HINT: In case of using the LEXUS hand-held tester, start the inspection from foot 1 and in case of not using the LEXUS hand-held tester, start from foot 2.
