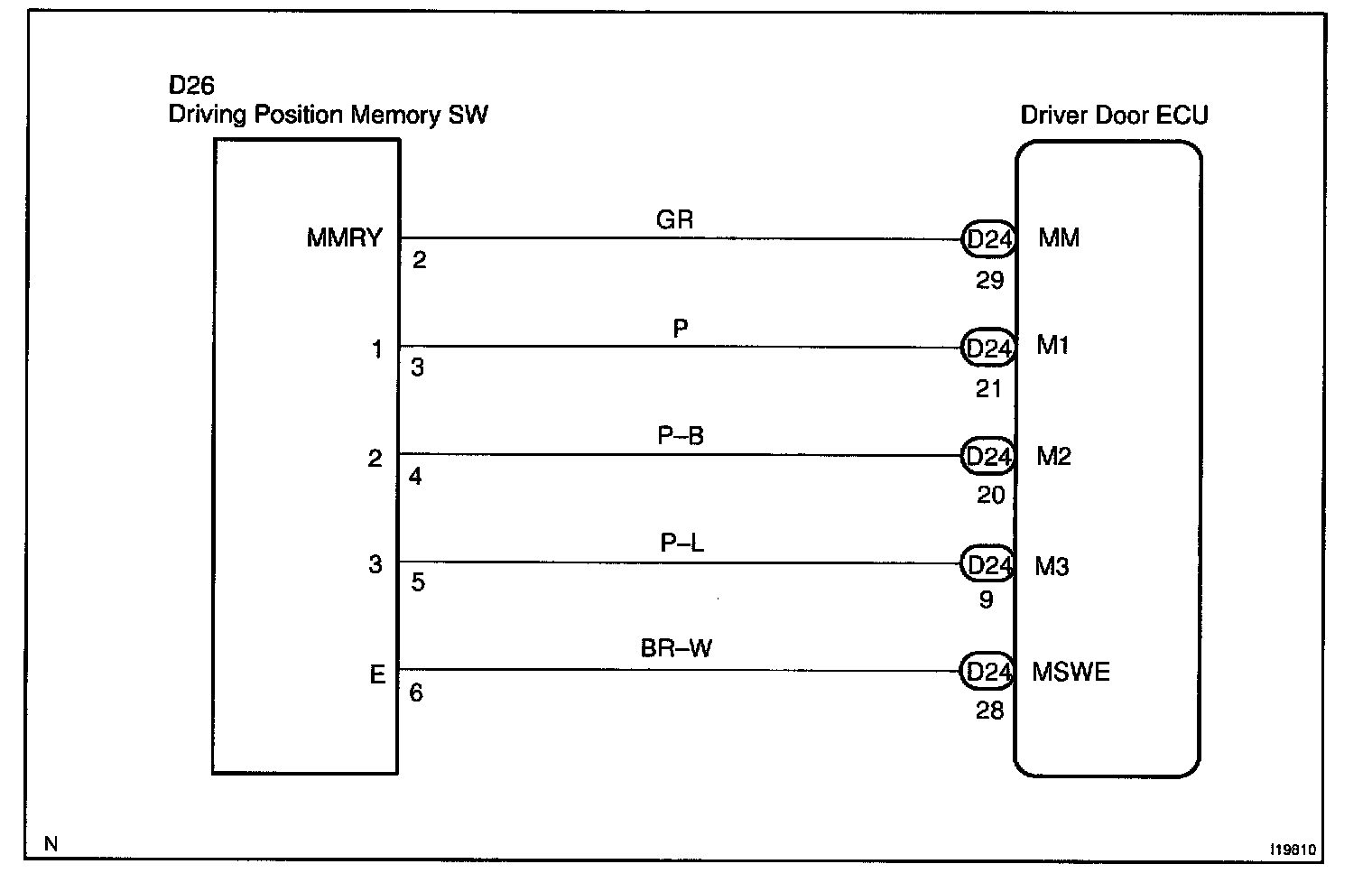

Driving Position Memory Switch Circuit (W/ Memory)

CIRCUIT DESCRIPTION

The driver door ECU detects the condition of the driving memory switch and sends the information to the power seat ECU and the tilt and telescopic ECU via the multiplex communication circuit
