Home >> Lexus >> 2001 >> LS 430 V8-4.3L (3UZ-FE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Diagnostic Procedures >> 12 - Turning Light Control Switch Does Not Light Up Radio

12 - Turning Light Control Switch Does Not Light Up Radio

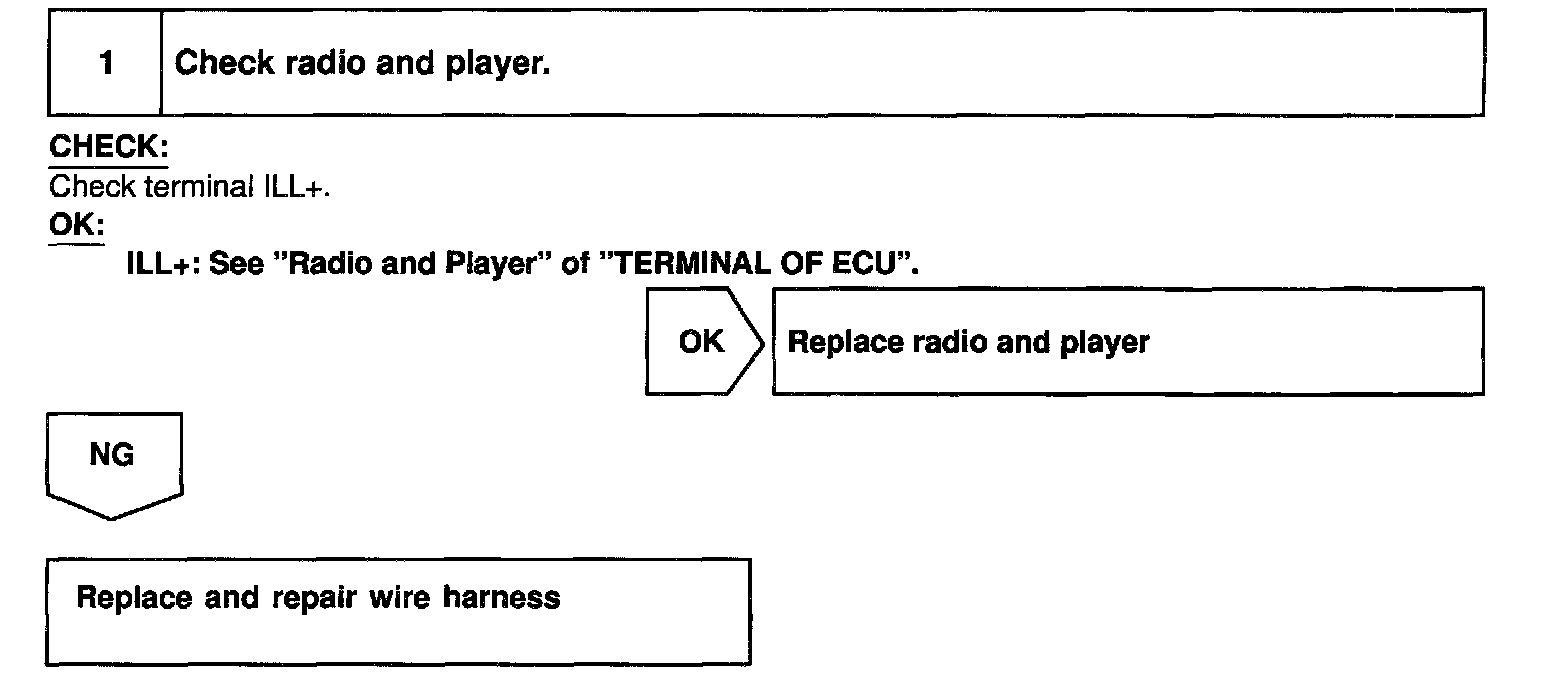

Step 1:




INSPECTION PROCEDURE
