Home >> Lexus >> 2001 >> LS 430 V8-4.3L (3UZ-FE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Diagnostic Procedures >> 02 - Radio and Player Cannot Be Powered

02 - Radio and Player Cannot Be Powered

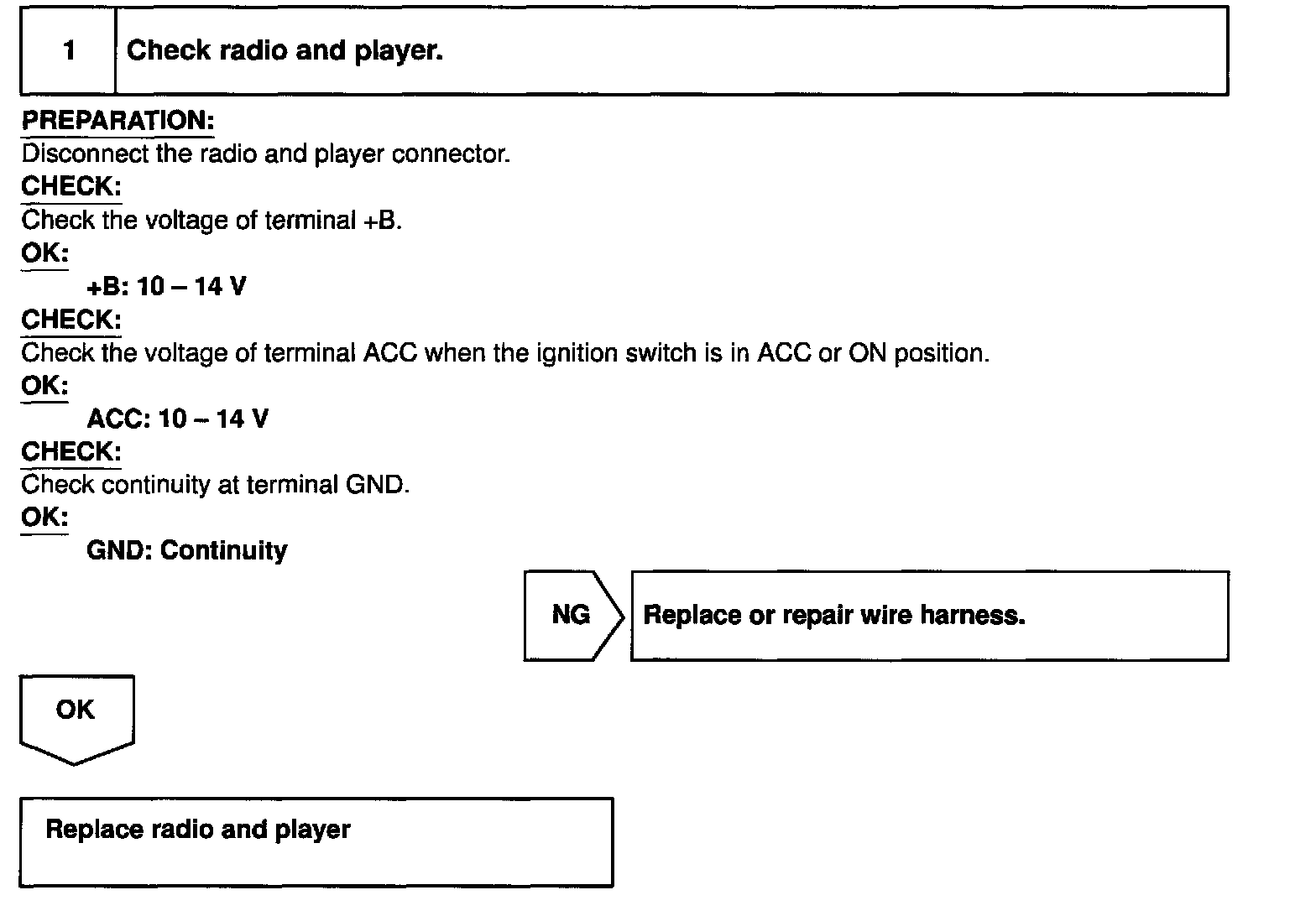

Step 1:




INSPECTION PROCEDURE
